DTC P0108: Manifold Absolute Pressure Circuit High Input: Wiring Diagram

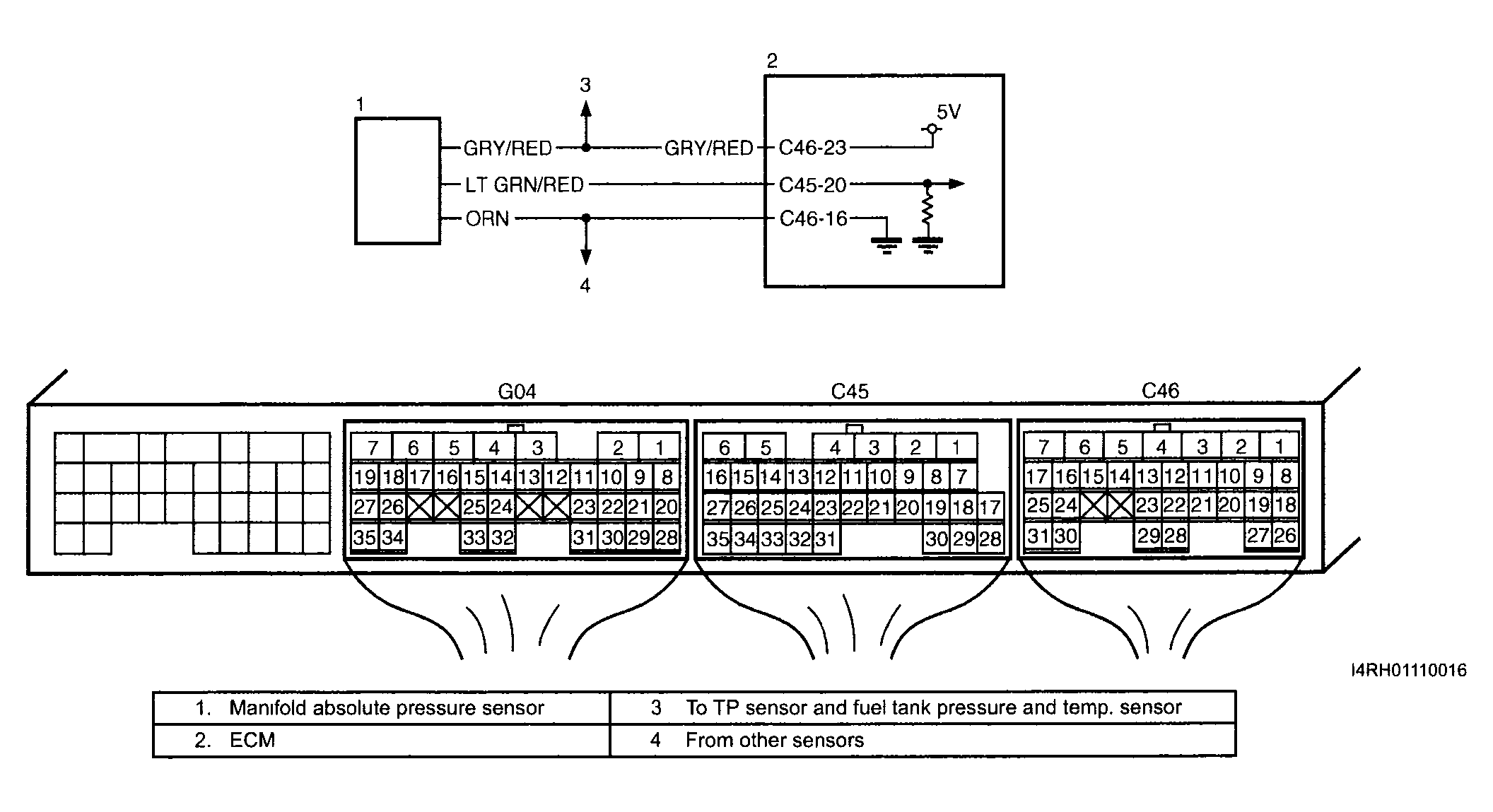

Fig 1: DTC P0108 - Wiring Diagram (Manifold Absolute Pressure Circuit High Input)
G04013688Courtesy of SUZUKI OF AMERICA CORP.
