Engine and Emission Control System Hose and Piping Location

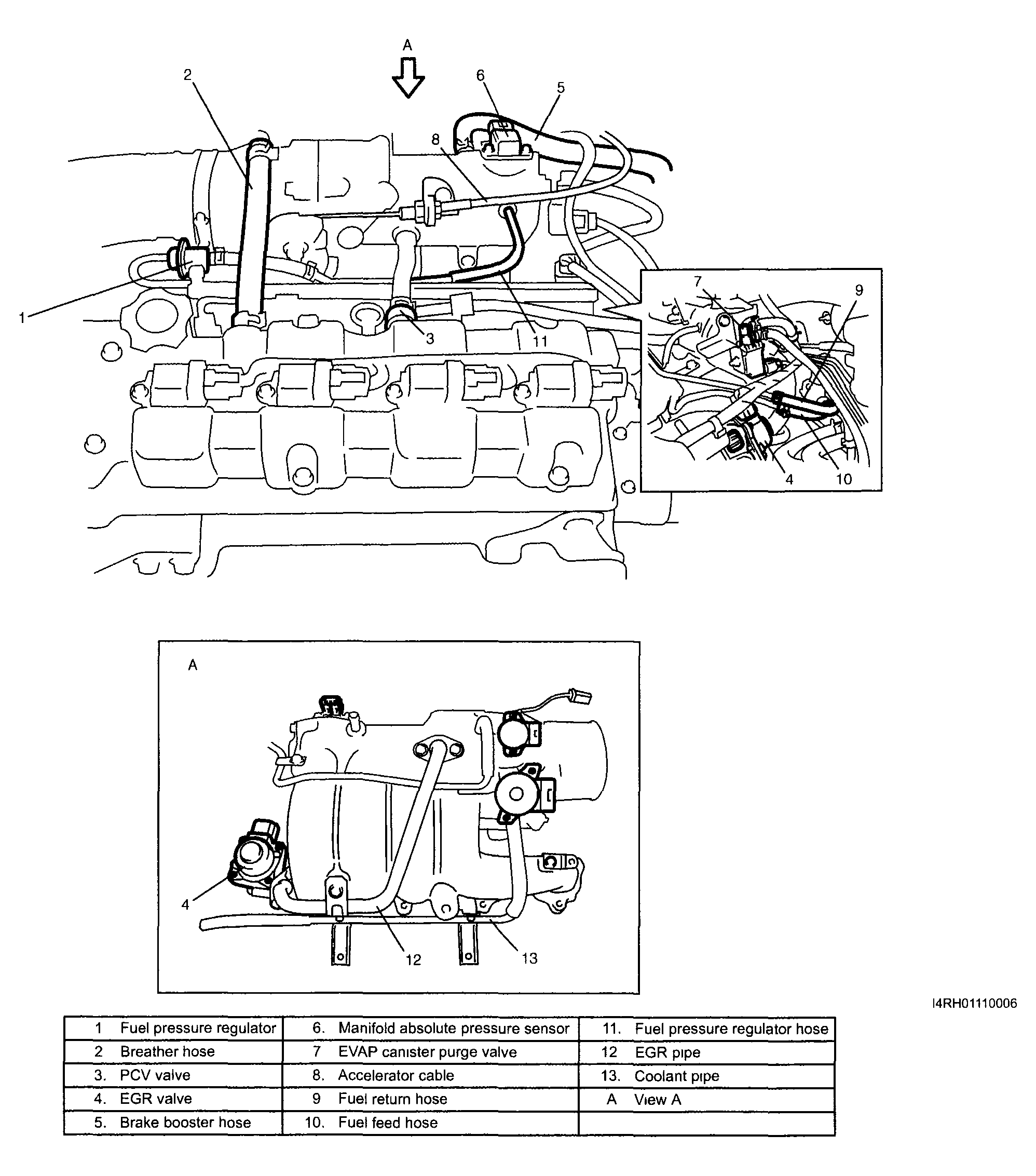

Fig 1: Locating Engine And Emission Control System Hose And Piping Location
G04013672Courtesy of SUZUKI OF AMERICA CORP.
