A/C Signal Circuits Check (Vehicle with A/C): Wiring Diagram

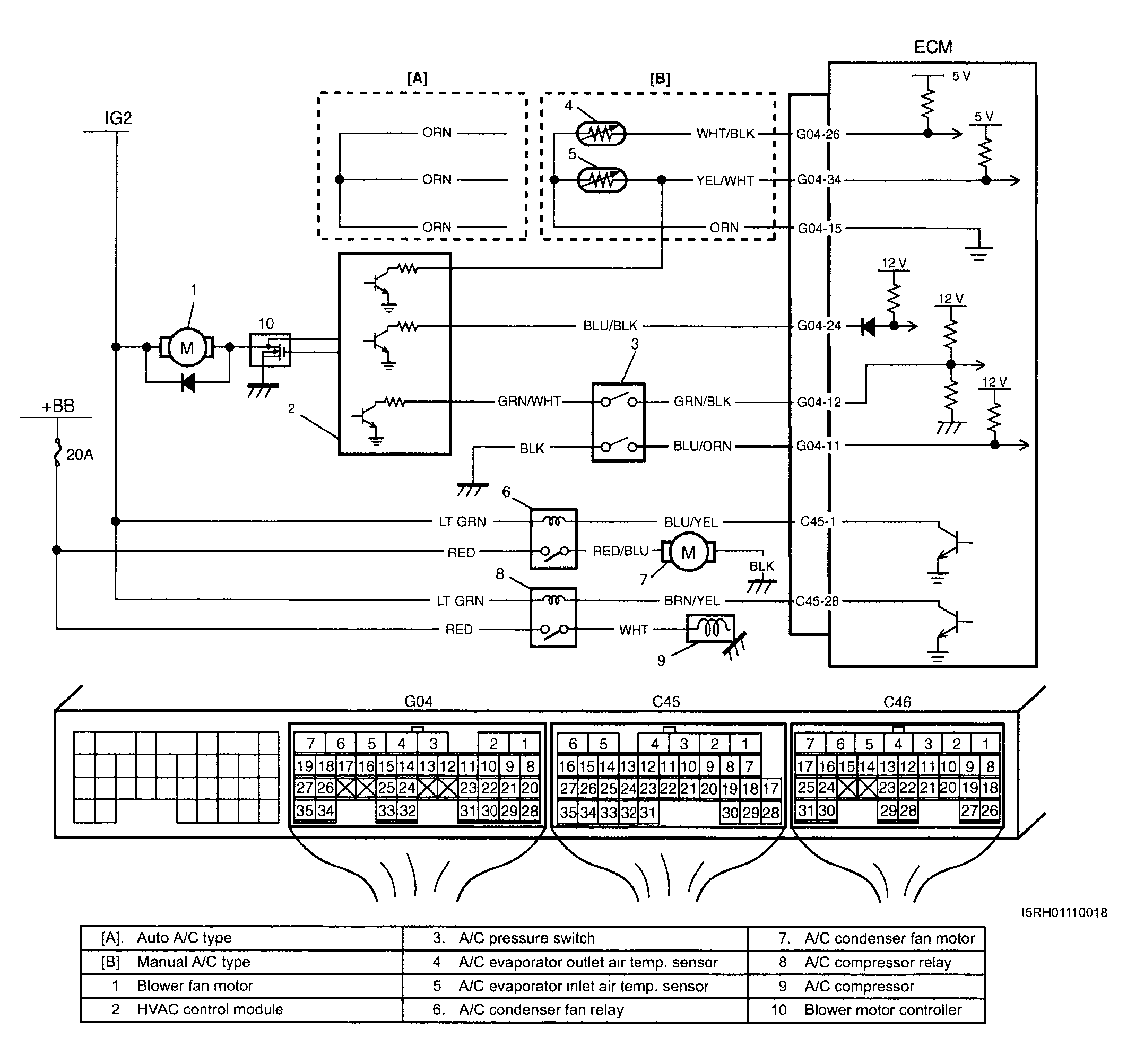

Fig 1: A/C Signal Circuits - Wiring Diagram
G04013822Courtesy of SUZUKI OF AMERICA CORP.
