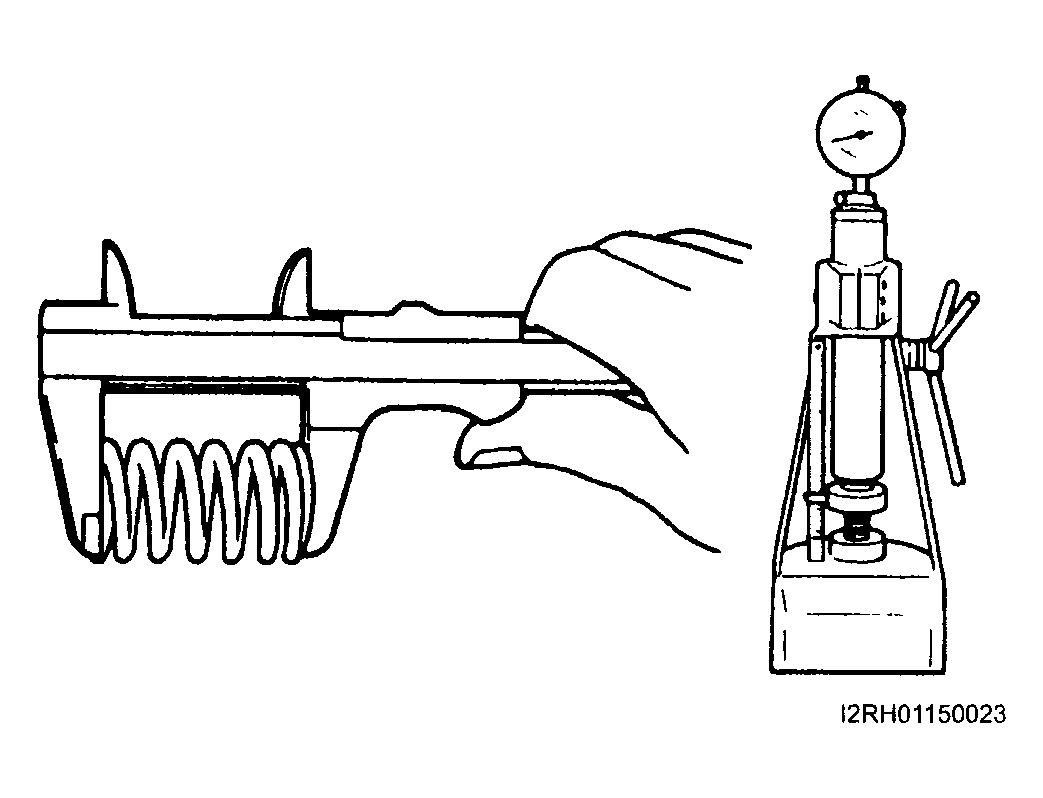

Oil Relief Spring
OIL RELIEF SPRING SPECIFICATION
| Item |
Standard |
| Spring free length |
63.5 mm (2.5 in.) |
| Spring preload |
85.0 N for 52.0 mm (8.5 kg for 52.0 mm, 19.0 lb/2.05 in.) |
Courtesy of SUZUKI OF AMERICA CORP.
- Measure clearance of oil pump rotor and oil pump case.
