Radiator Removal and Installation: Removal
- Disconnect negative cable at battery.
- Drain cooling system by loosening drain plug of radiator.
- Disconnect connector of cooling fan motor.
- Remove condenser cooling fan (if equipped with A/ C).

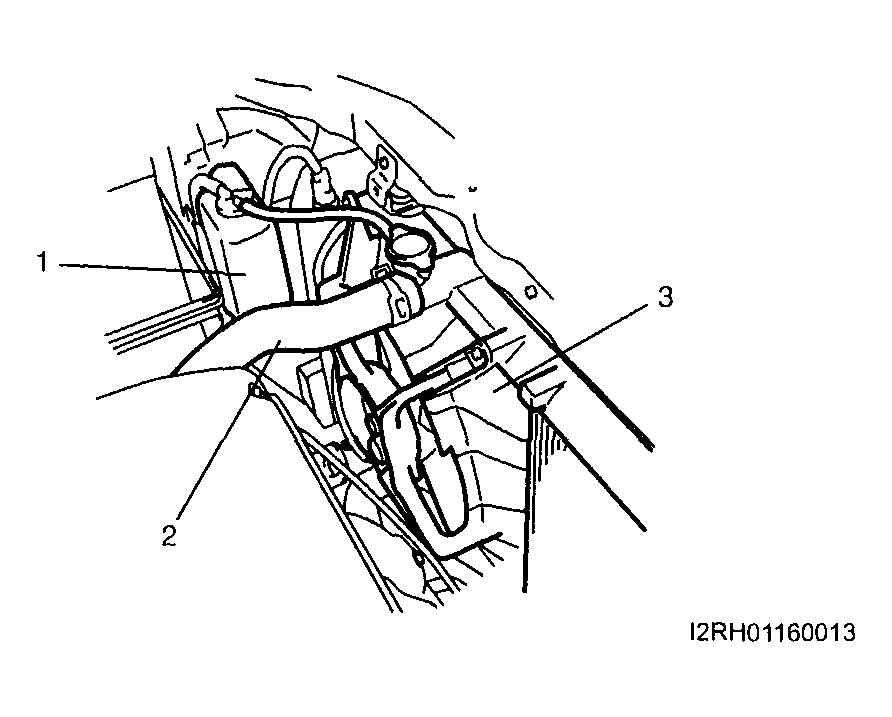

- Remove reservoir (1).
- Disconnect radiator inlet (2) and outlet hoses from radiator.
- Disconnect A/T fluid hoses from radiator, if equipped with A/T vehicle.
- Remove radiator cooling fan assembly (3).
- Remove radiator.
