Starting Motor Inspection: Gears

Inspect the internal gear and the planetary gears for wear, damage or other abnormal conditions. Replace if necessary.

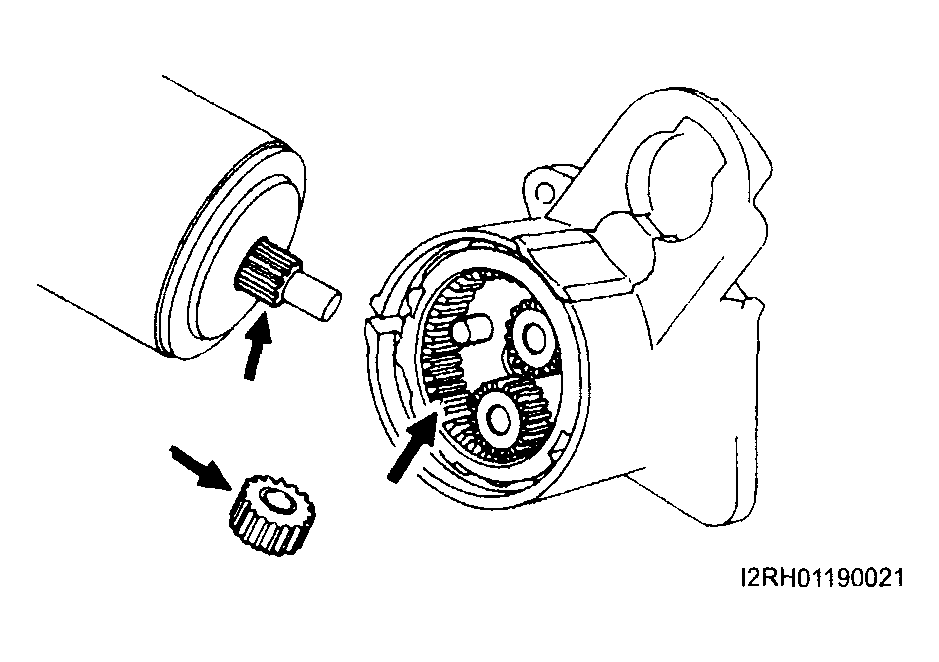

Fig 1: Inspecting Internal Gear And Planetary Gears For Wear And Damage

Courtesy of SUZUKI OF AMERICA CORP.
