Oil Pressure Switch On-Vehicle Inspection

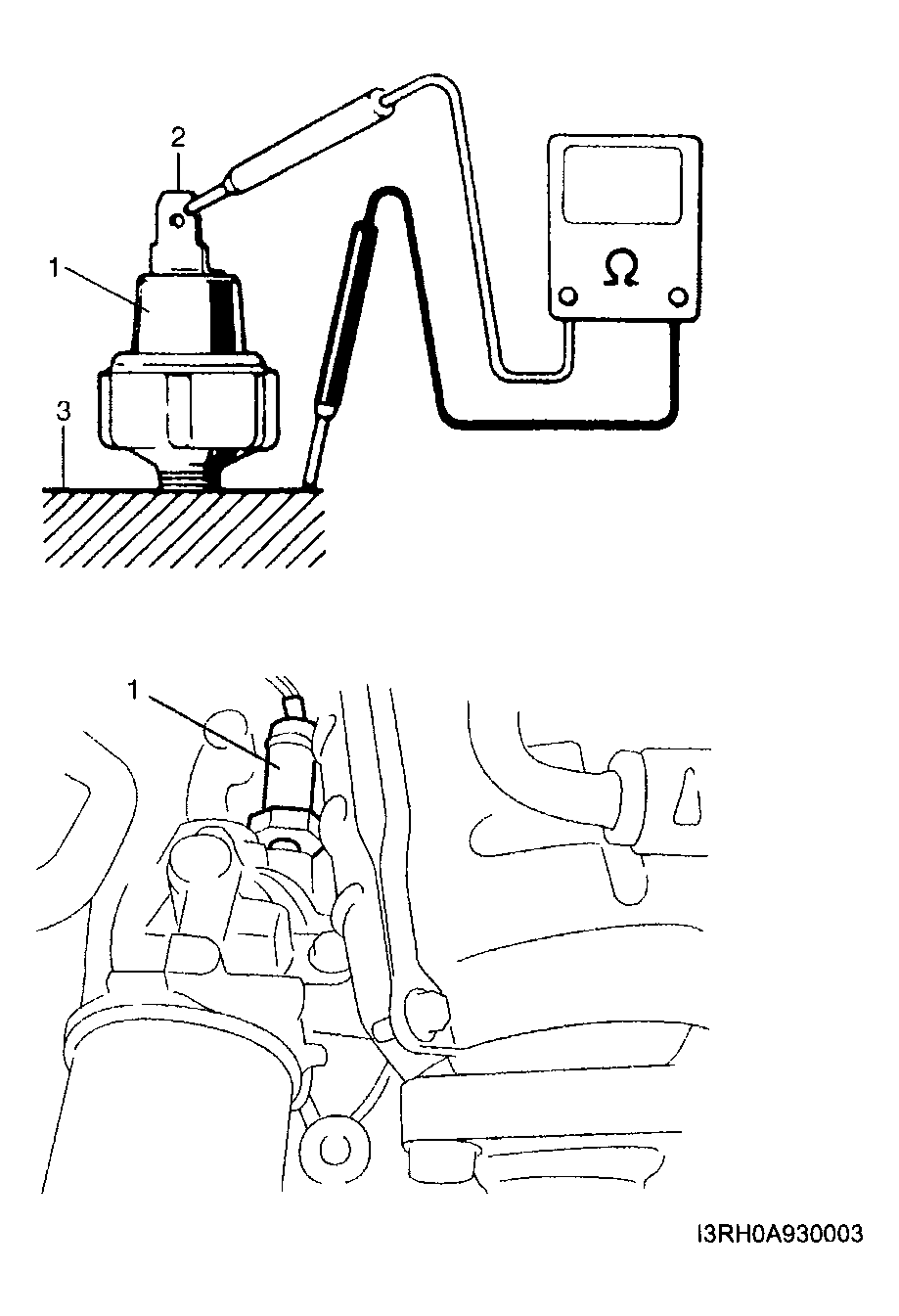

- Disconnect oil pressure switch (1) lead wire.
- Check for continuity between oil pressure switch terminal (2) and cylinder block (3) as shown.
If check result is not as specified, replace oil pressure switch (1).
Oil pressure sensor specification
During engine running: No continuity
At engine stop: Continuity
