Generator Dismounting and Remounting
- Remove air cleaner outlet hose and air cleaner assembly.
- Remove P/S return pipe clamp bolt.
- Remove right side drive shaft referring to FRONT DRIVE SHAFT ASSEMBLY REMOVAL AND INSTALLATION .

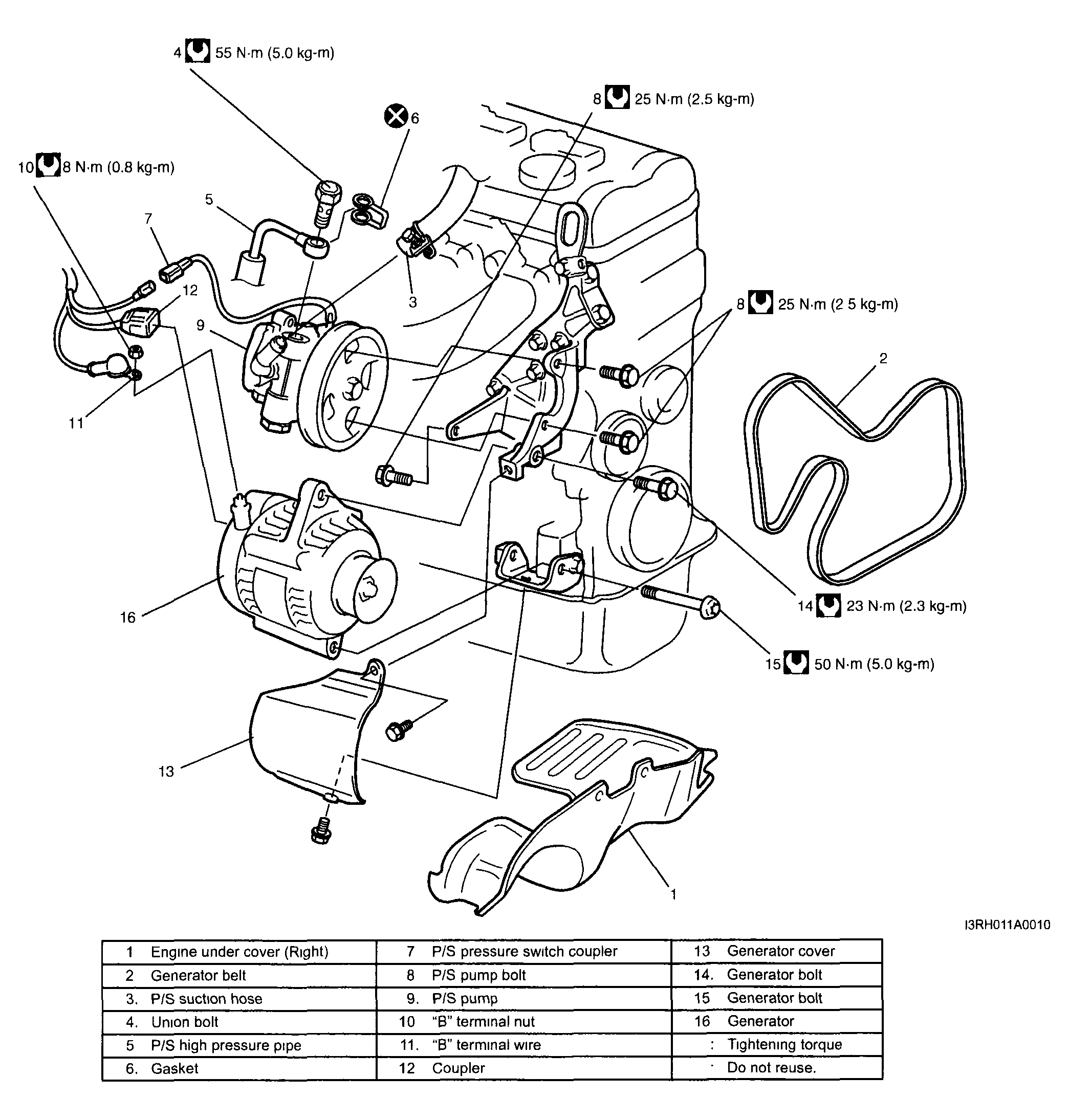

- Disassemble in order shown in figure.
- Reverse disassembly procedure for reassembly.
