ABS Schematic

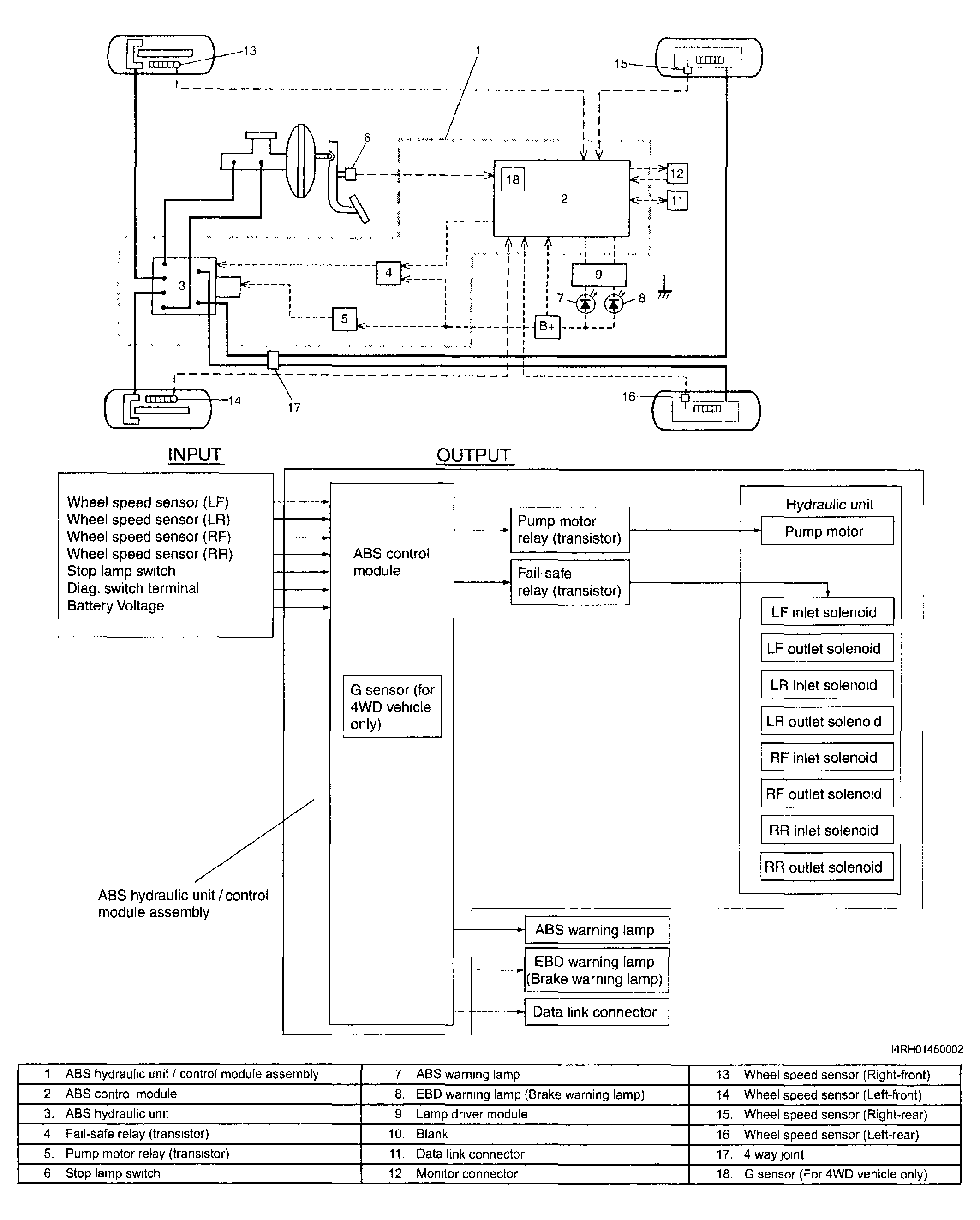

Fig 1: Identifying ABS Schematic And Routing Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
