Rear Door Window Regulator Removal and Installation: Removal

1. Remove door glass referring to "REAR DOOR GLASS REMOVAL AND INSTALLATION :".
2. Disconnect power window motor lead wire at coupler and loosen clamp.
3. Loosen regulator mounting bolts (1) and nuts (2), and then remove rear window regulator (3).

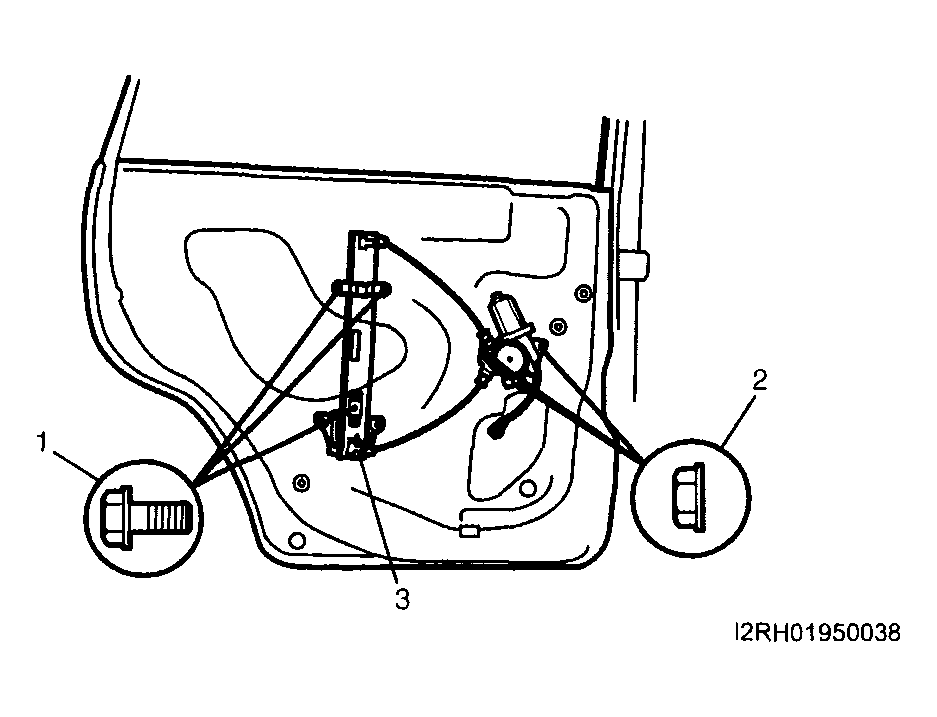

Fig 1: Removing Regulator Mounting Bolts And Nuts

Courtesy of SUZUKI OF AMERICA CORP.
