Front Door Glass Removal and Installation: Removal

Remove inside handle bezel (1).
Remove inside door grip cover (2), and then remove door trim mounting bolts (3).

Fig 1: Removing Inside Door Grip Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove door trim (1).
With inside handle bezel (2) tilted toward inside, turn and remove door trim as shown.

And disconnect power window switch lead wire at coupler.

Fig 2: Removing Door Trim
Courtesy of SUZUKI OF AMERICA CORP.

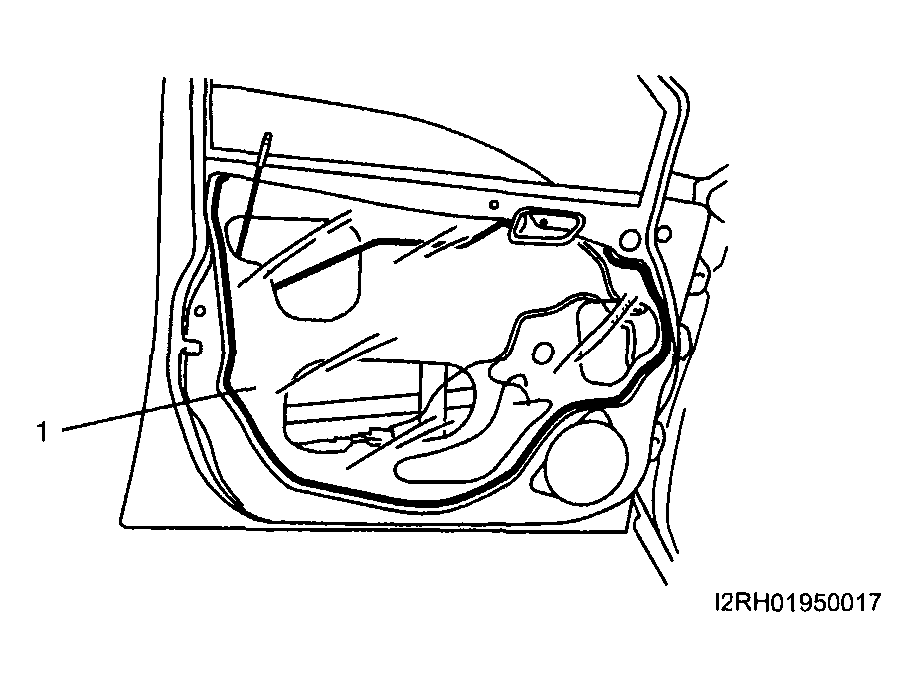

Remove door sealing cover (1).

Fig 3: Removing Door Sealing Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove outer weather-strip (1). Do not deform it when removal.
Lower window all the way down. Then, use a tape-wrapped putty knife to pry off outer weather-strip.

Fig 4: Removing Outer Weather-Strip
Courtesy of SUZUKI OF AMERICA CORP.

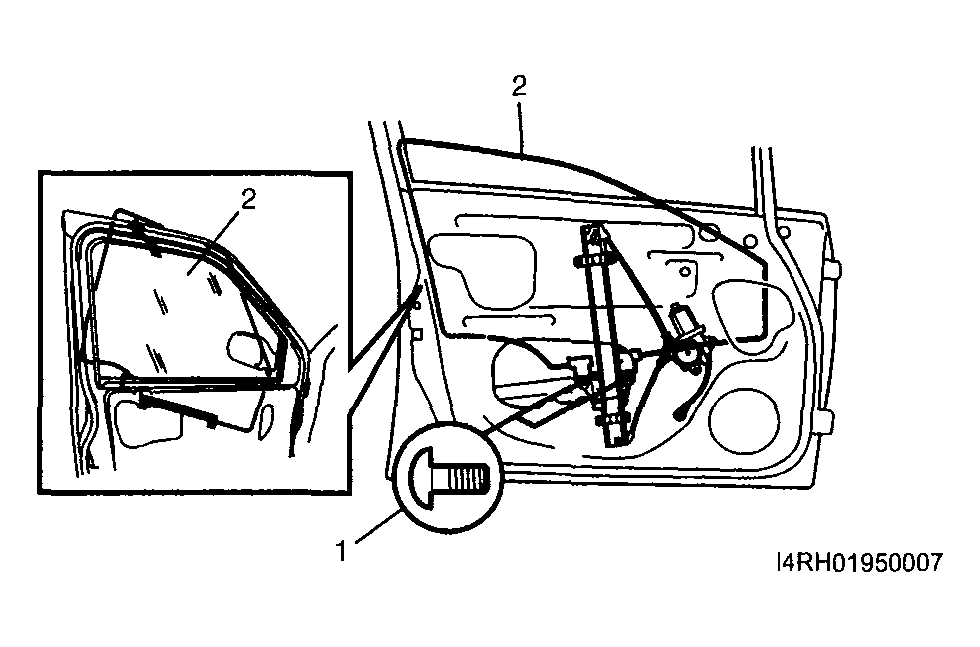

Remove door glass mounting screws (1).
Remove door glass (2) while tilting it as shown.

Fig 5: Removing Door Glass

Courtesy of SUZUKI OF AMERICA CORP.
