Door Mirror Heater Switch (If Equipped) Inspection
- Remove mirror heater switch from instrument panel.

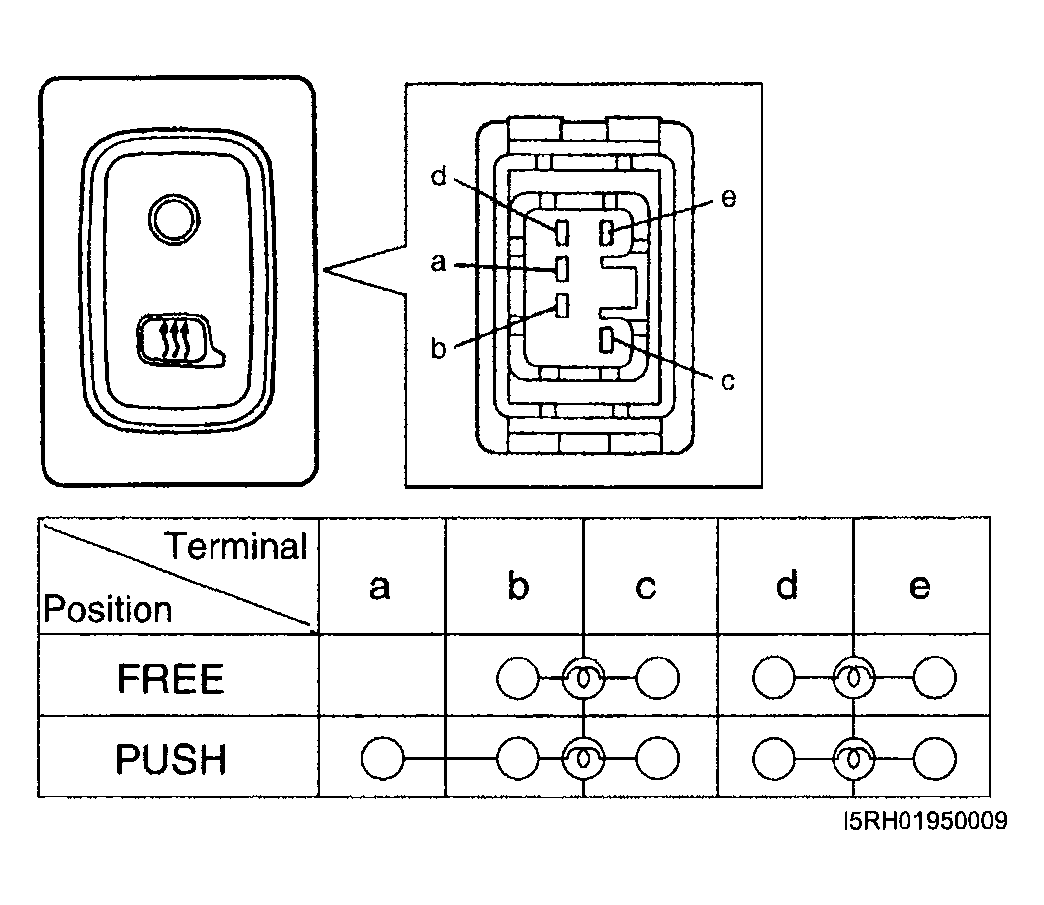

- Check for continuity between terminals at each switch position as shown. If check result is not as specified, replace switch.
Courtesy of SUZUKI OF AMERICA CORP.
