Back Window (for Sedan Model) Removal and Installation
Refer to "WINDSHIELD REMOVAL AND INSTALLATION :" as removal and installation procedures are basically the same. However, note the following.

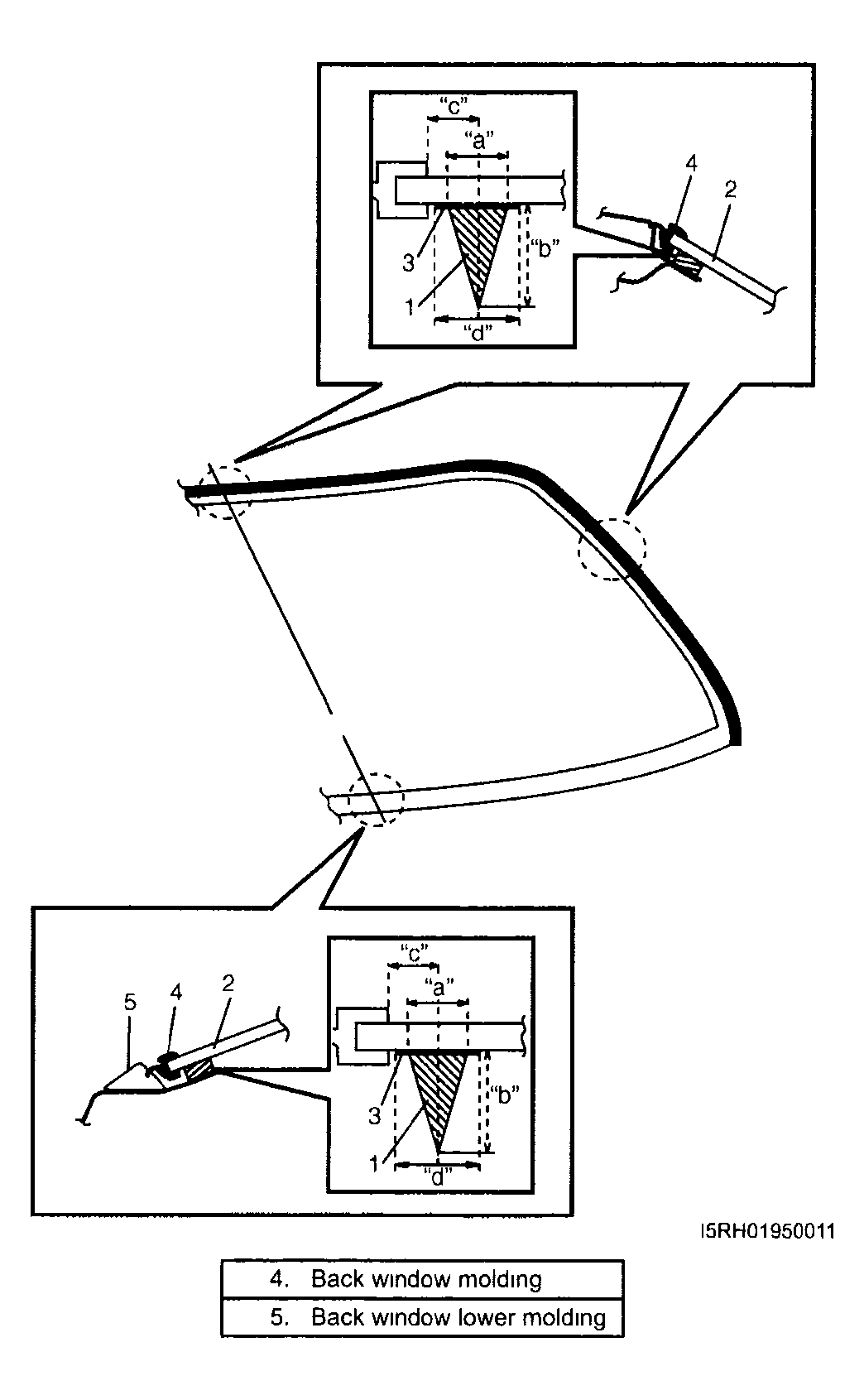

- Observe the following precautions when applying adhesive (1) along glass (2) edge.
- Adhesive (1) should be applied evenly especially in height.
- Be careful not to damage primer (3).
- Press glass against body quickly after adhesive (1) is applied.
Adhesive amount specifications and position for back window
Width "a": 7 mm (0.28 in.)
Height "b": 14 mm (0.55 in.)
Position "c": 6 mm (0.23 in.)
Width "d": 14 mm (0.55 in.)
