Under Coating Application Areas

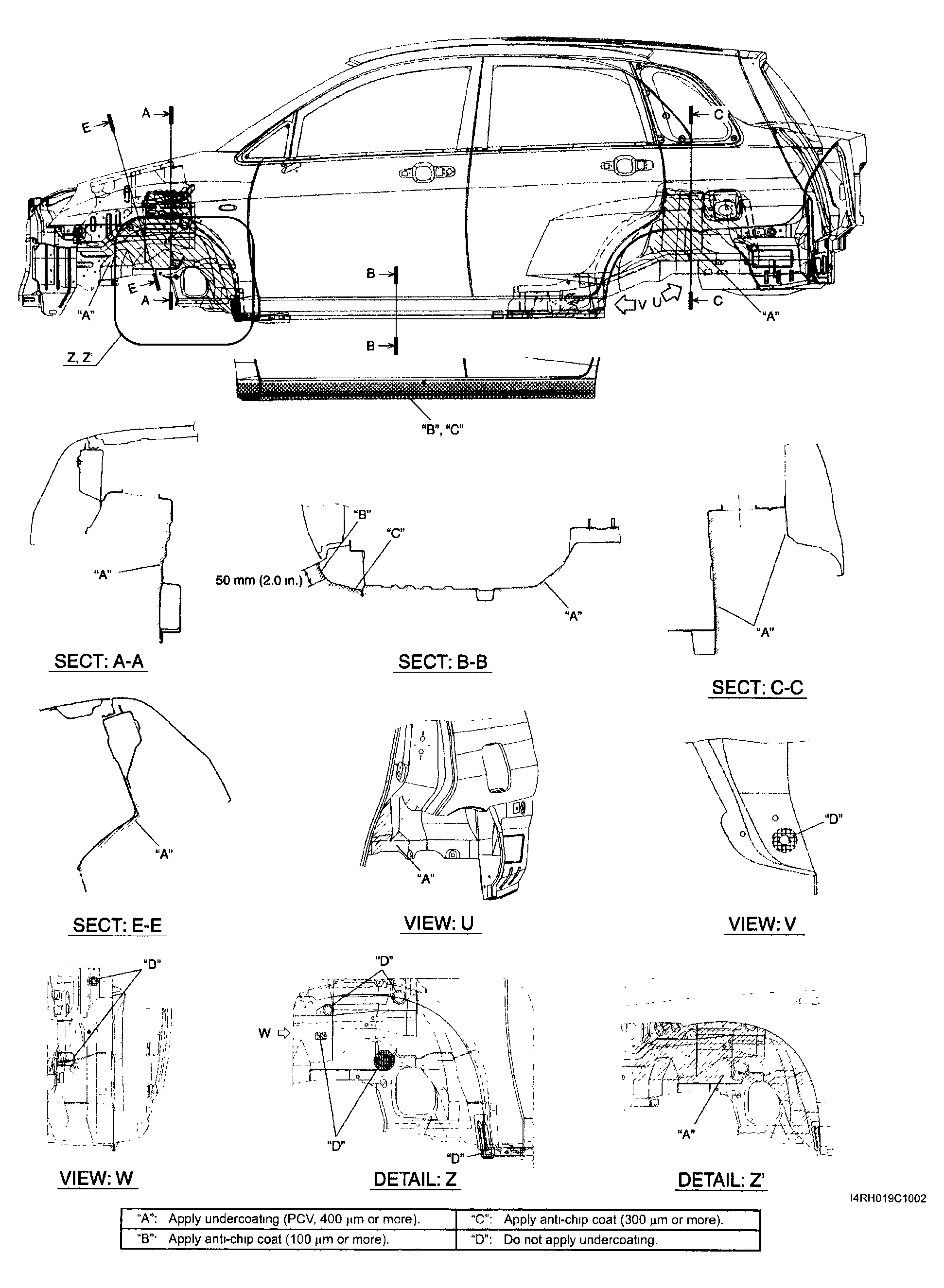

Fig 1: Identifying Under Coating Application Areas (1 Of 2)
G04016271Courtesy of SUZUKI OF AMERICA CORP.

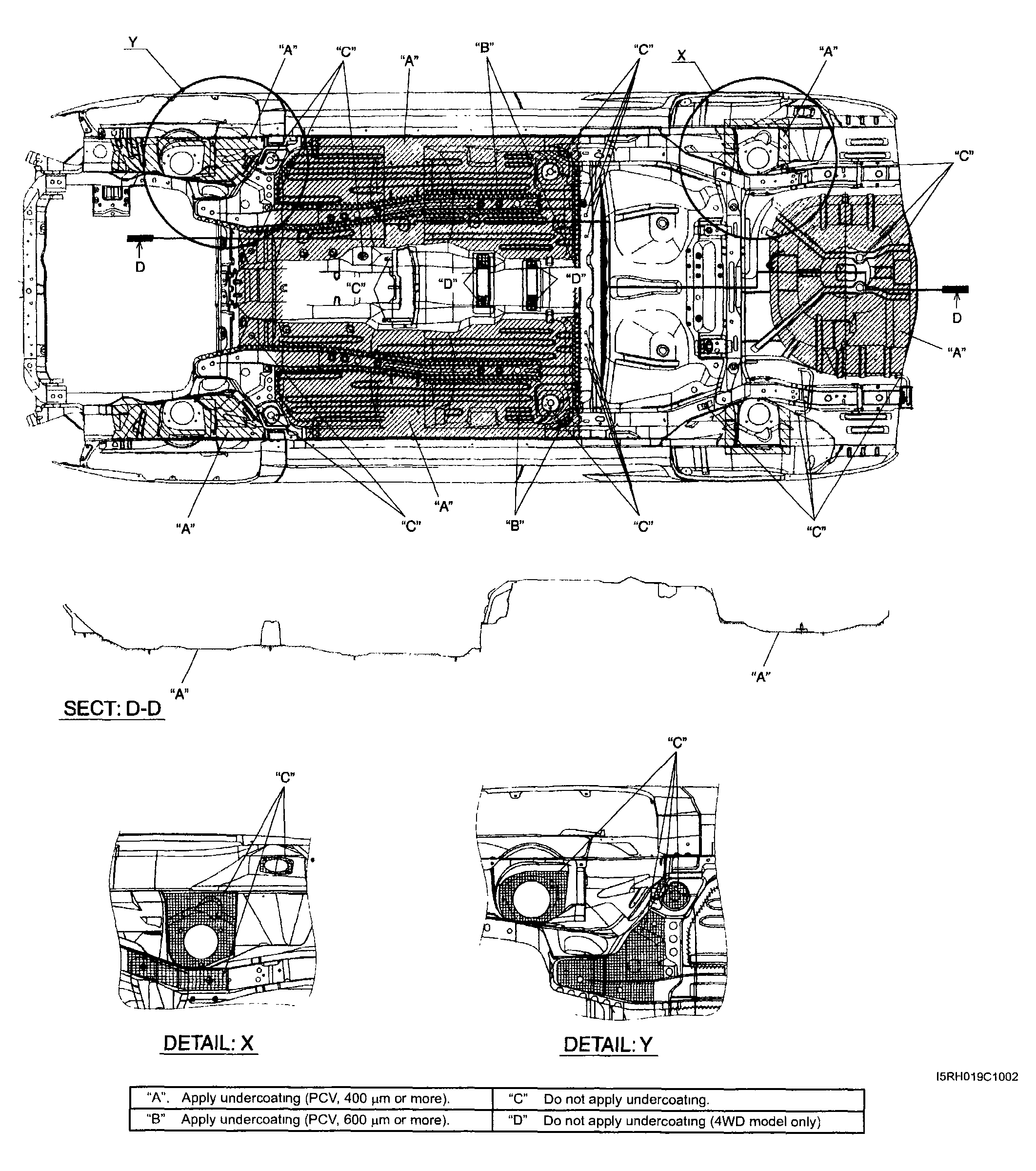

Fig 2: Identifying Under Coating Application Areas (2 Of 2)
G04016272Courtesy of SUZUKI OF AMERICA CORP.
