Power Door Lock Actuator Inspection

1. Disconnect power door lock actuator coupler.
2. Connect battery positive (+) and negative (-) terminals to the door lock actuator terminals (a, b) as shown.

If it does not operate as specified in the following table, replace door lock actuator.

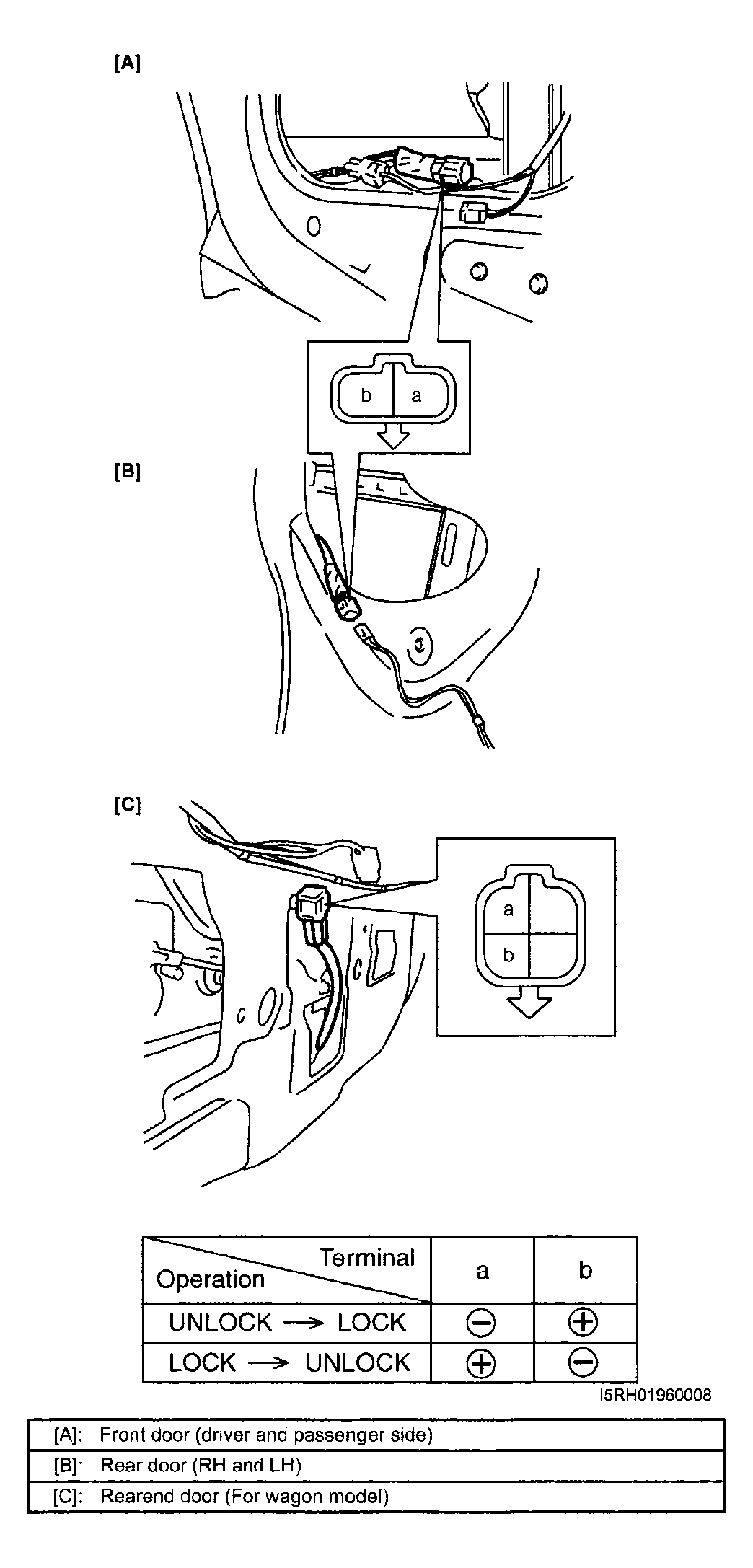

Fig 1: Connecting Battery Positive (+) And Negative (-) Terminals To Door Lock Actuator Terminals

Courtesy of SUZUKI OF AMERICA CORP.
