Turn Signal Light Switch (in Lighting Switch) Inspection

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

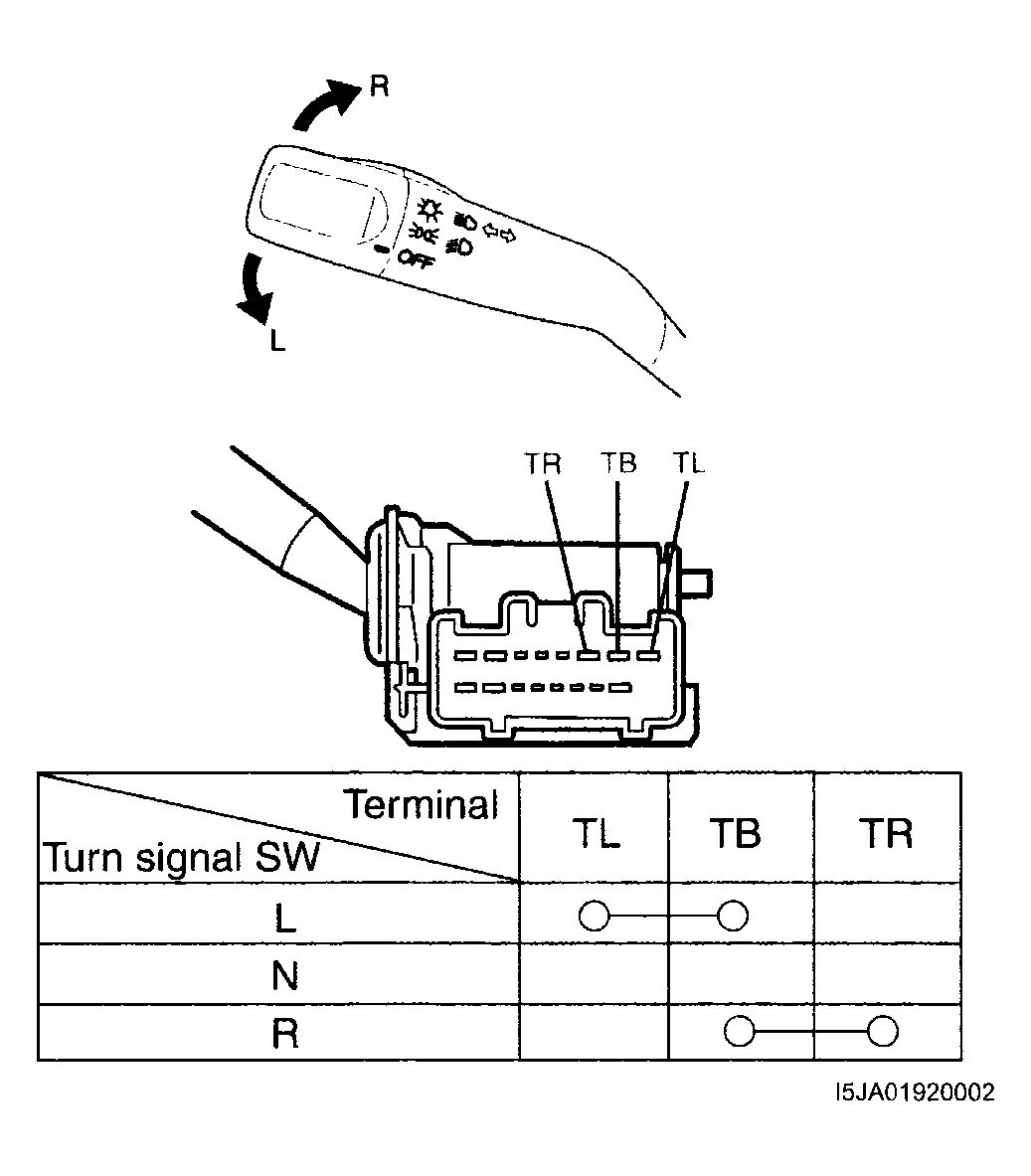

Fig 1: Inspecting Turn Signal Light Switch (In Lighting Switch)

Courtesy of SUZUKI OF AMERICA CORP.
