Front Fog Light Assembly Removal and Installation: Removal

1. Disconnect negative (-) cable at battery.
2. Remove front bumper. Refer to FRONT BUMPER AND REAR BUMPER COMPONENTS .
3. Disconnect couplers (1) from fog light (2).
4. Detach fog light (2) pushing clips (3) to arrow direction.

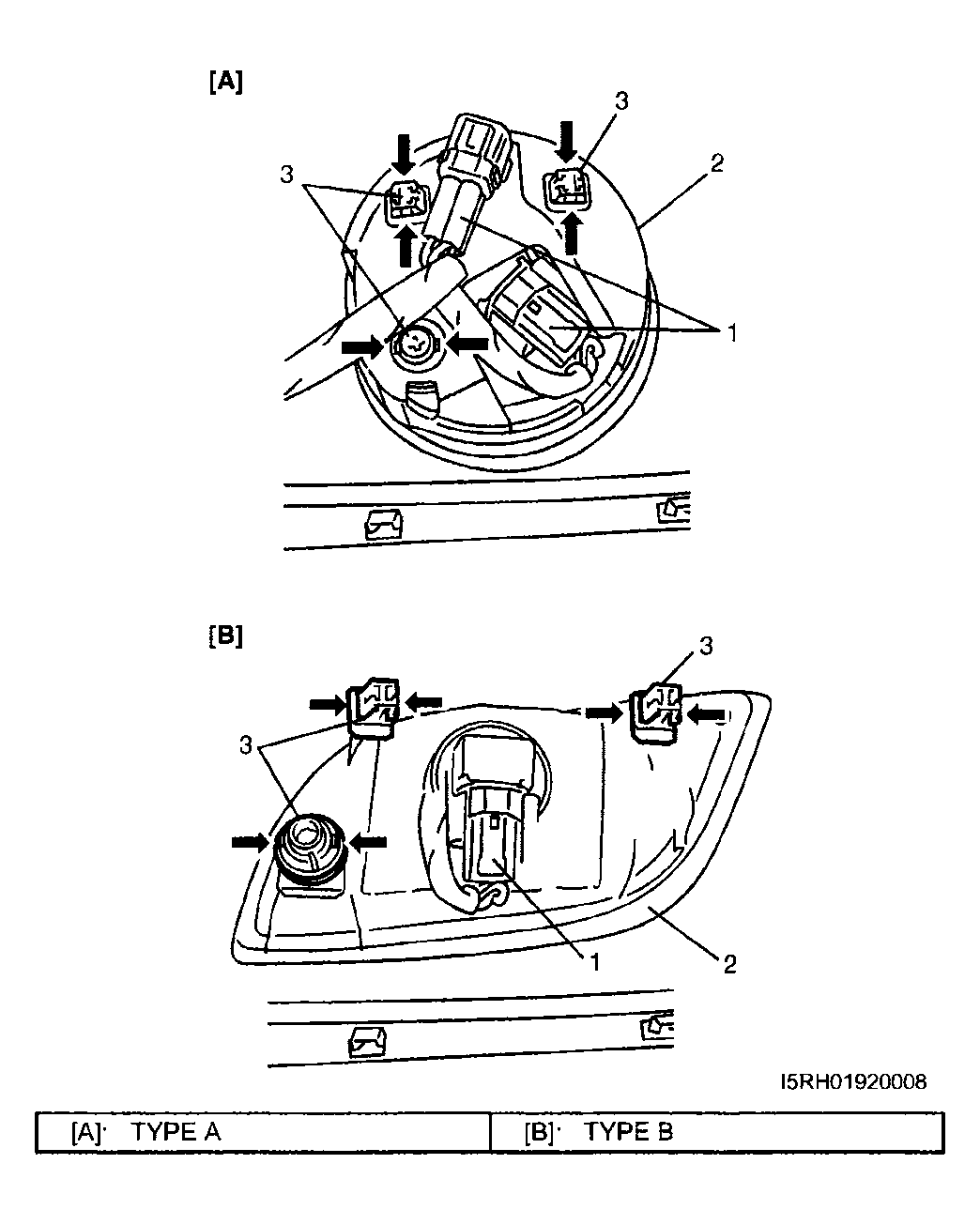

Fig 1: Detaching Fog Light Pushing Clips

Courtesy of SUZUKI OF AMERICA CORP.
