Seat Belt: Locations

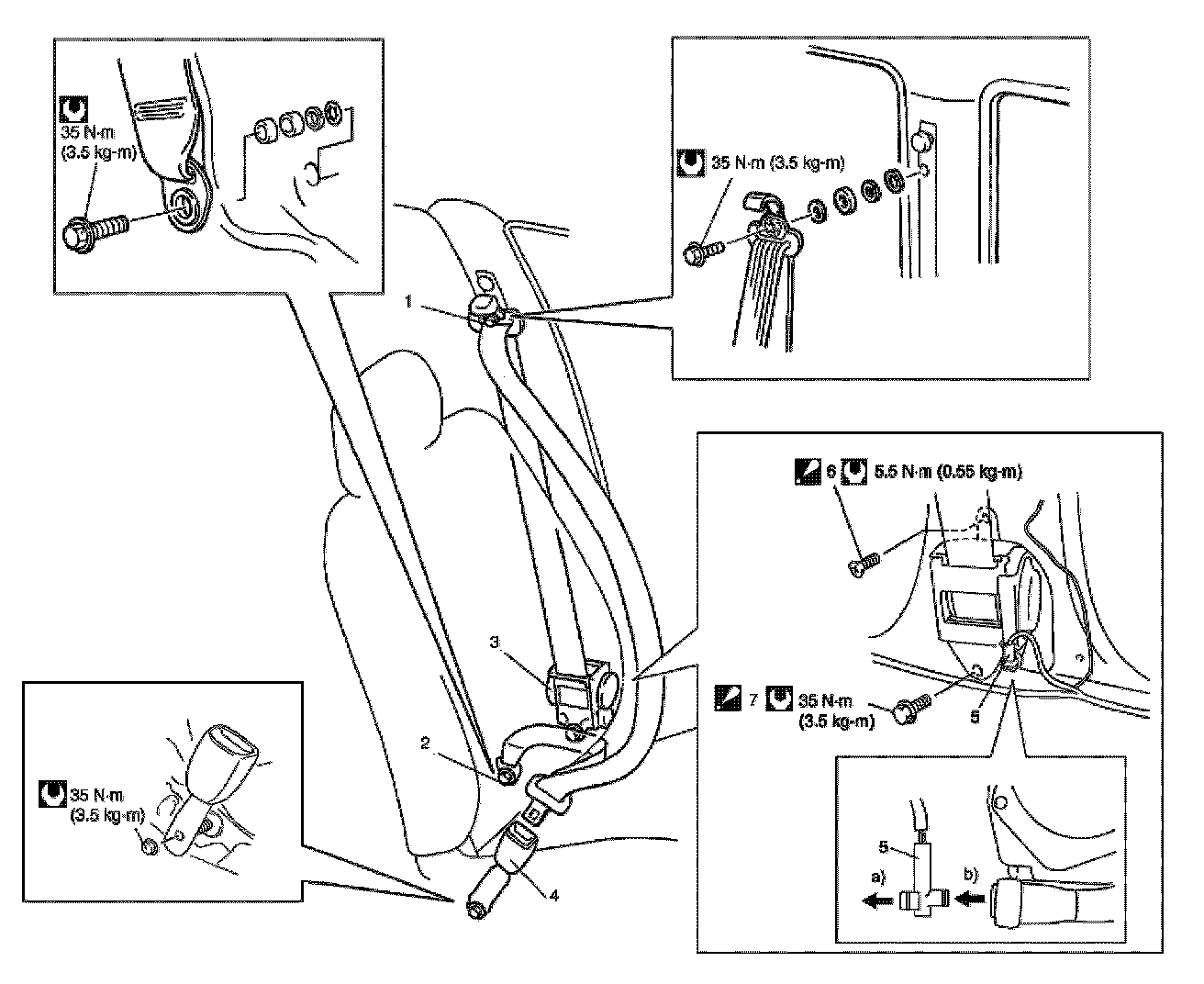

Front Seat Belt ComponentsFront Seat Belt Components Part 1:
Front Seat Belt Components Part 2:
WARNING:
- Never attempt to disassemble or repair the seat belt pretensioner (retractor assembly). If any abnormality is found, be sure to replace it with new one as an assembly.
- Be sure to read Precautions on Service and Diagnosis of Seat Beltbefore starting to work and observe every precaution during work. Neglecting them may result in personal injury or unactivation of the seat belt pretensioner when necessary.
