Air Bag Systems: Locations

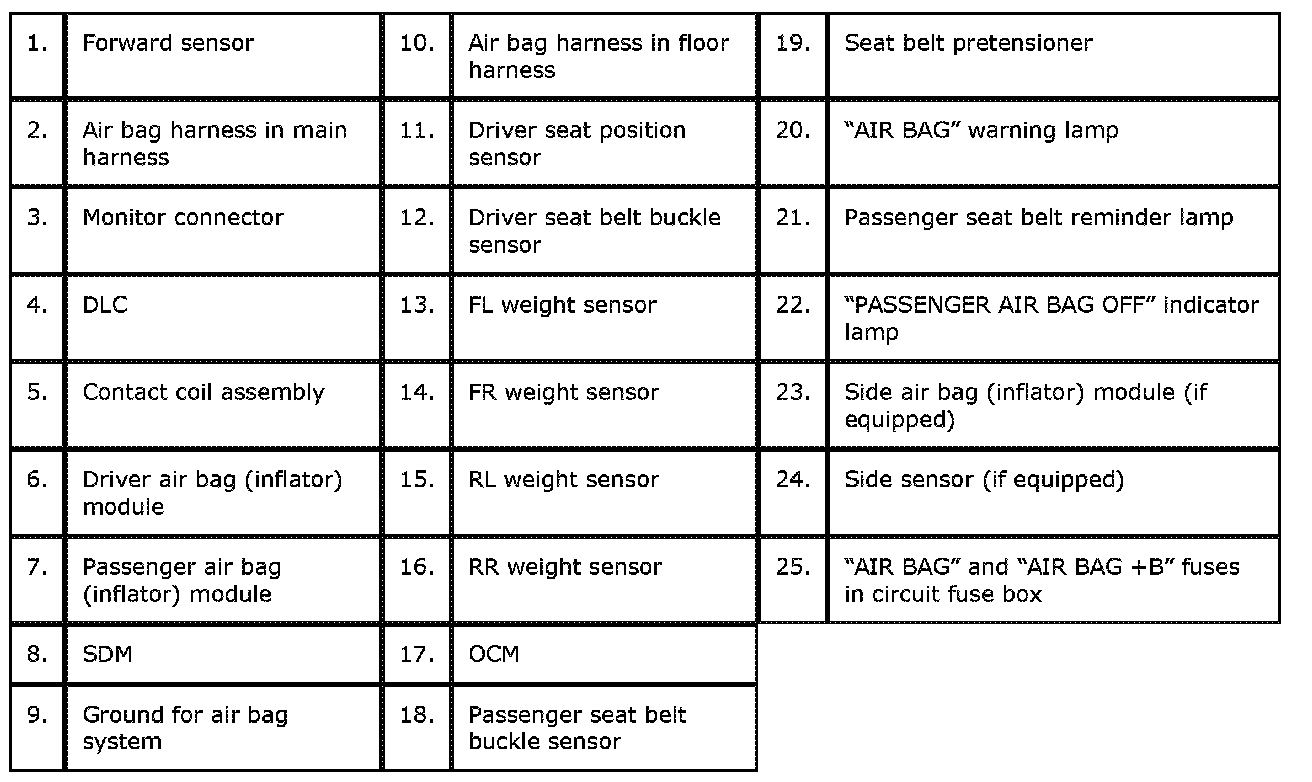

Air Bag System Components, Wiring and Connectors Location Part 2:

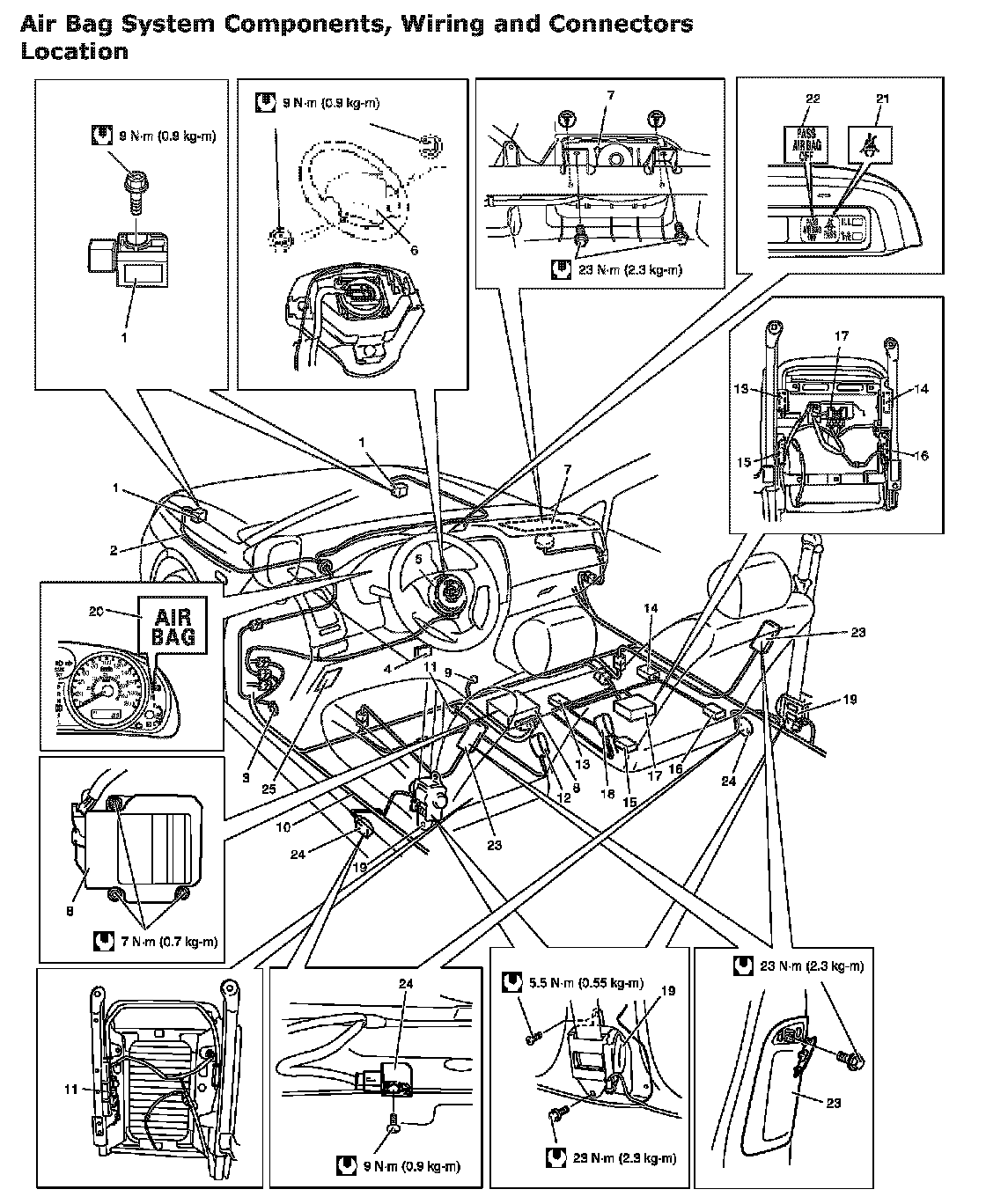

Air Bag System Components, Wiring and Connectors Location Part 1:
