Engine Basic Check

Engine Basic Inspection

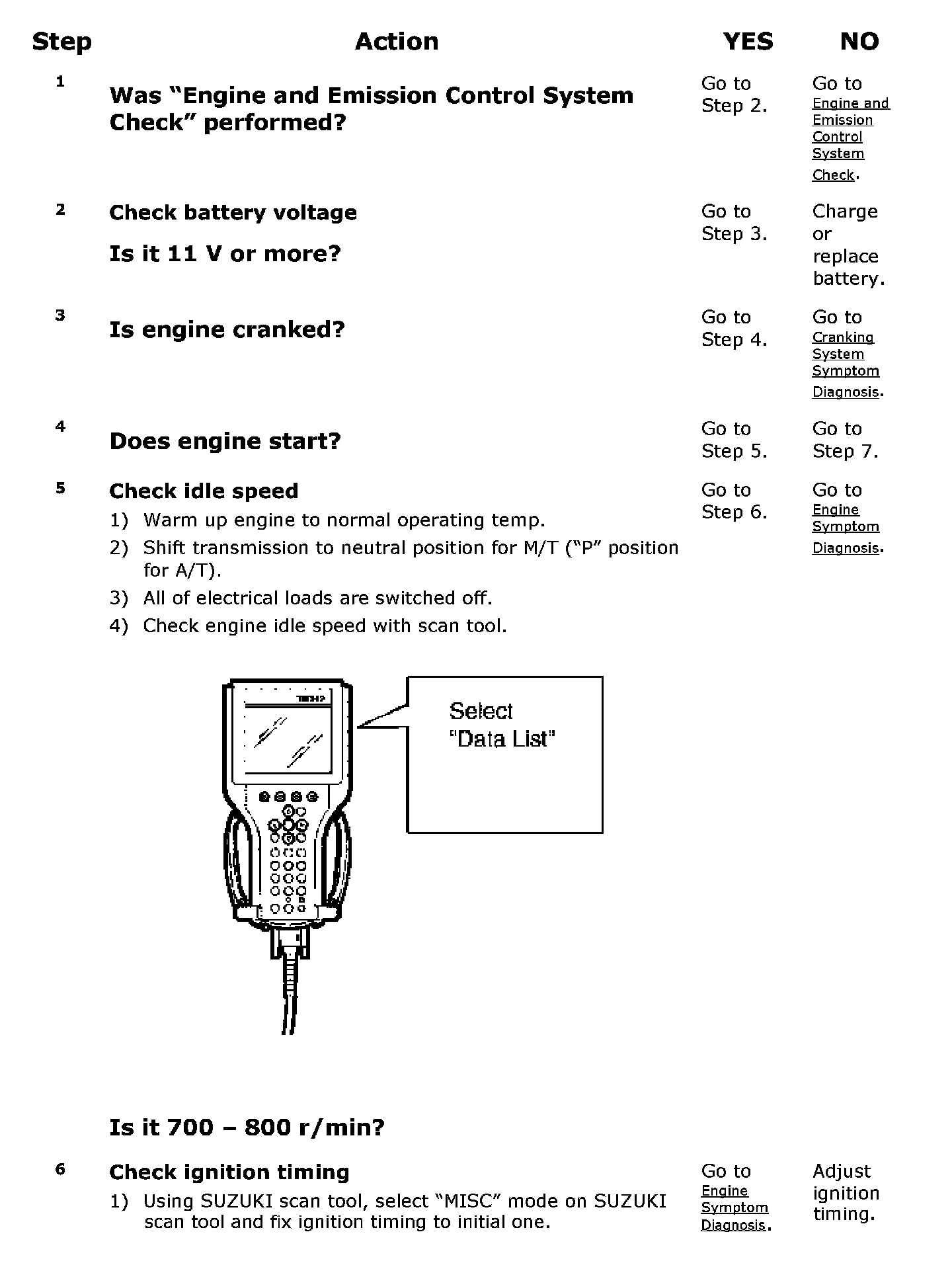

Step 1 - 6:

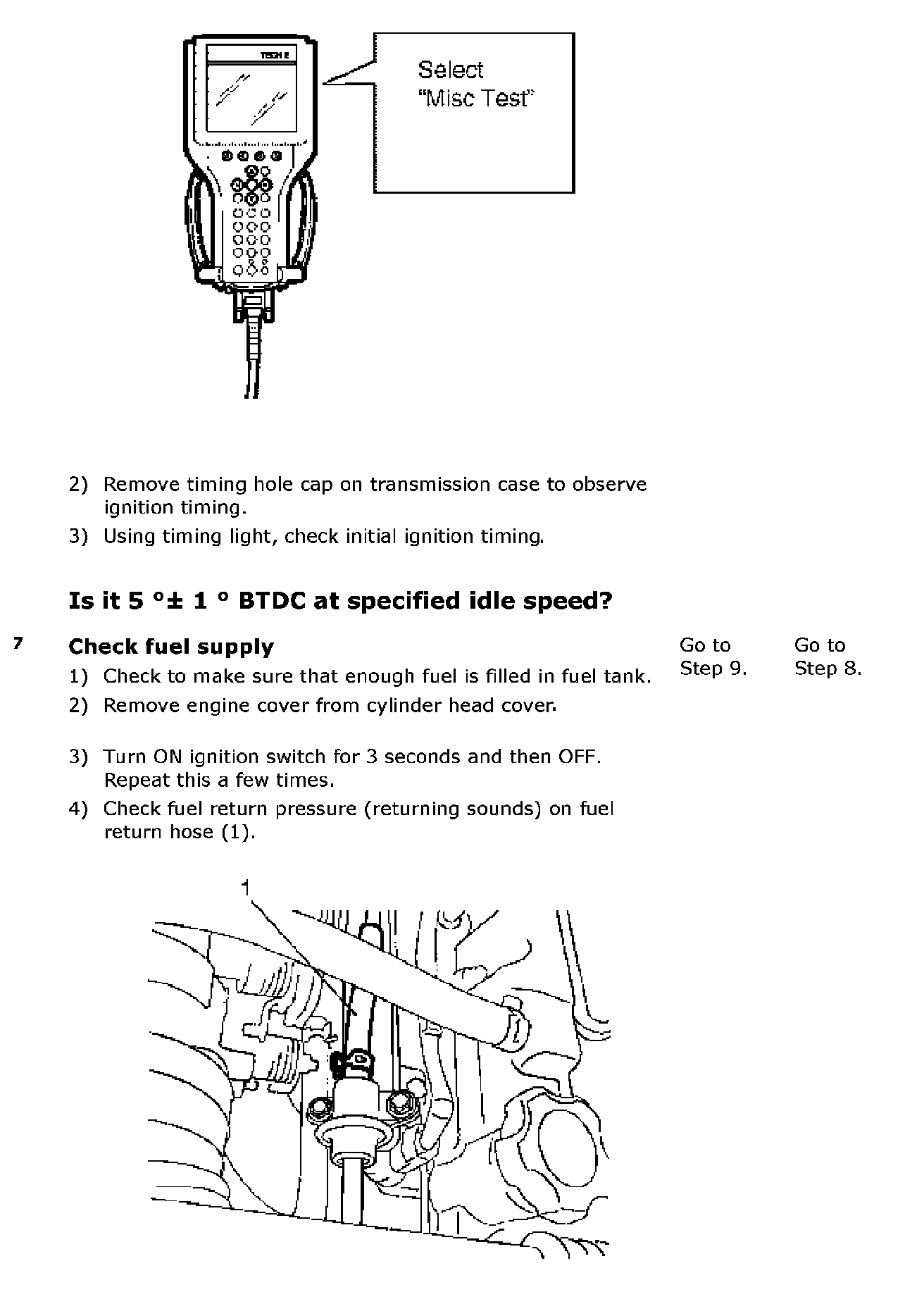

Step 6(Continued) - 7:

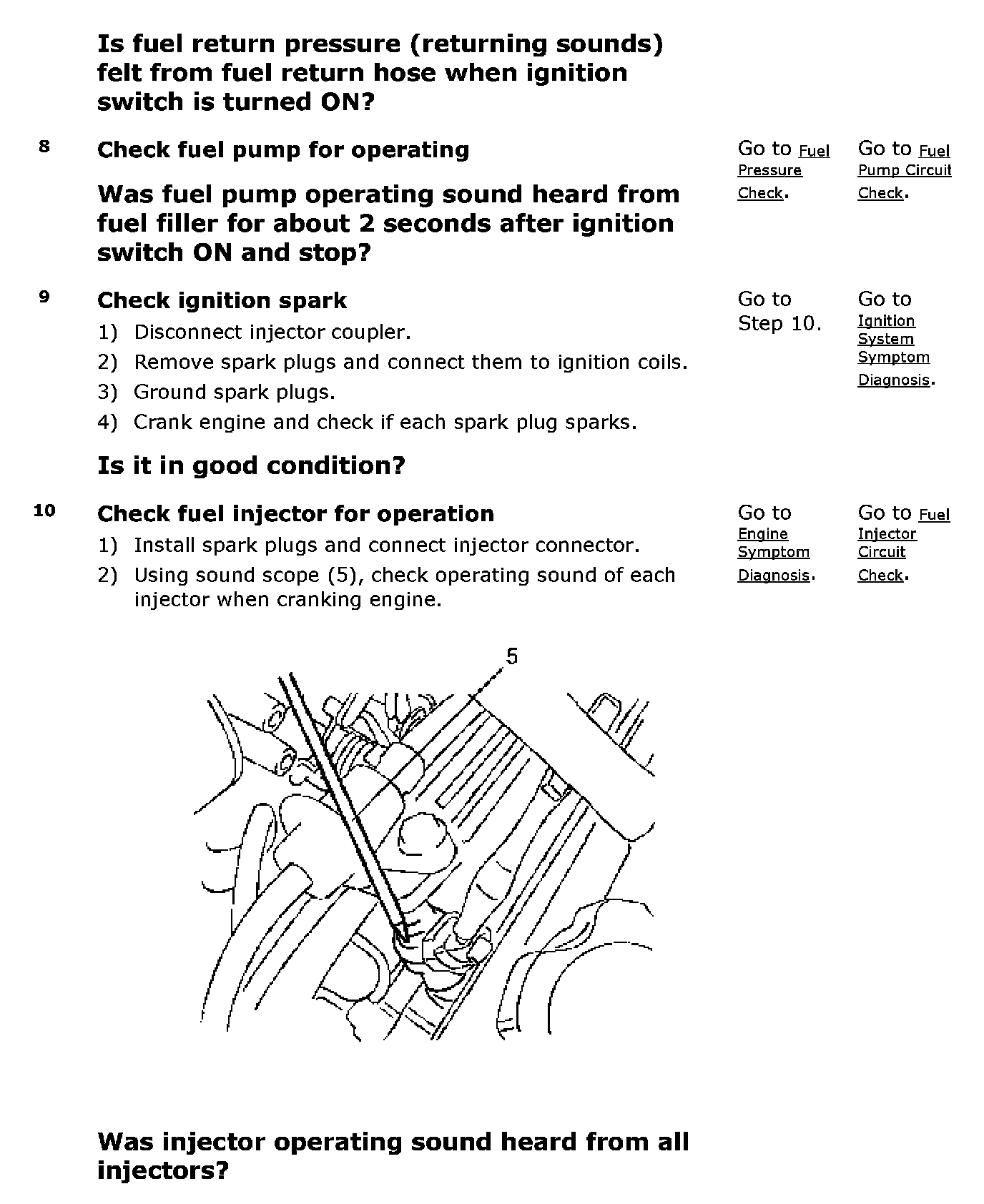

Step 7(Continued) - 10:

This check is very important for troubleshooting when ECM has detected no DTC and no abnormality has been found in visual inspection. Follow the flow carefully.
