Component Test

Condenser Cooling Fan Inspection

Reference: Condenser Cooling Fan Removal and Installation:Manual Type

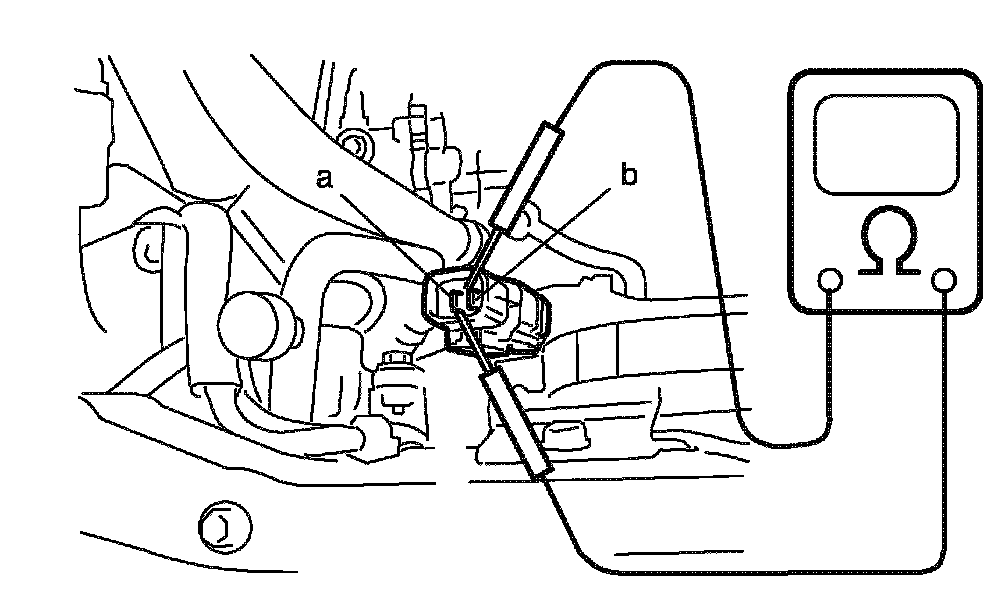

1. Check condenser cooling fan motor for continuity between terminal "a" and "b" as shown. If there is no continuity, replace condenser cooling fan motor.

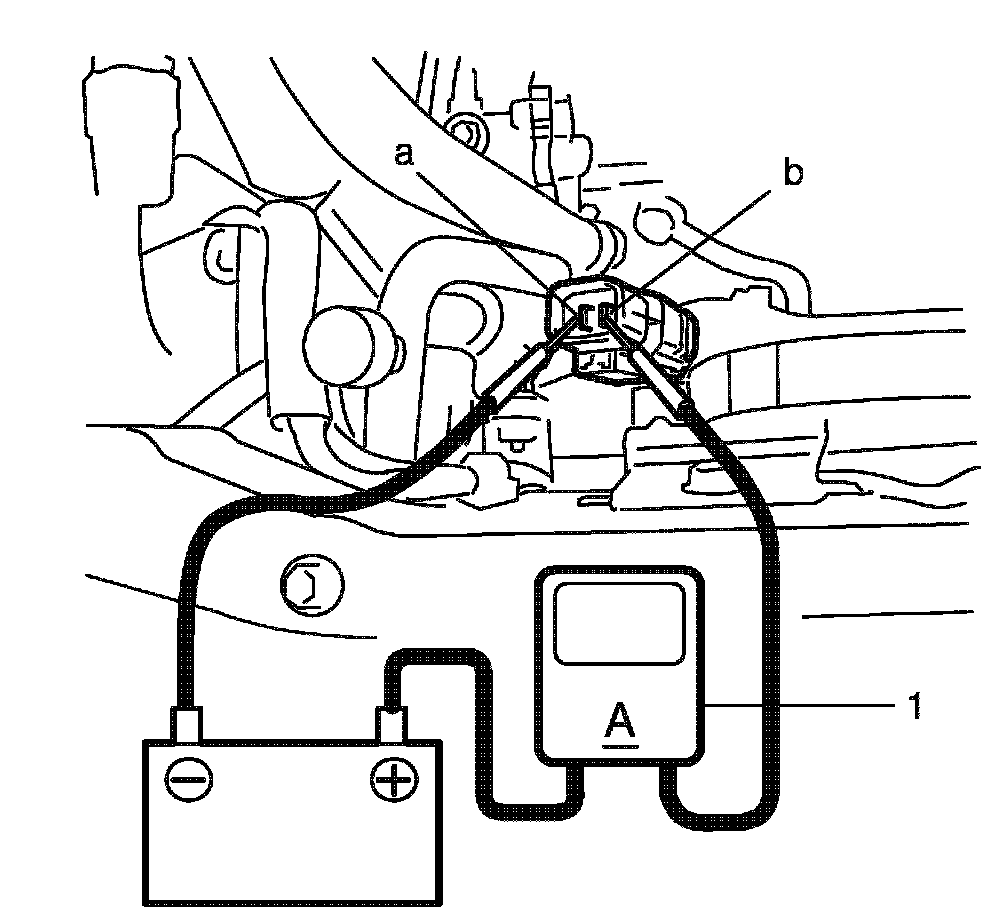

2. Connect battery and ammeter (1) to condenser cooling fan motor terminal "a" and "b" as shown in figure, and then check if the condenser cooling fan motor operates smoothly.
3. Check if ammeter indicates specified current. If current is out of specification, replace condenser cooling fan motor.
Reference: Condenser cooling fan specified current at 12 V: 7 A maximum
