LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Suzuki
>>
2005
>>
Aerio L4-2.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
G Connectors
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
G Connectors

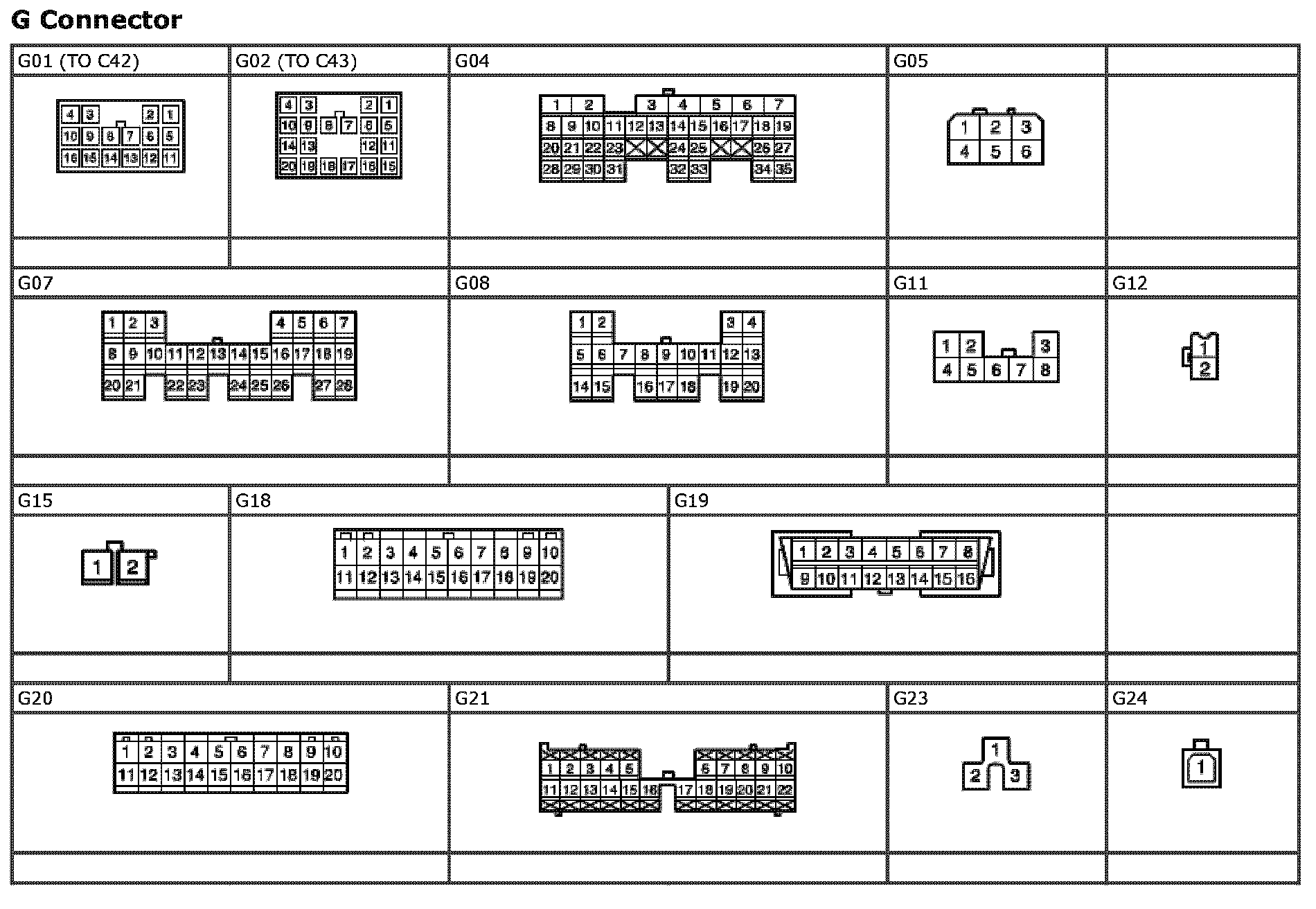

G01 - G24:

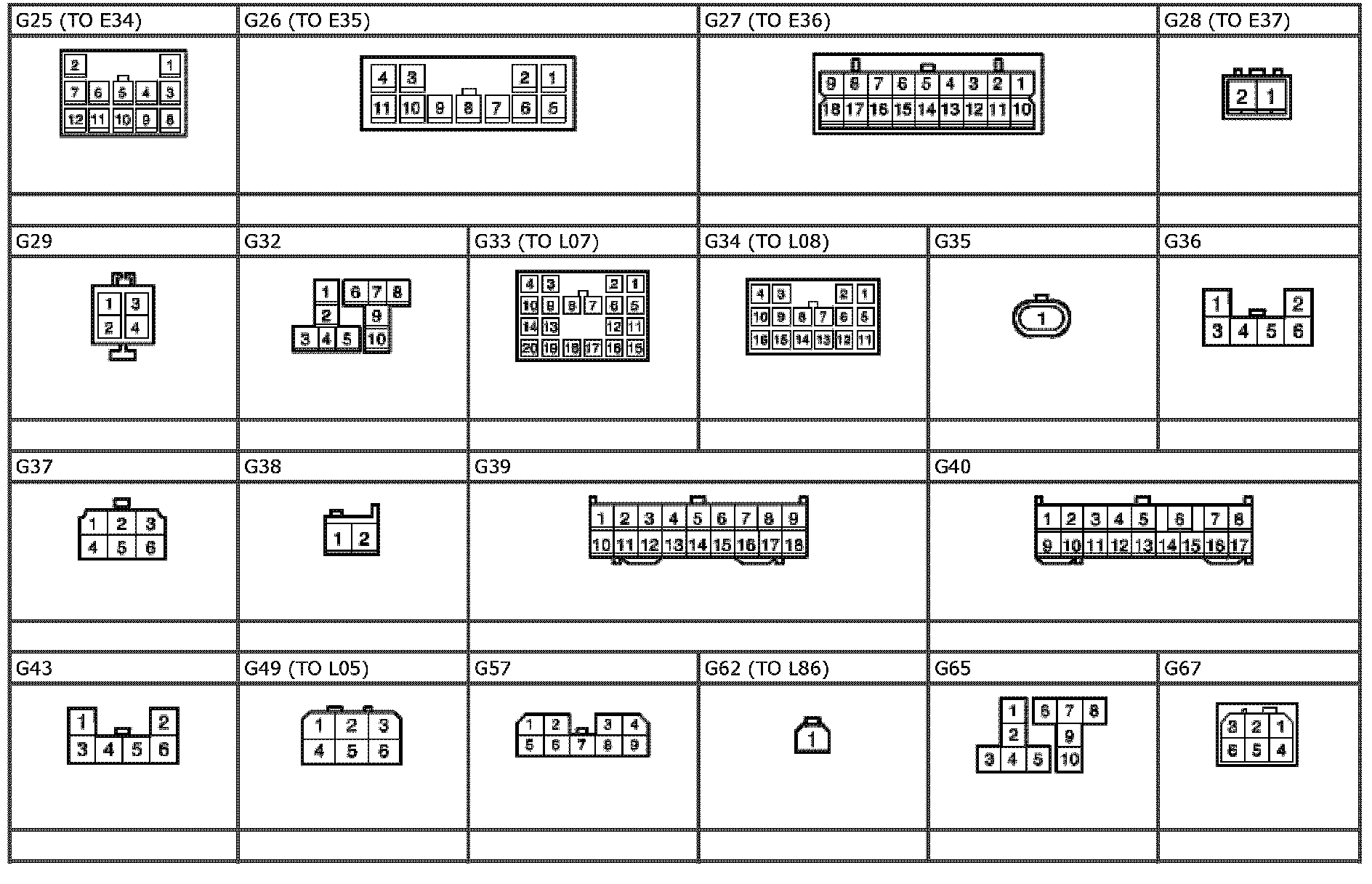

G25 - G67:

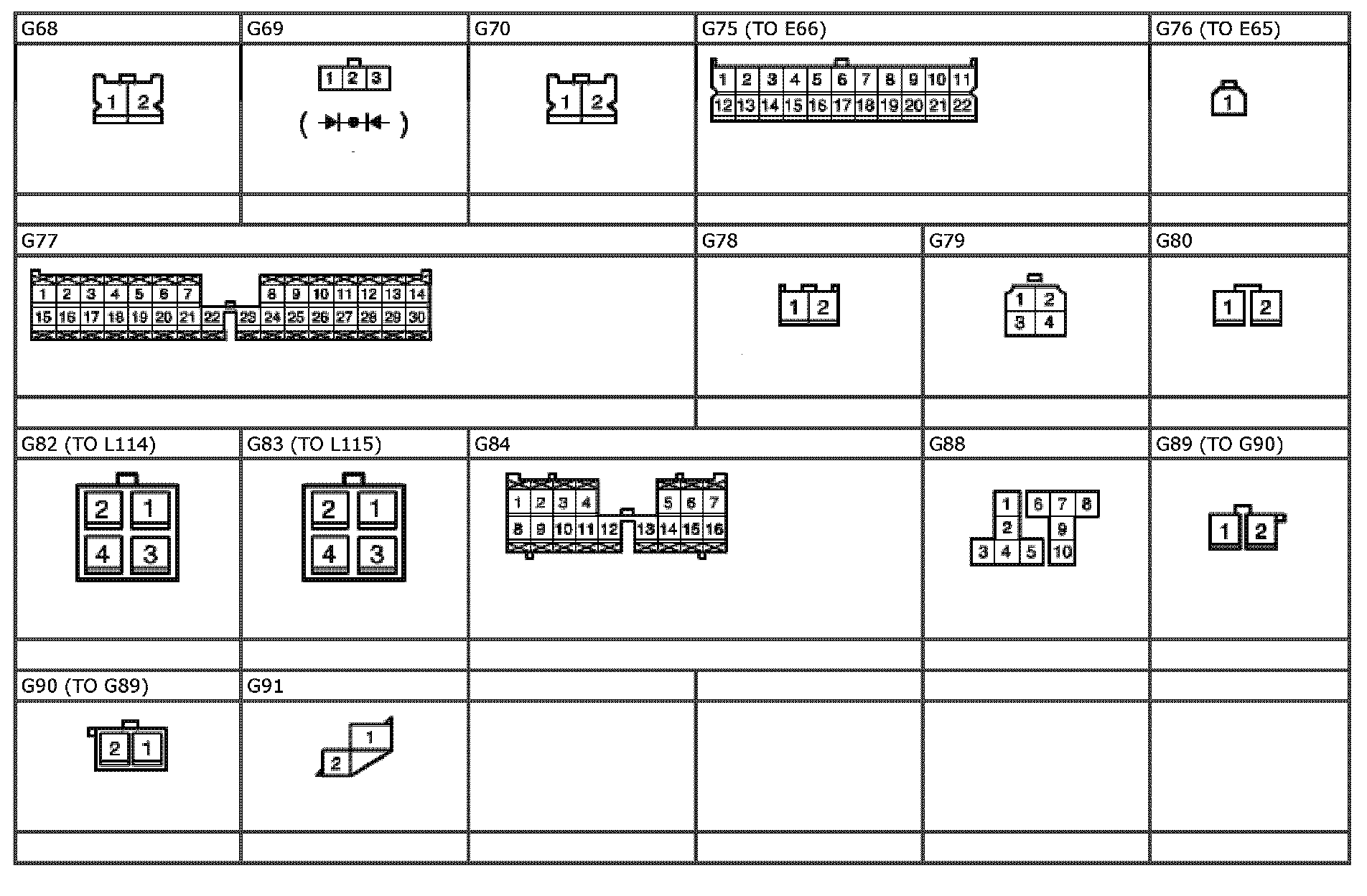

G68 - G91:
