Component Tests and General Diagnostics

Door Mirror Heater (If Equipped) Inspection




1. Remove door trim.

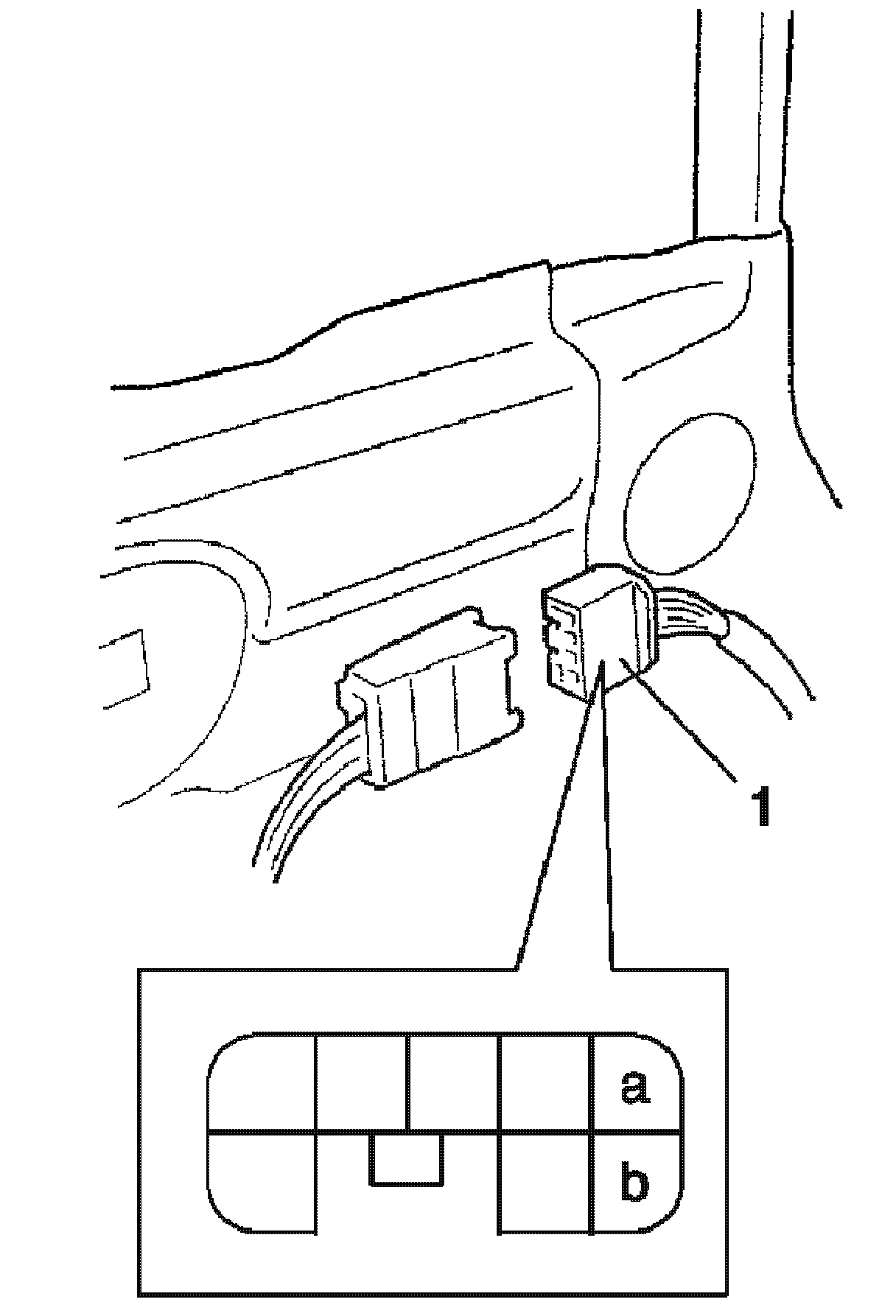

2. Disconnect door mirror coupler (1).
3. Check for continuity between terminals a and b. If no continuity, replace outside mirror.
