Rear Door Assembly

Rear Door Lock Assembly Removal and Installation

Reference: Rear Door Lock Assembly Components Removal




1. Remove rear door glass.

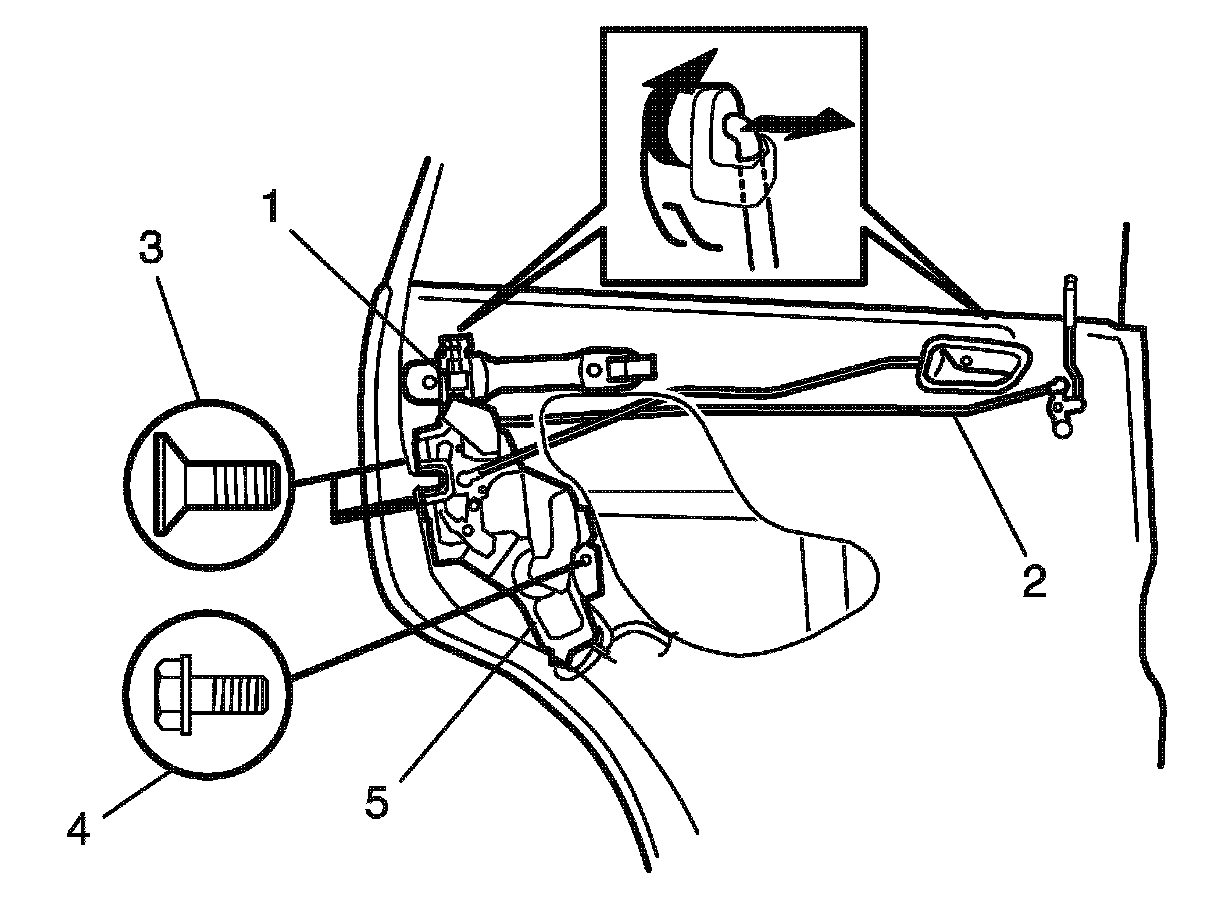

2. Disconnect door opening control rod (1) and door latch control rod (2).
3. Disconnect door lock motor lead wire (if equipped).
4. Loosen door latch mounting screw (3), door latch actuator bolt (4) and remove door latch assembly (5).

Installation

Reference: Rear Door Lock Assembly Inspection

Reverse removal procedure to install rear door lock assembly.
