B1512

DTC B1512 (No.12): Air Flow Control Actuator (Position Sensor) and/or its Circuit malfunction

Wiring Diagram:




Wiring Diagram

DTC Detecting Condition and Trouble Area:




DTC Detecting Condition and Trouble Area

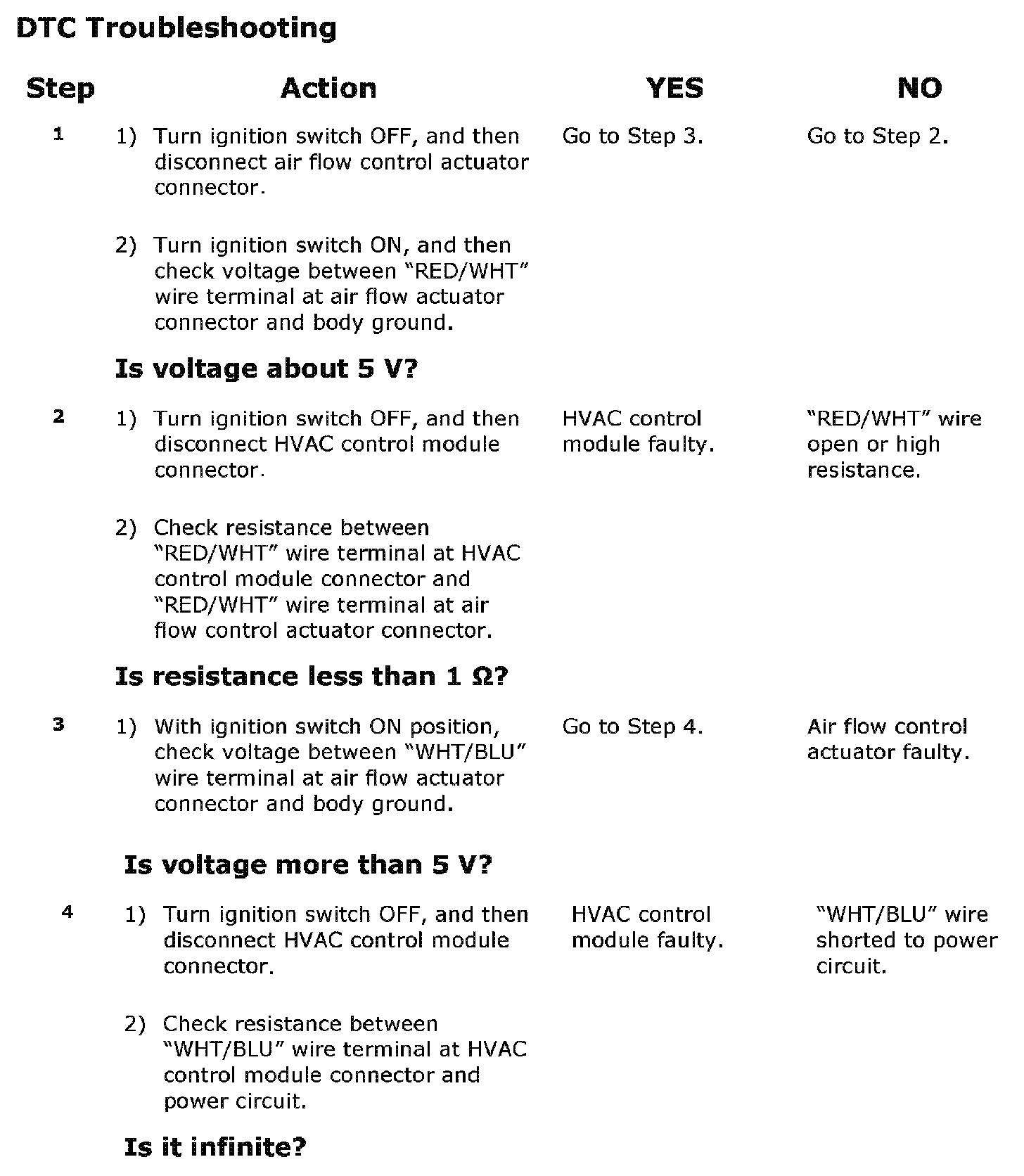

Step 1 - 4:




DTC Troubleshooting
