B1511

DTC B1511 (No.11): Temperature Control Actuator (Position Sensor) and/or its Circuit Malfunction

Wiring Diagram:




Wiring Diagram

DTC Detecting Condition and Trouble Area:




DTC Detecting Condition and Trouble Area

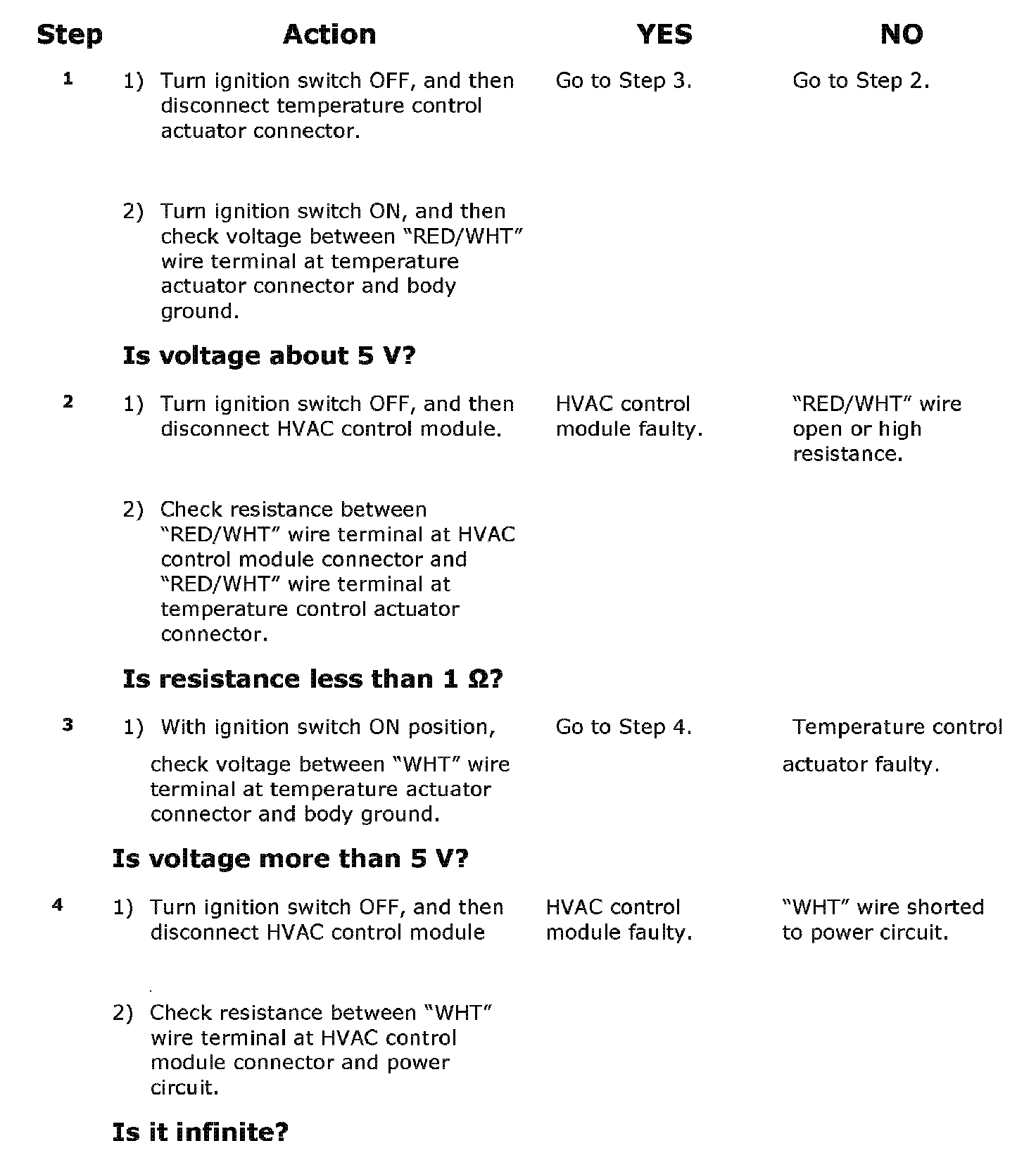

Step 1 - 4:




DTC Troubleshooting
