B1502

DTC B1502 (No.02): Inside Air Temperature Sensor and/or its Circuit Malfunction




Wiring Diagram

DTC Detecting Condition and Trouble Area:




DTC Detecting Condition and Trouble Area

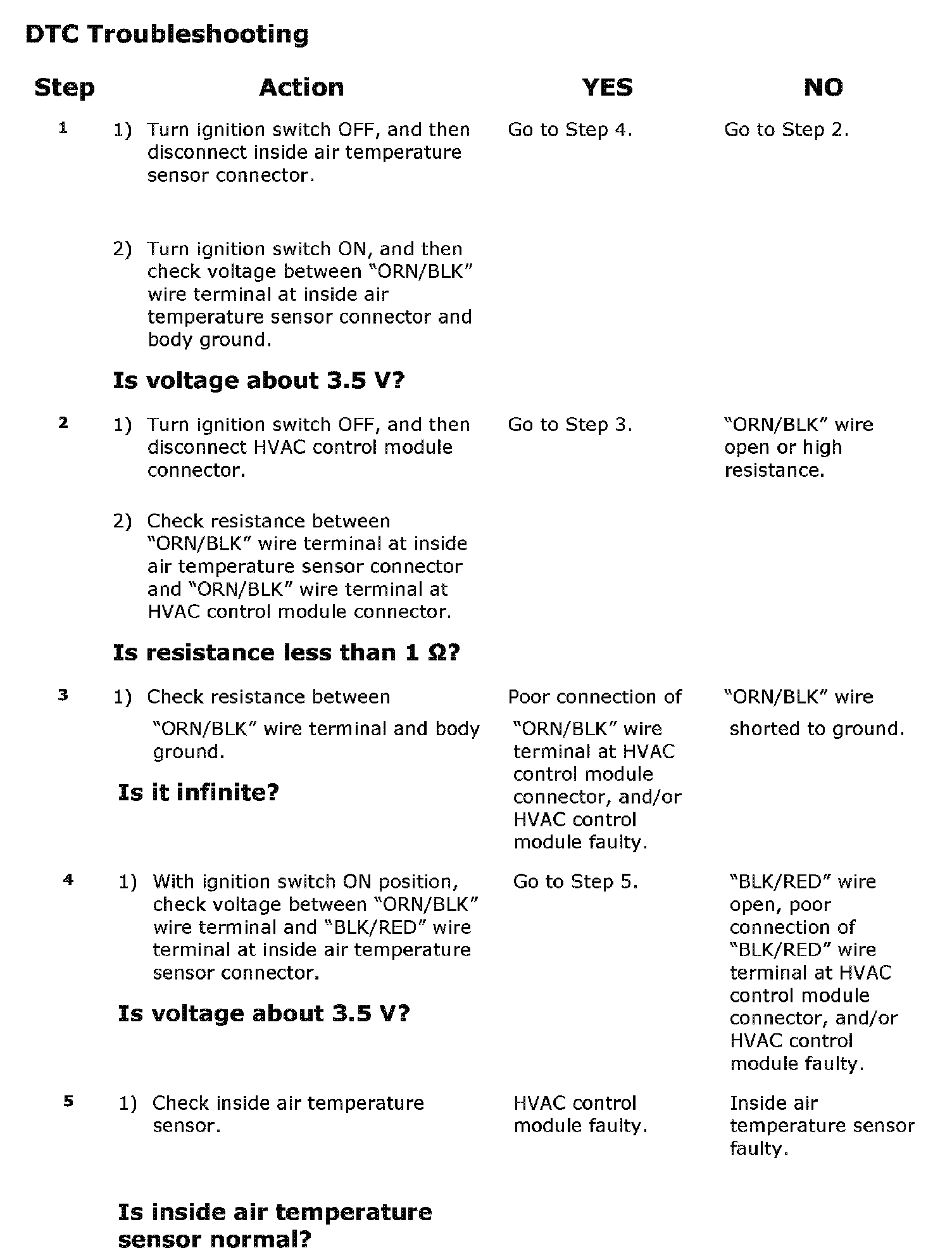

Step 1 - 5:




DTC Troubleshooting
