B1210

DTC B1210: Rear Right (Weight) Sensor Crush Detected

CAUTION:
- Be sure to perform Air Bag Diagnostic System Check before starting diagnosis according to flow.
- When measurement of resistance or voltage is required in this flow, use a tester along with a correct terminal adapter from special tool (Connector test adapter kit).
- When a check for proper connection is required, refer to Inspection of Intermittent and Poor Connections.
- If there is open circuit in air bag wire harness, connector or terminal is found damaged, replace the wire harness, connector and terminal as an assembly.

DTC Will Set when
A stress exceeding the specified value is inputted to the RR weight sensor.

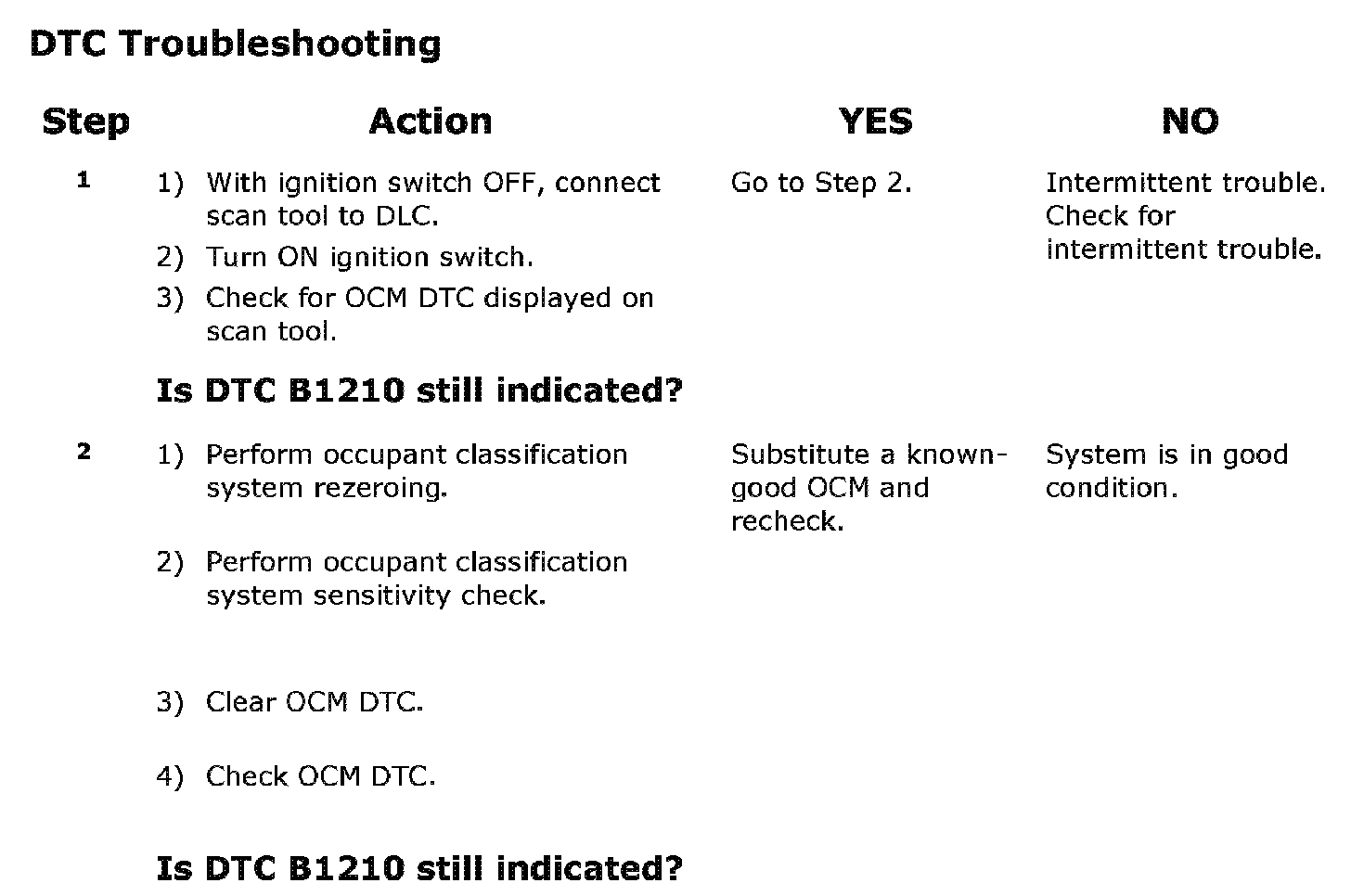

Flow Test Description

Step 1 - 2:

Step 1: Check for DTC.
Step 2: Check for RR weight sensor.

NOTE: Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Clear DTCs.
- Repeat Air Bag Diagnostic System Check to confirm that the trouble has been corrected.
- Perform occupant classification system rezeroing.
- Perform occupant classification system sensitivity check.
