Engine & Emission Control Input/Output Table

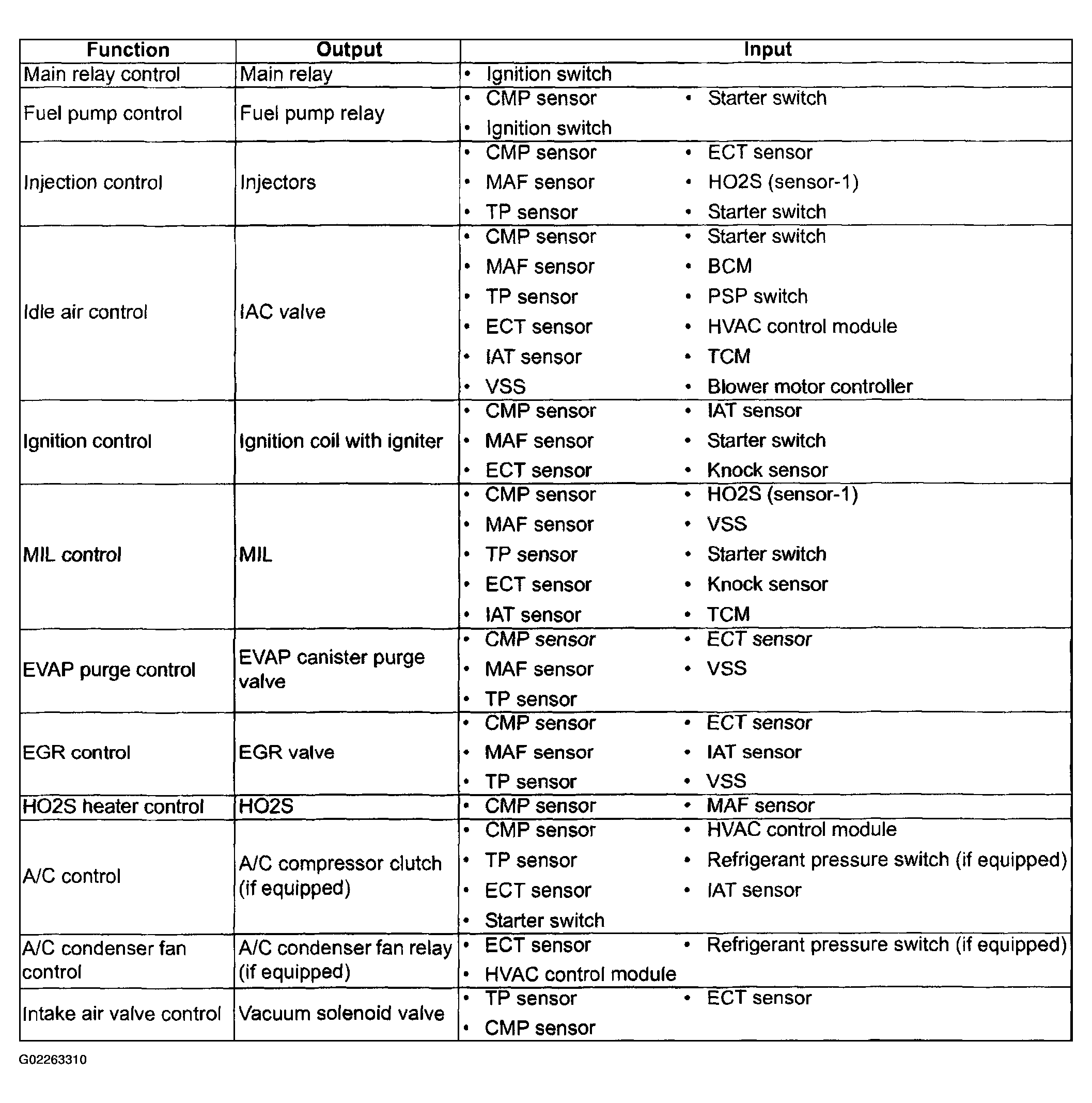

Fig 1: Engine and Emission Control Input/Output Table
G02263310Courtesy of SUZUKI OF AMERICA CORP.
