O/D OFF Switch Inspection

  1. Remove front center console box.
  2. Disconnect O/D OFF switch connector (1).
  3. Check continuity between O/D OFF switch terminals.

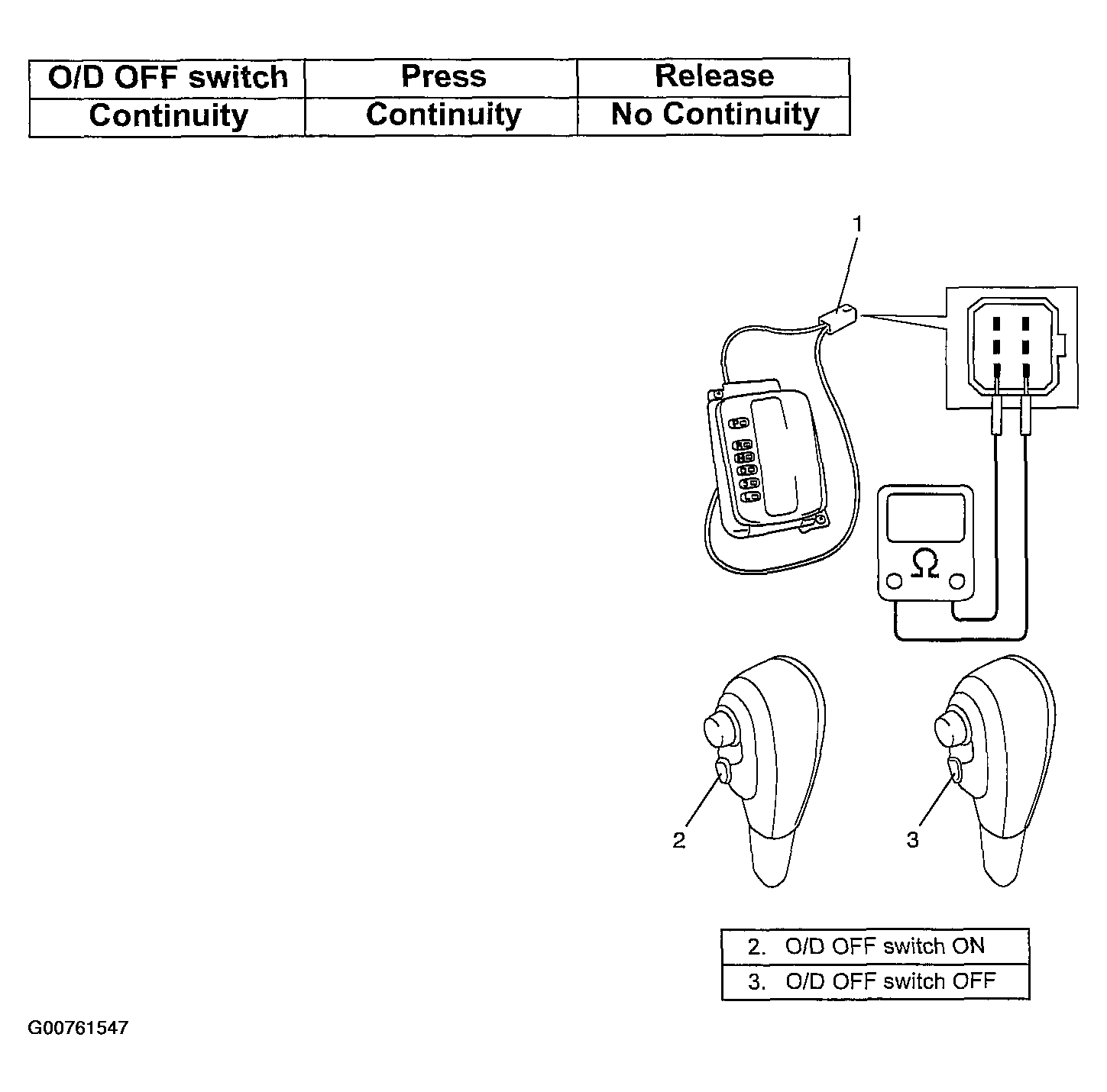

Fig 1: Checking Continuity Between O/D OFF Switch Terminals
G00761547Courtesy of SUZUKI OF AMERICA CORP.
