Input Shaft Speed Sensor Removal and Installation: Removal

  1. Disconnect negative cable at battery.
  2. Hoist vehicle.
  3. Disconnect input shaft speed sensor connector.
  4. Remove input shaft speed sensor (1) from transmission.

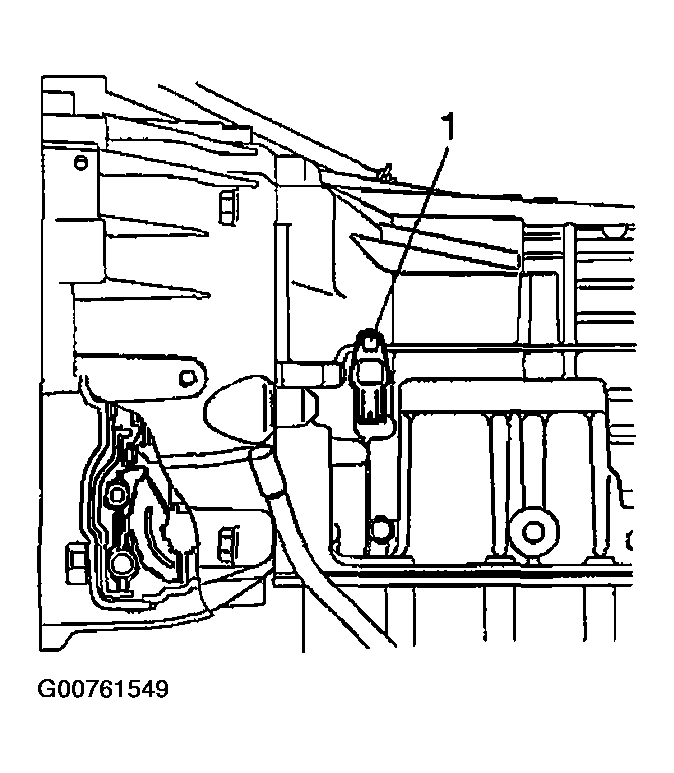

Fig 1: Removing Input Shaft Speed Sensor
G00761549Courtesy of SUZUKI OF AMERICA CORP.
