Clutch/Brake Functions of Automatic Transmission

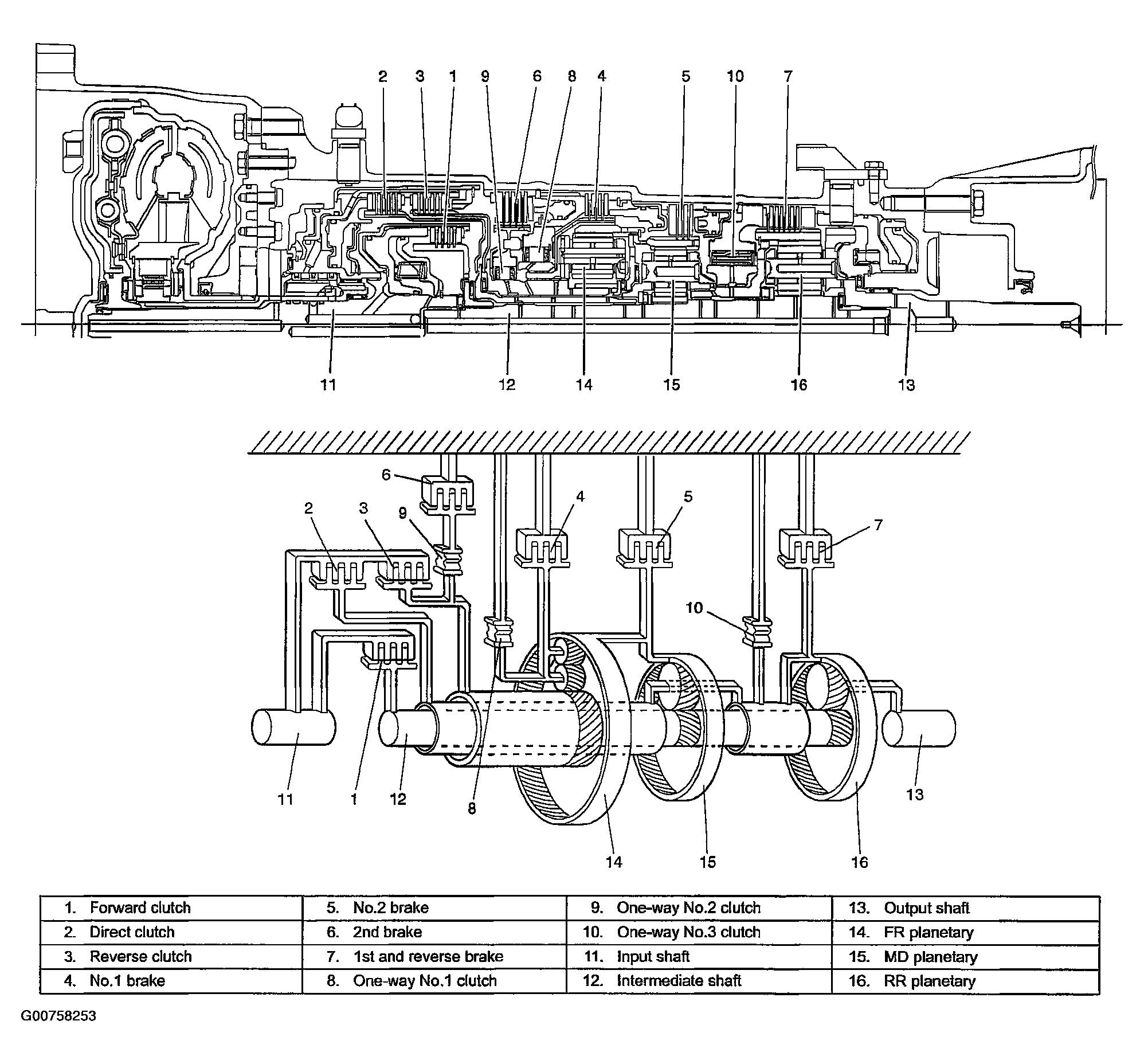

Fig 1: Exploded View Of Clutch/Brake Automatic Transmission
Courtesy of SUZUKI OF AMERICA CORP.

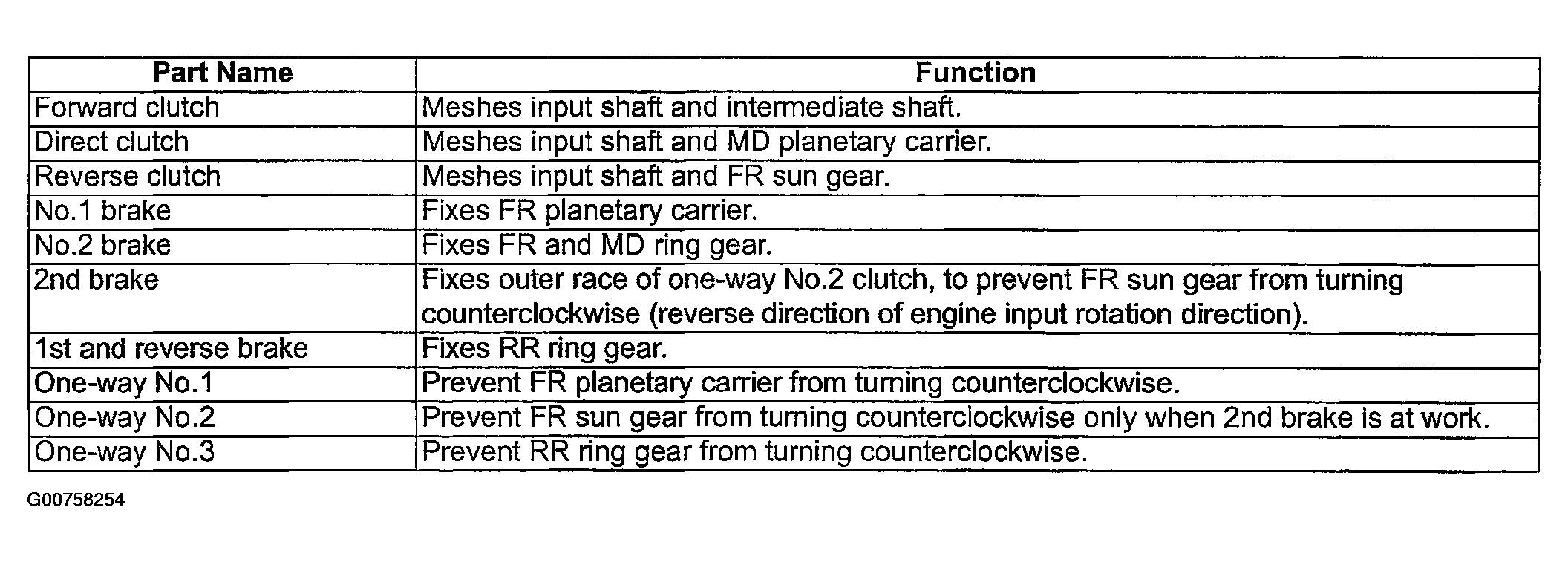

Fig 2: Identifying Functions Of Clutch/Brake Automatic Transmission
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
