P/S Pump Construction: Components

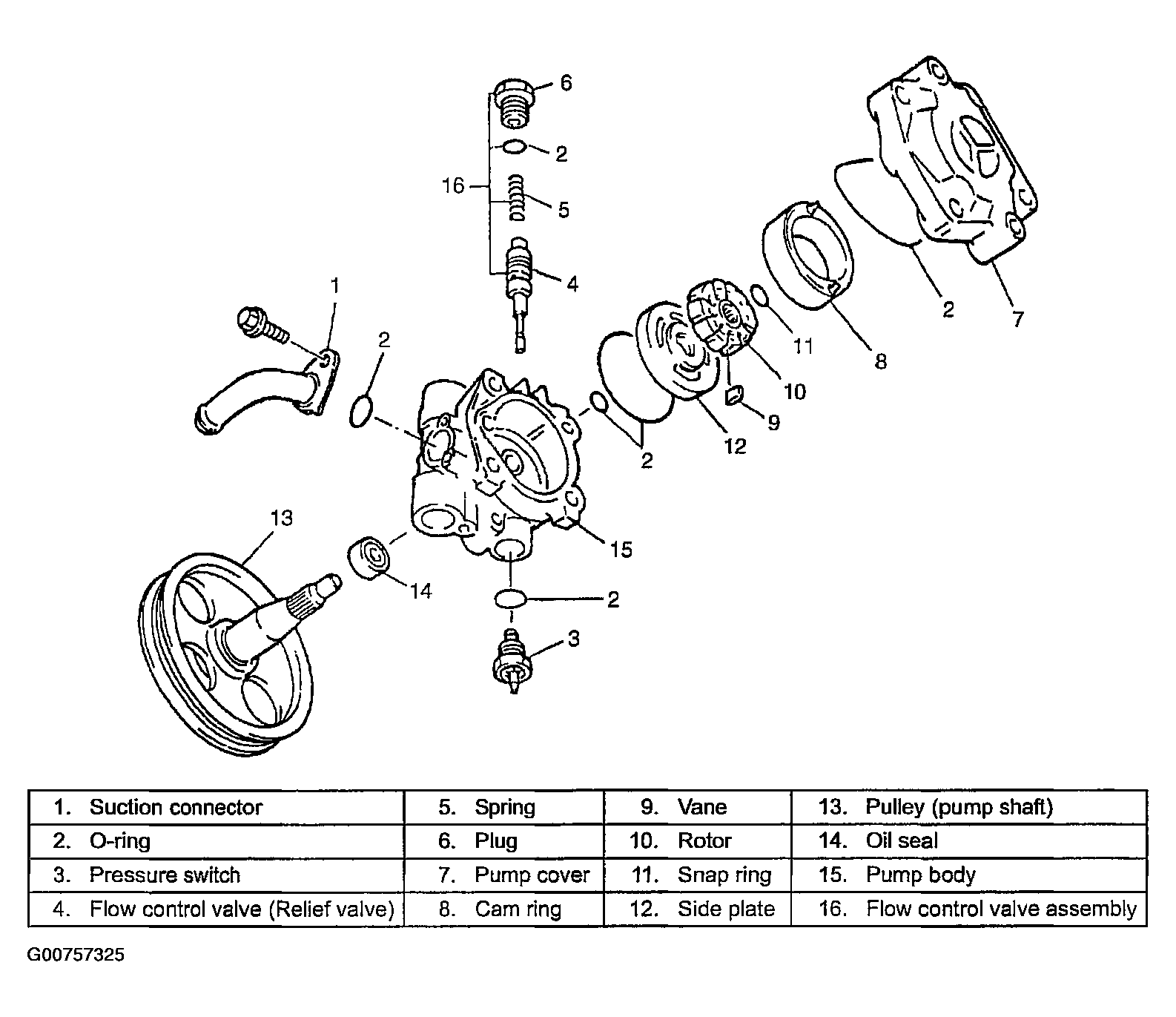

Fig 1: Identifying Power Steering Pump Construction
G00757325Courtesy of SUZUKI OF AMERICA CORP.

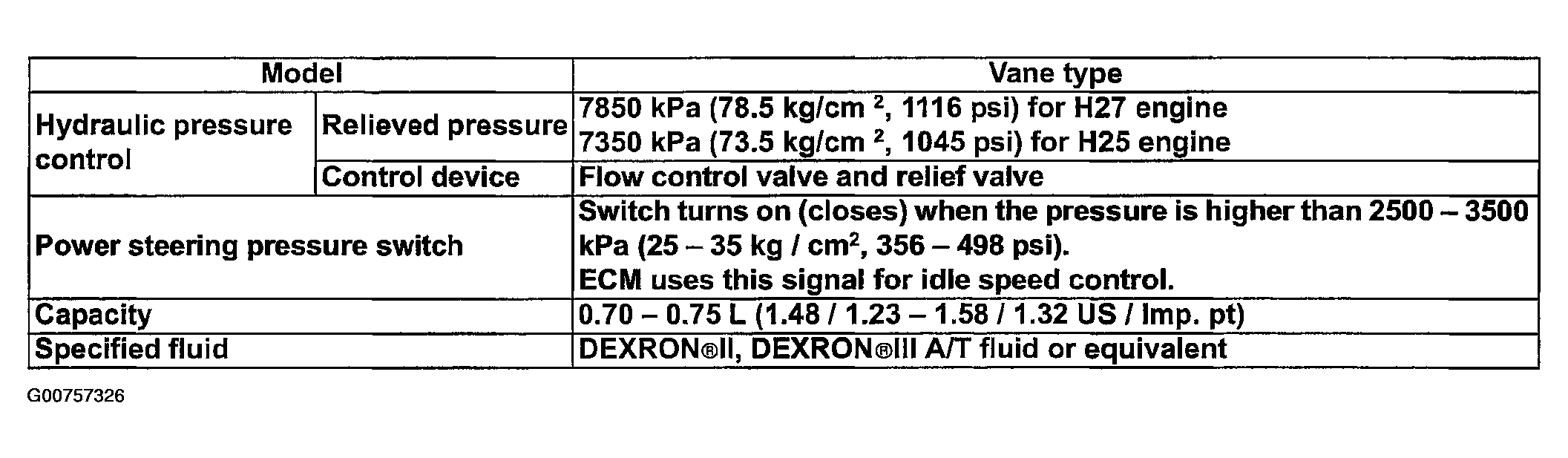

Fig 2: Power Steering Pump Specifications Chart
G00757326Courtesy of SUZUKI OF AMERICA CORP.
