Repair Instructions: Installation

Install in reverse order of removal, noting the followings.

• Seat belt anchor bolts should have an unified fine thread (7/16-20 UNF). Under no circumstances should any different sized or metric screw threads be used.
• Connect yellow connector for seat belt pretensioner securely if equipped.
• Enable air bag system referring to DISABLING & ACTIVATING AIR BAG SYSTEM if it is disabled.

Install in reverse order of removal, noting the followings.

• Seat belt anchor bolts should have an unified fine thread (7/16-20 UNF). Under no circumstances should any different sized or metric screw threads be used.

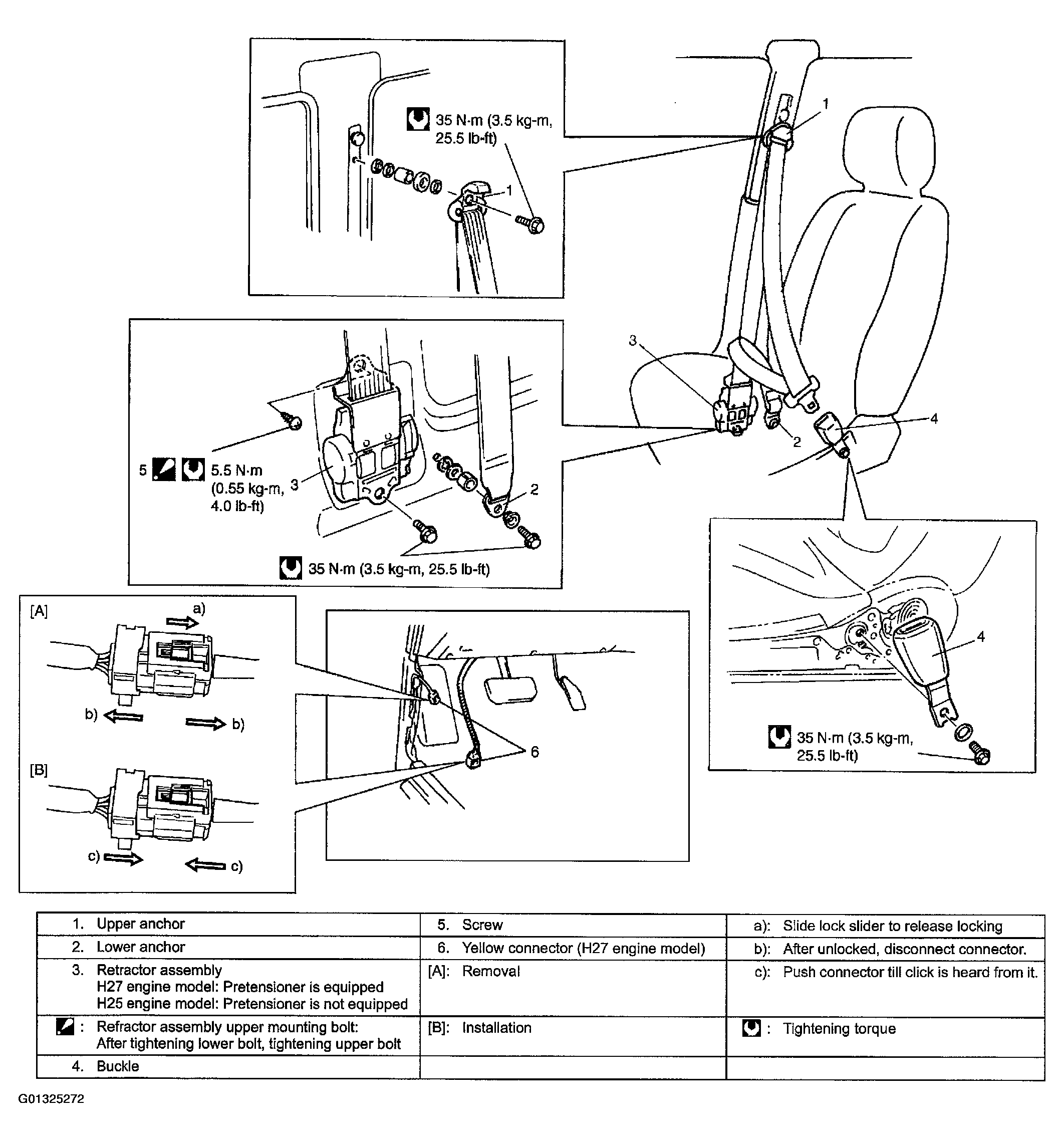

Fig 1: Identifying Second Rear Seat Belt Components

Courtesy of SUZUKI OF AMERICA CORP.

1. Tightening torque

Install in reverse order of removal, noting the followings.

• Seat belt anchor bolts should have an unified fine thread (7/16-20 UNF). Under no circumstances should any different sized or metric screw threads be used.

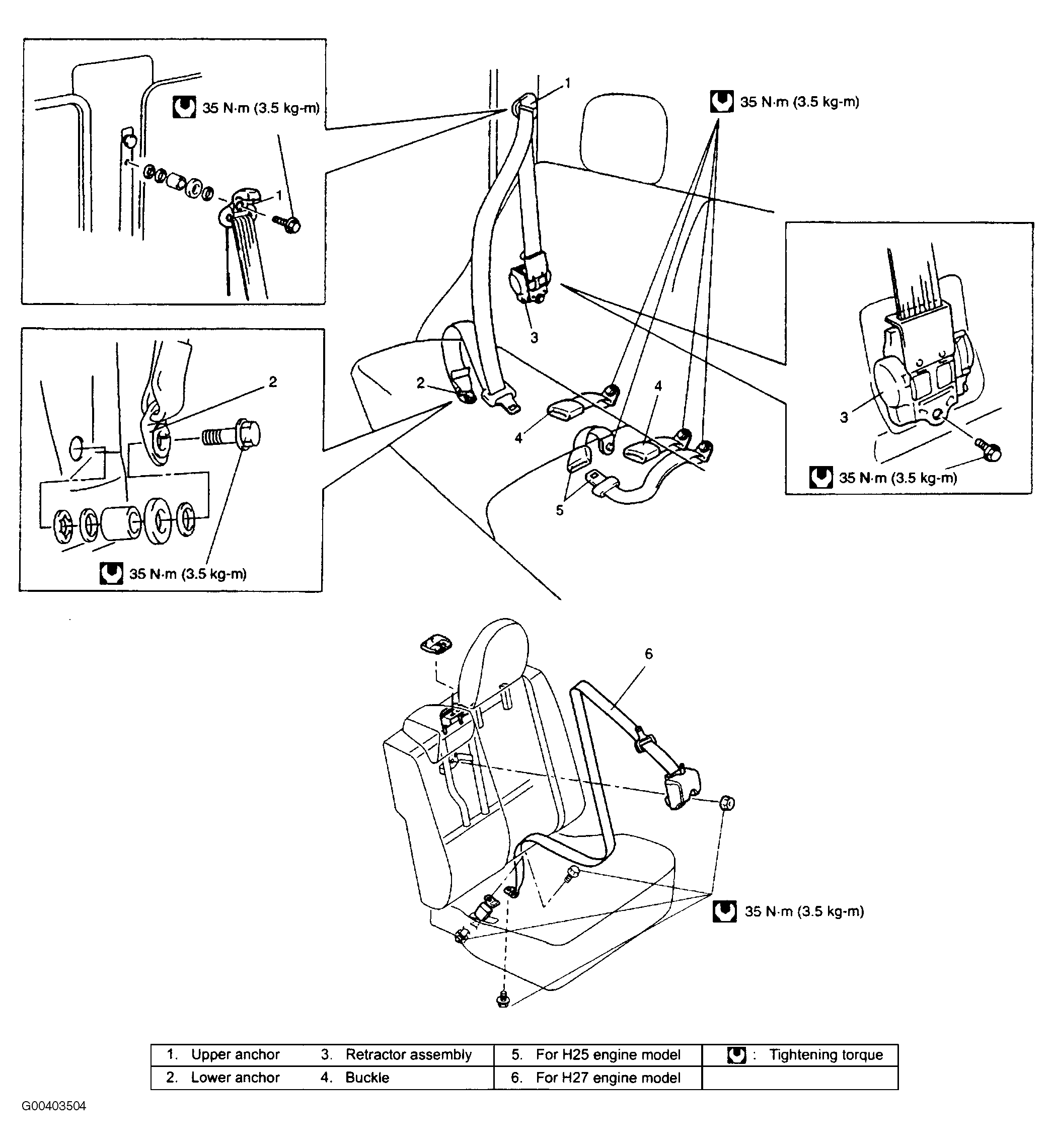

  Fig 1: Identifying Third Rear Seat Belt Components

  Courtesy of SUZUKI OF AMERICA CORP.
  1. Tightening torque
