Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Diode (E217) | Left side of dash. See Figure . |
| Diode #1 (E55) | Right side of dash. See Figure . |

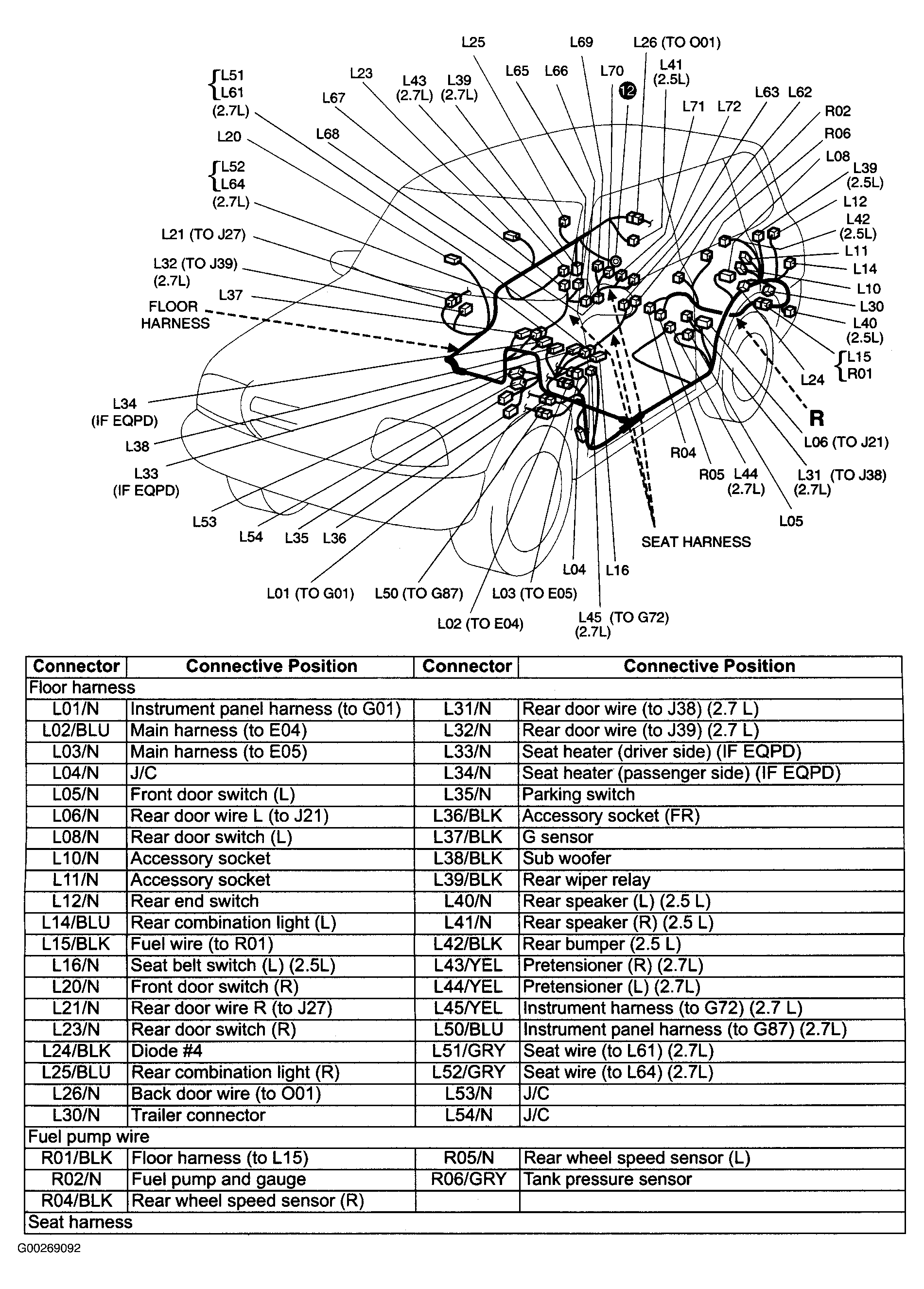

| Diode #4 | At left rear wheel well. See Figure . |
| (Front) Blower Resistor (E48) | Right kick panel. See Figure . |
| Rear Blower Fan Resistor (2.7L) | Left rear of cargo area. See Figure . |
