Noise Suppressor Removal & Installation: Removal

  1. Unwrap tape from noise suppressor (1).
  2. Disconnect coupler of noise suppressor (1).
  3. Remove noise suppressor (1) from harness (2).

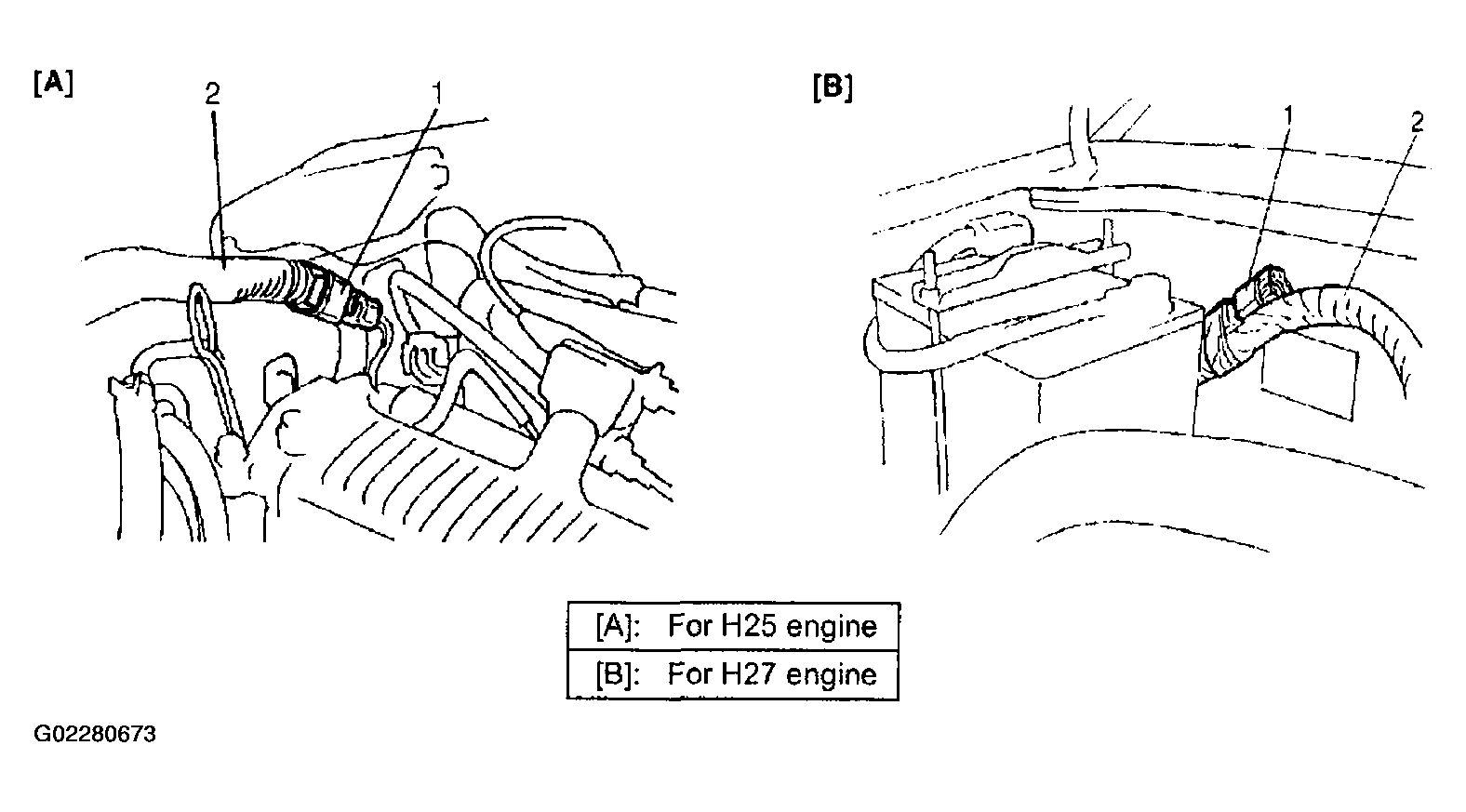

    Fig 1: Removing Noise Suppressor
    G02280673Courtesy of SUZUKI OF AMERICA CORP.
