Electronic Control System Wiring Diagram

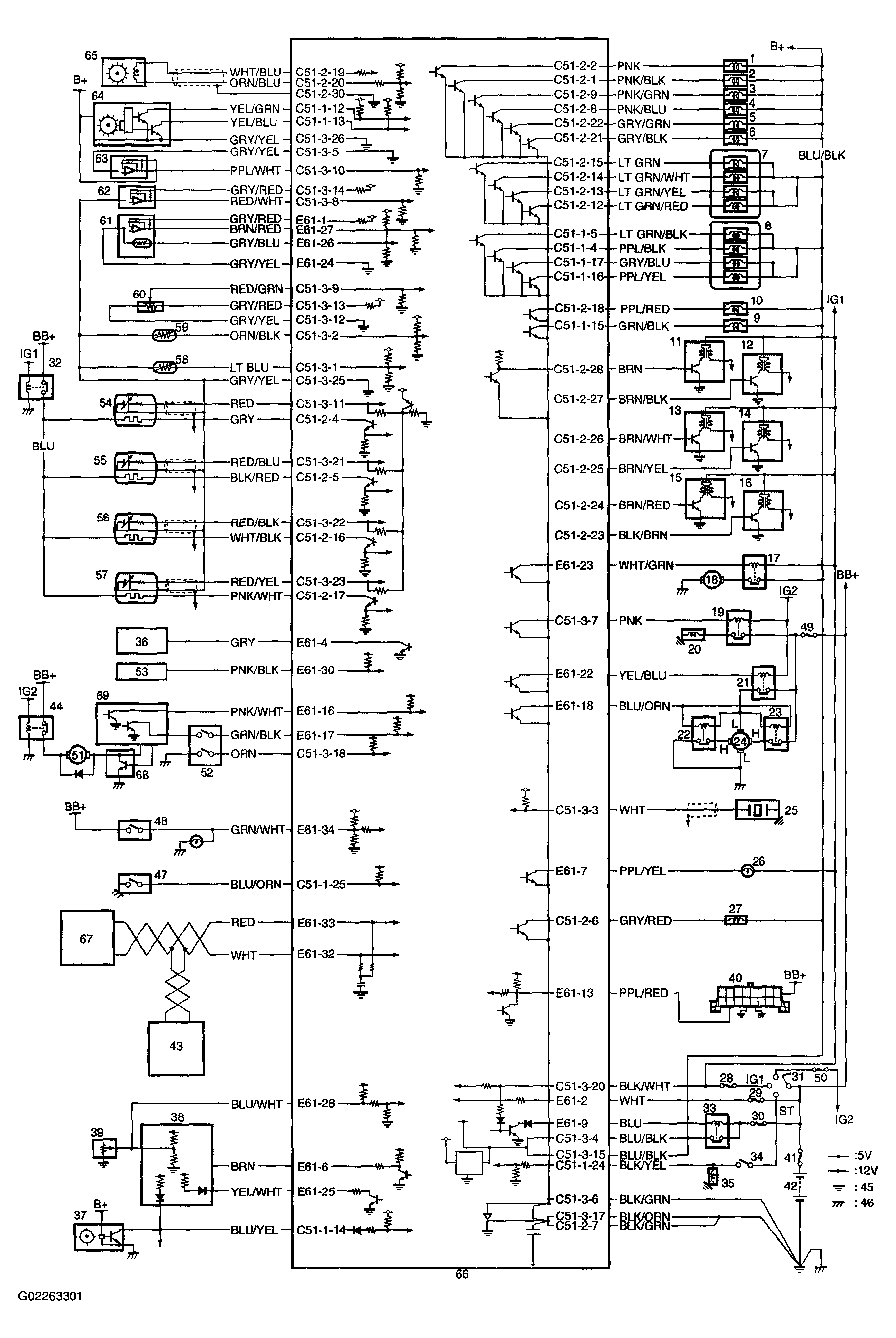

Fig 1: Electronic Control System Wiring Diagram

Courtesy of SUZUKI OF AMERICA CORP.

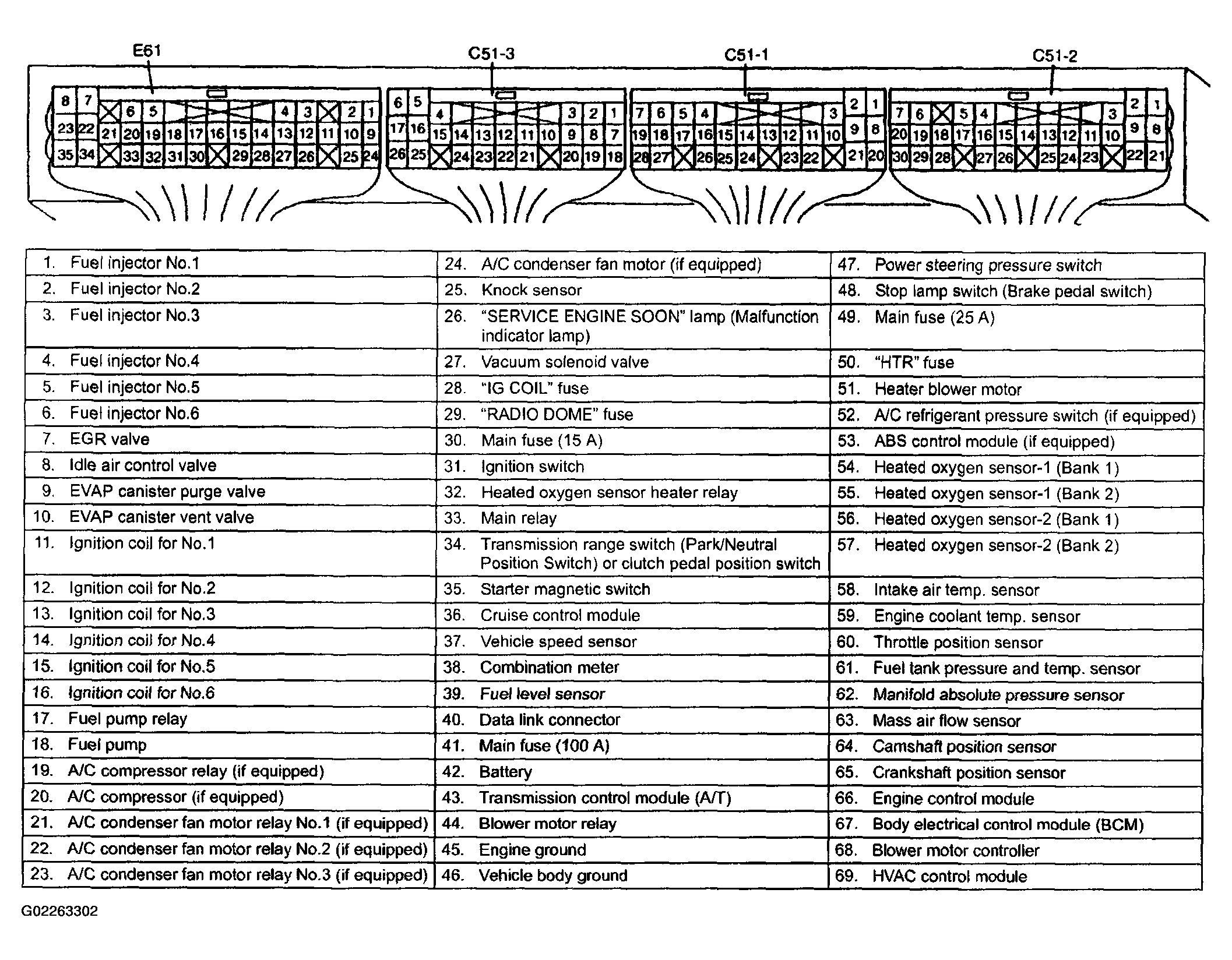

Fig 2: Terminal Arrangement Of ECM Connector (Viewed From Harness Side)

Courtesy of SUZUKI OF AMERICA CORP.

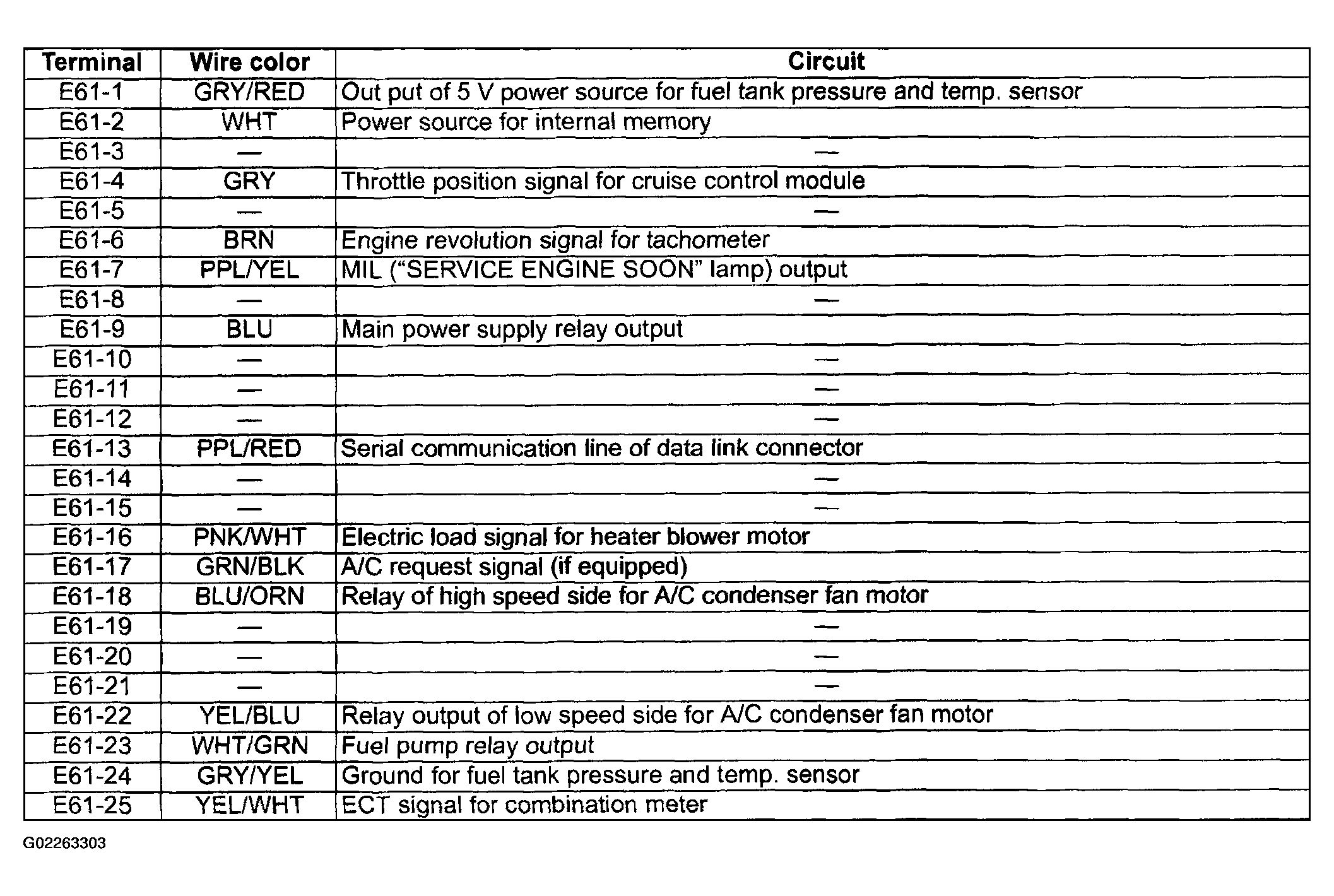

Fig 3: Identifying ECM Connector "E61" Terminal Circuits (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

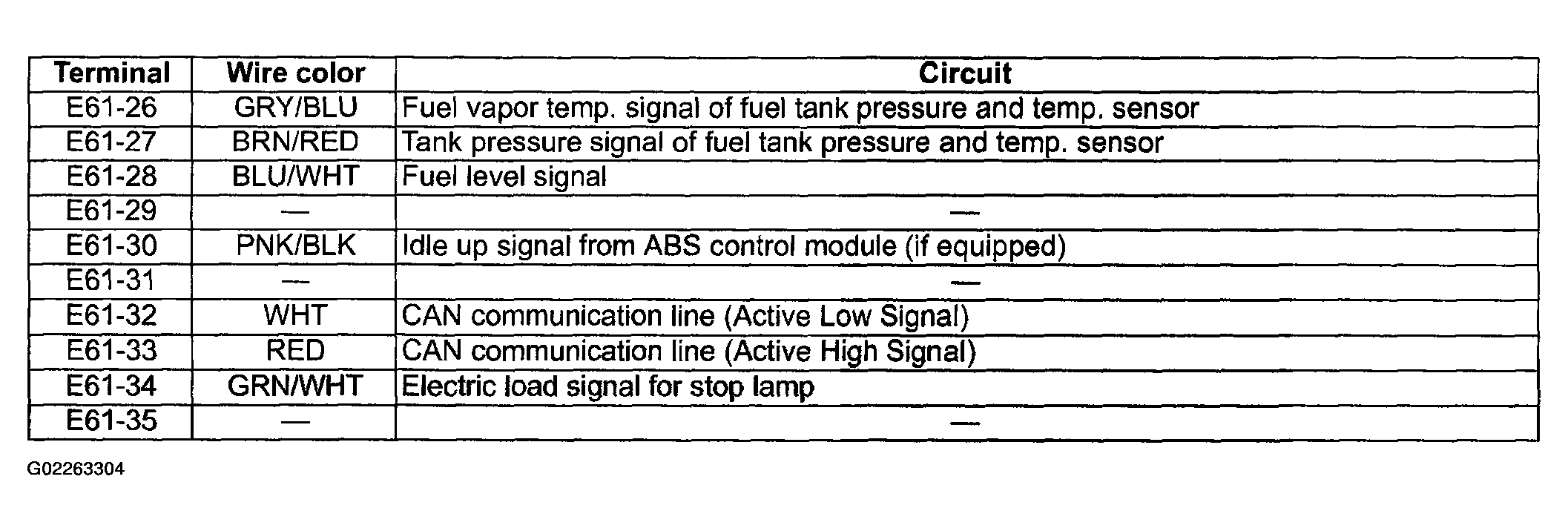

Fig 4: Identifying ECM Connector "E61" Terminal Circuits (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

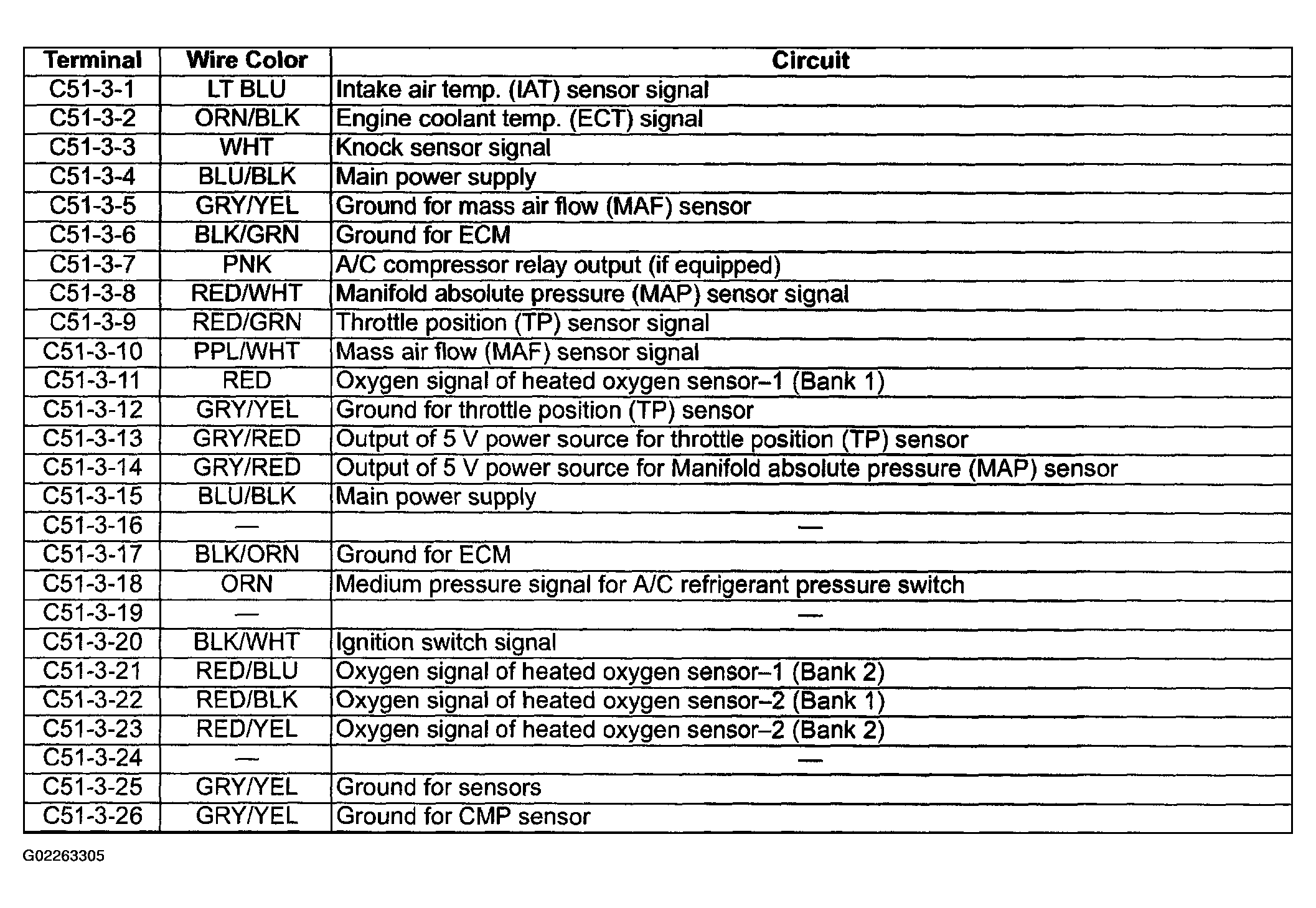

Fig 5: Identifying ECM Connector "C51-3" Terminal Circuits

Courtesy of SUZUKI OF AMERICA CORP.

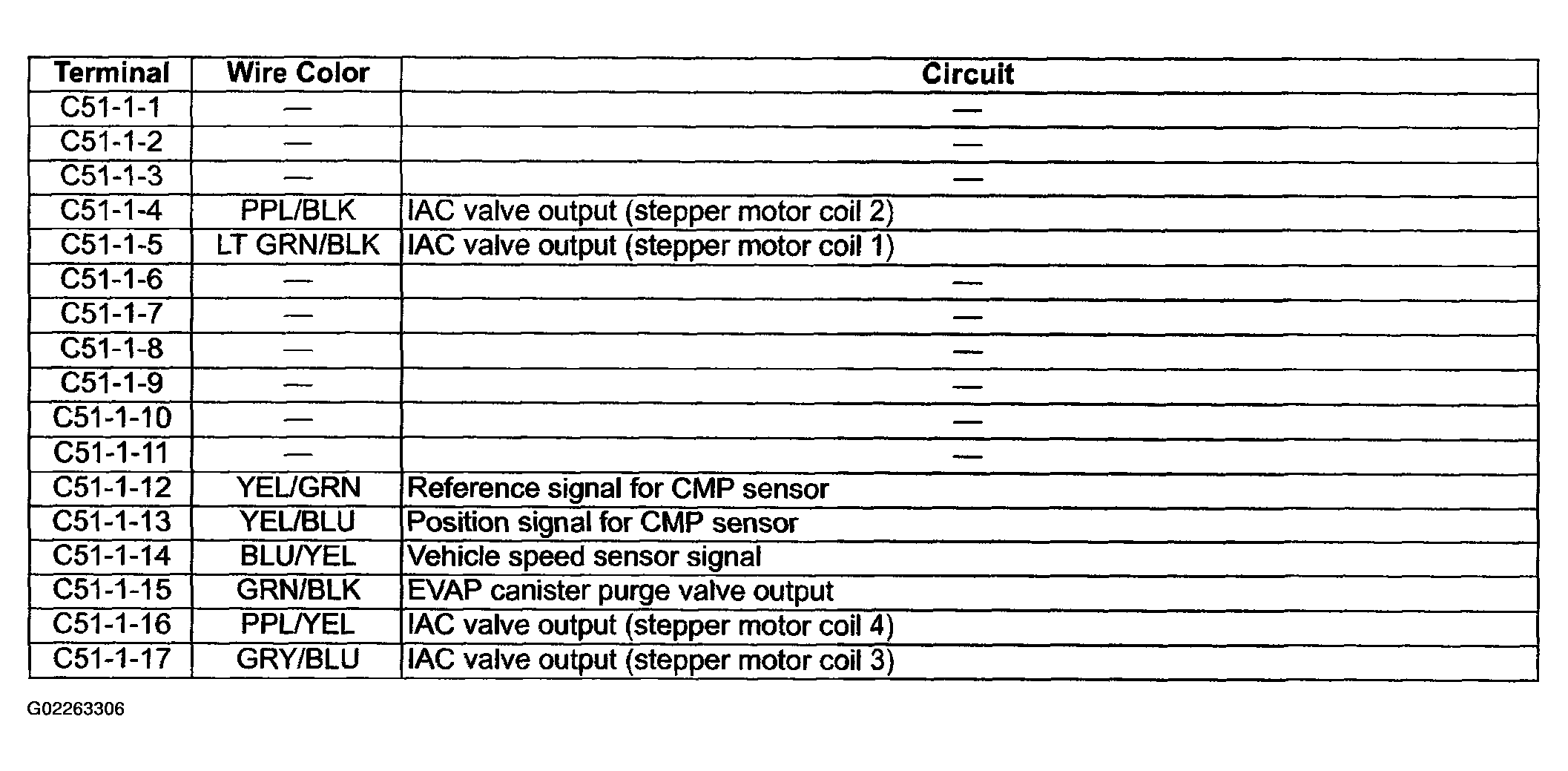

Fig 6: Identifying ECM Connector "C51-1" Terminal Circuits (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

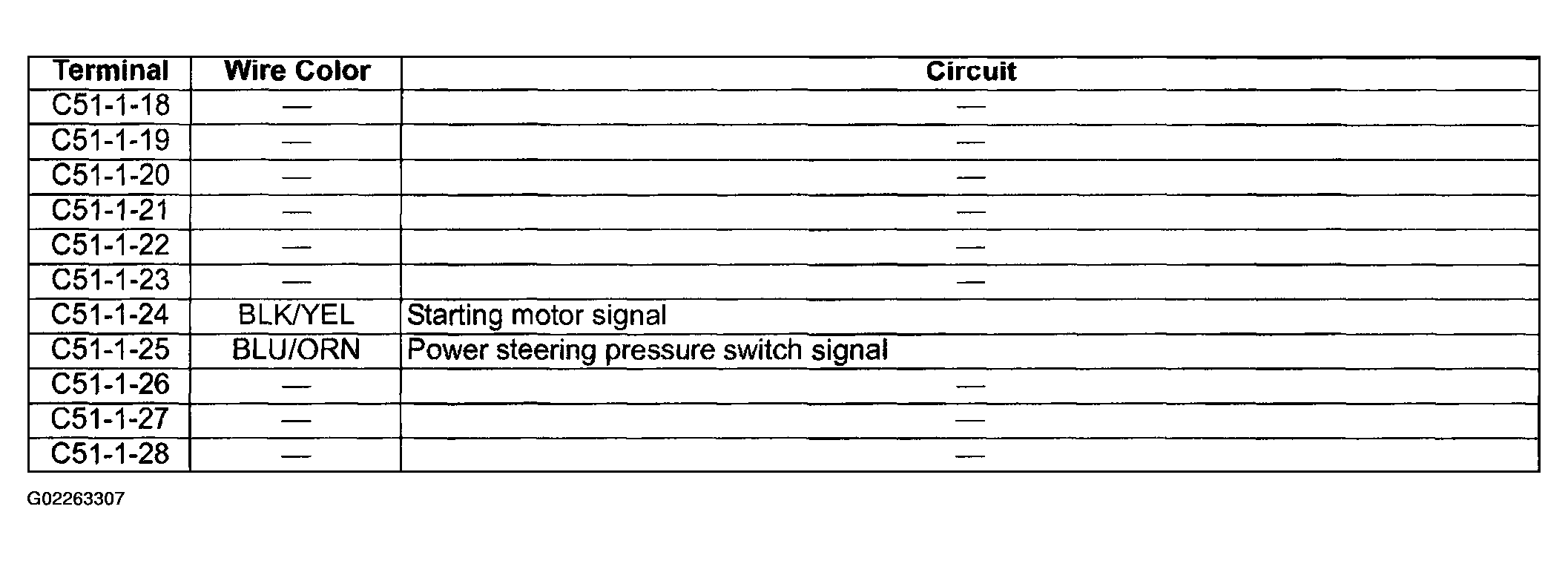

Fig 7: Identifying ECM Connector "C51-1" Terminal Circuits (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

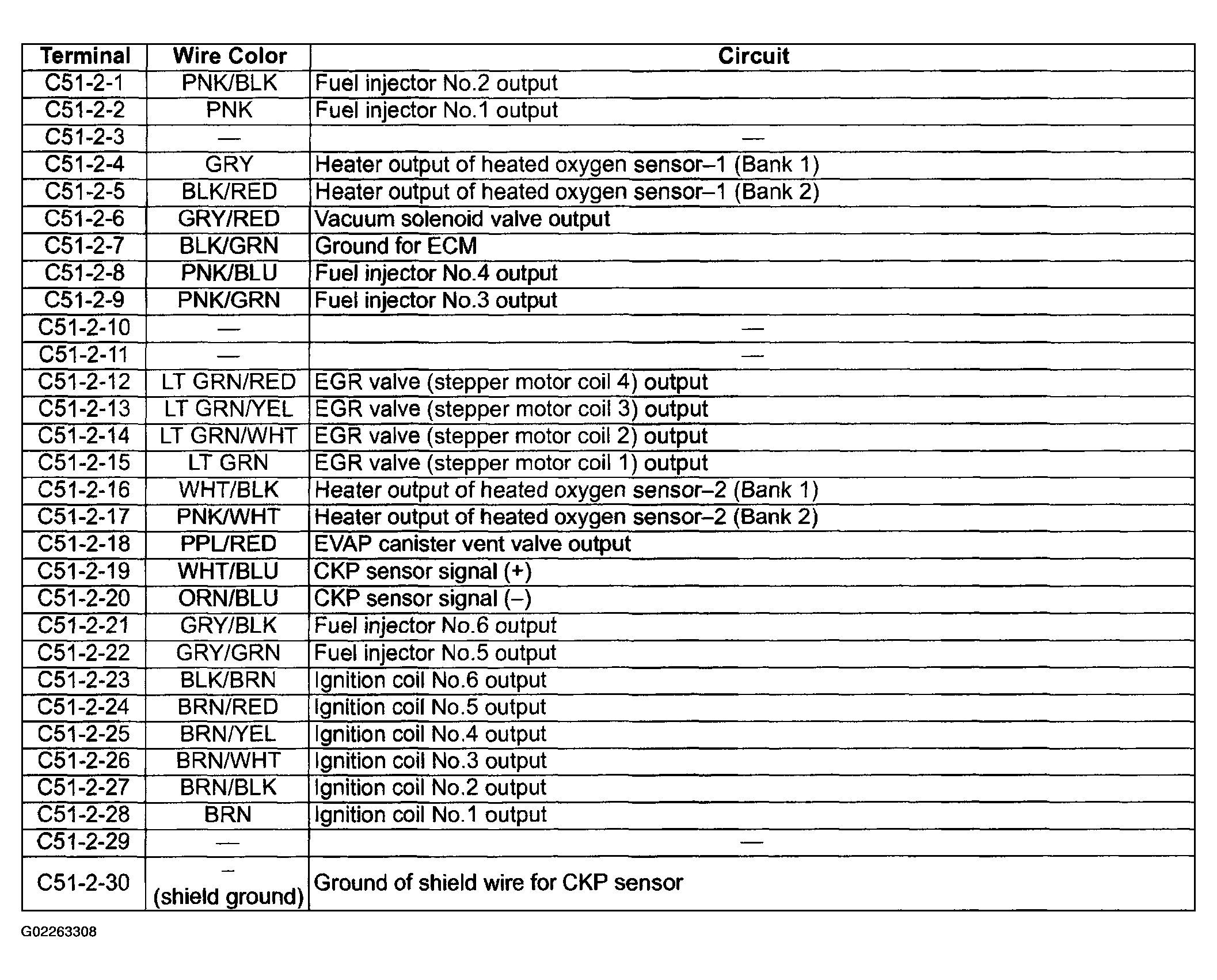

Fig 8: Identifying ECM Connector "C51-2" Terminal Circuits

Courtesy of SUZUKI OF AMERICA CORP.
