Fuel Pump Circuit Inspection: Troubleshooting

CAUTION: Check to make sure that connection is made between correct terminals. Wrong connection can cause damage to ECM, wire harness etc.

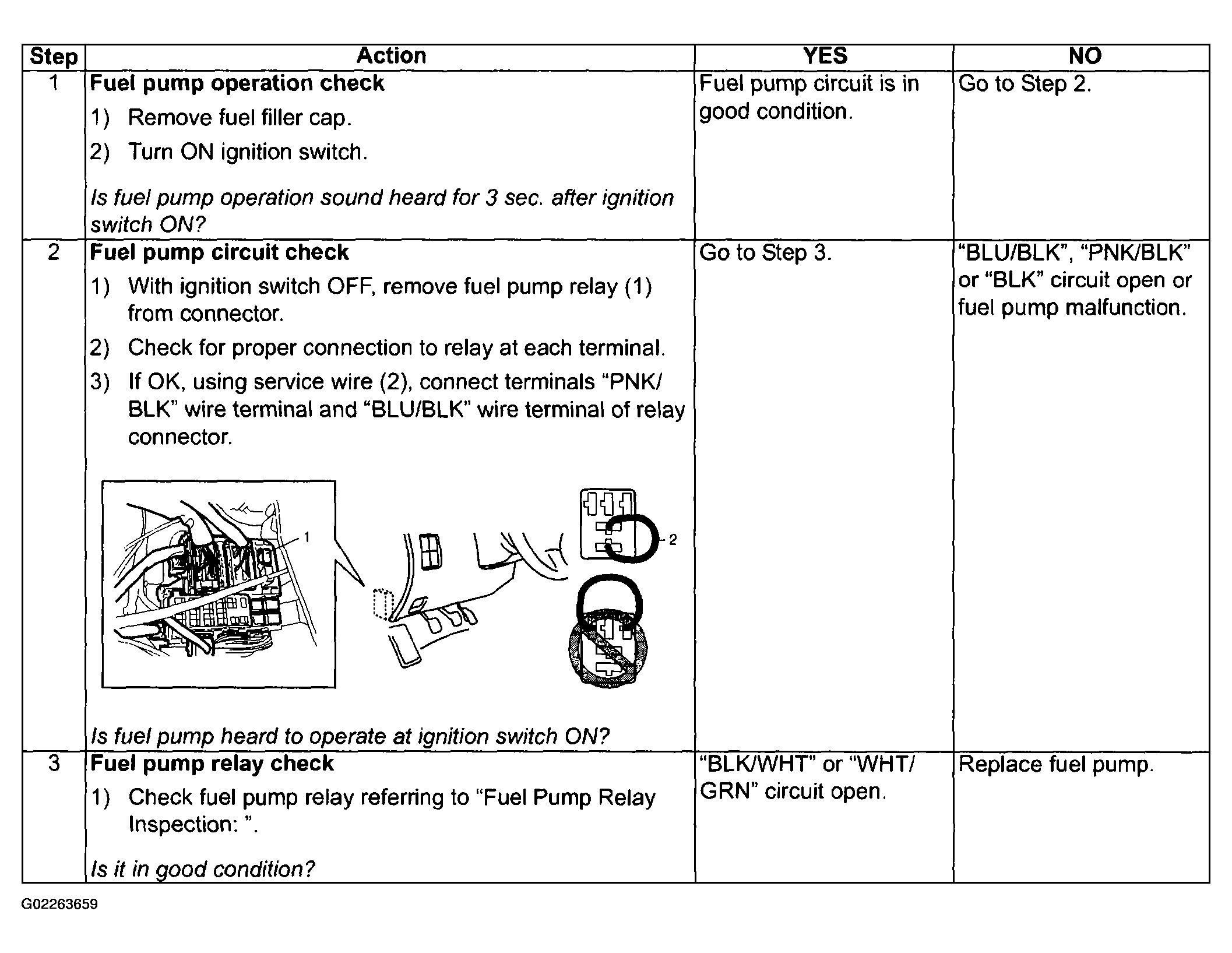

Fig 1: Fuel Pump Circuit Troubleshooting
G02263659Courtesy of SUZUKI OF AMERICA CORP.
