DTC P0430: Catalyst System Efficiency below Threshold (Bank 2)
>>
P0430 Troubleshooting
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P0430 Troubleshooting

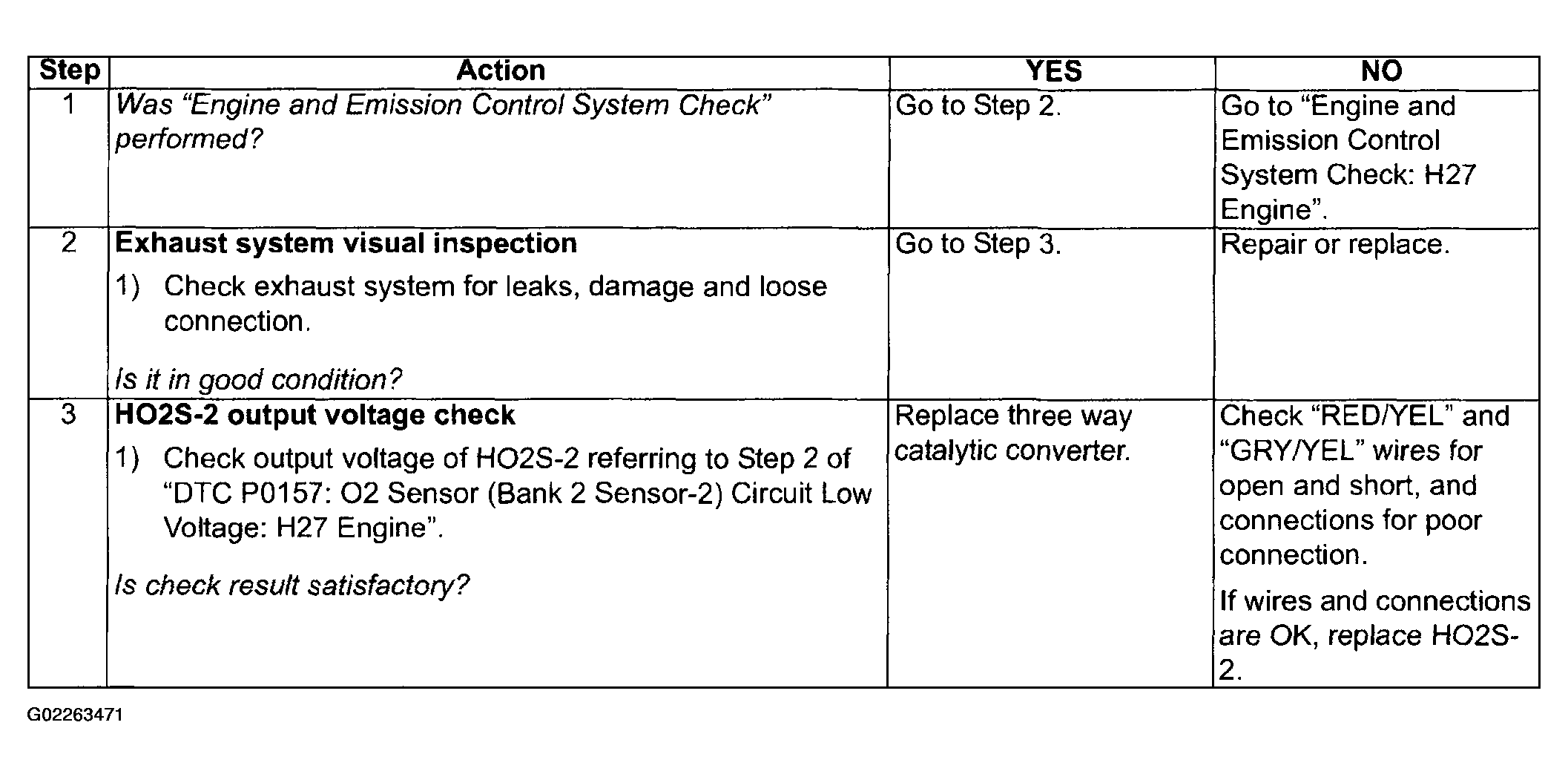

Fig 1: DTC P0430 Troubleshooting
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
