DTC P0118: Engine Coolant Temperature Circuit High
>>
P0118 Troubleshooting
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P0118 Troubleshooting

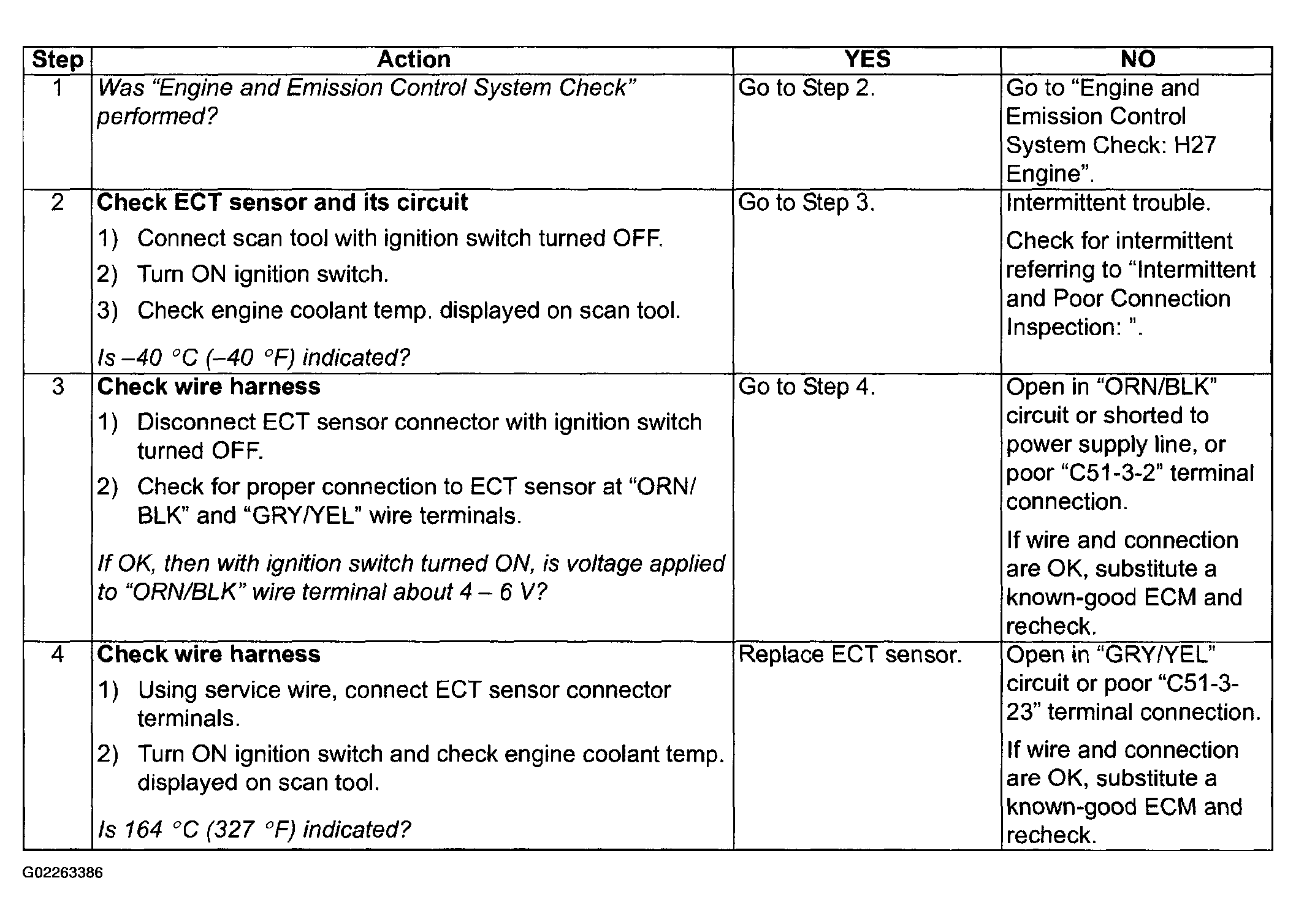

Fig 1: DTC P0118 Troubleshooting
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
