DTC P0107, P0108: Manifold Absolute Pressure Circuit Low Input/High Input
>>
P0107/P0108 Troubleshooting
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P0107/P0108 Troubleshooting

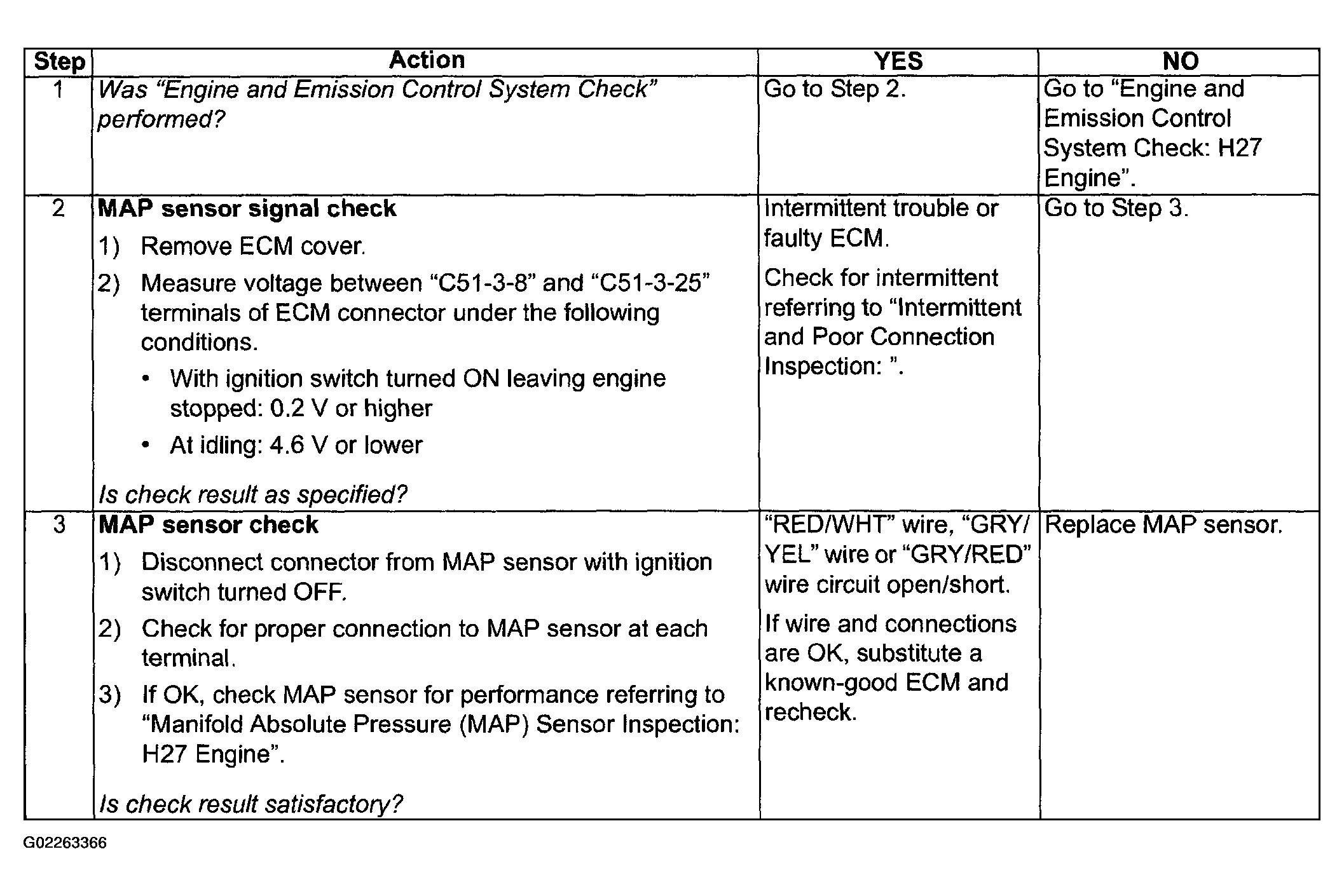

Fig 1: DTC P0107/P0108 Troubleshooting
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
