DTC P0103: Mass Air Flow Circuit High Input
>>
P0103 Troubleshooting
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P0103 Troubleshooting

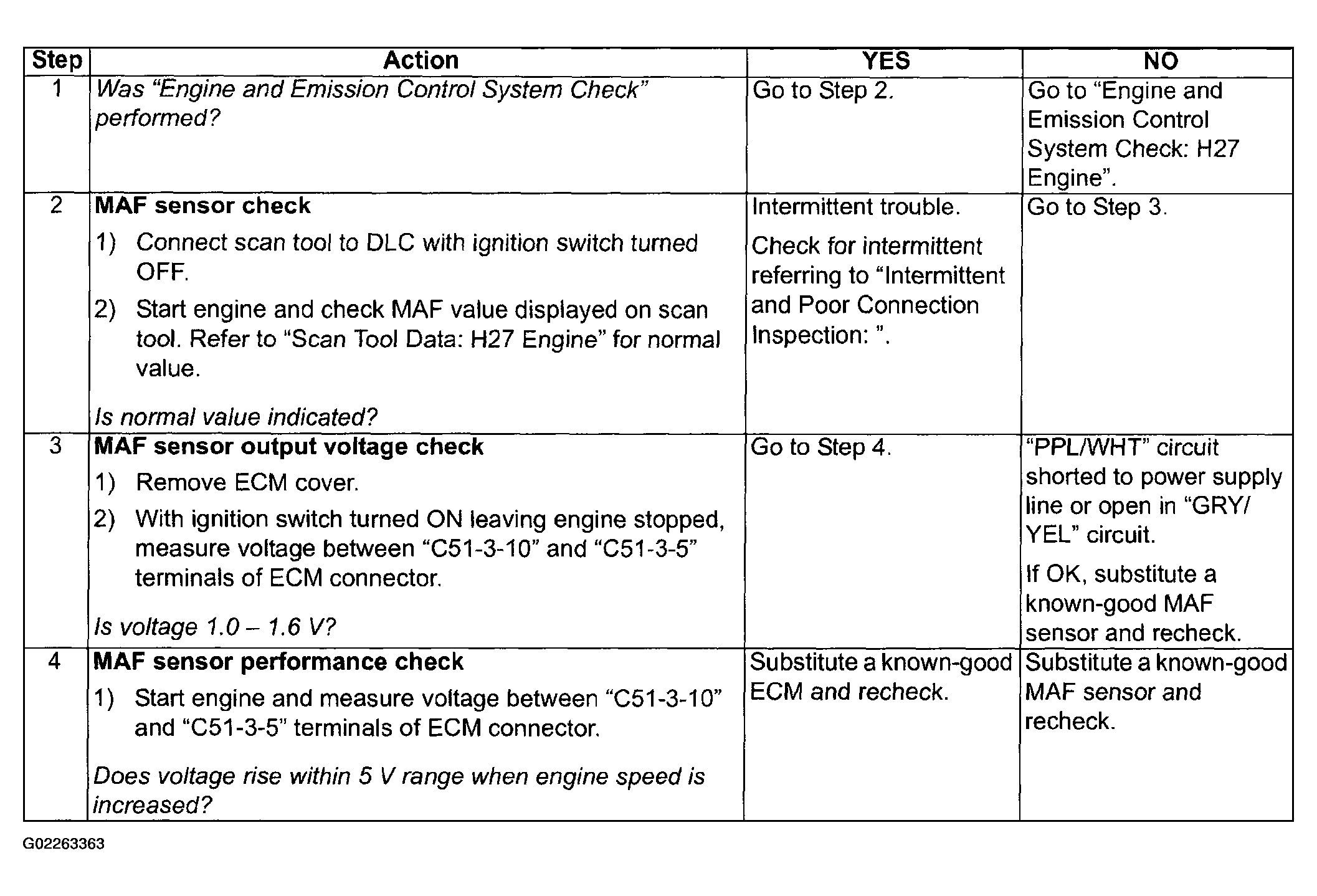

Fig 1: DTC P0103 Troubleshooting
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
