DTC P0102: Mass Air Flow Circuit Low Input
>>
P0102 Troubleshooting
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
P0102 Troubleshooting

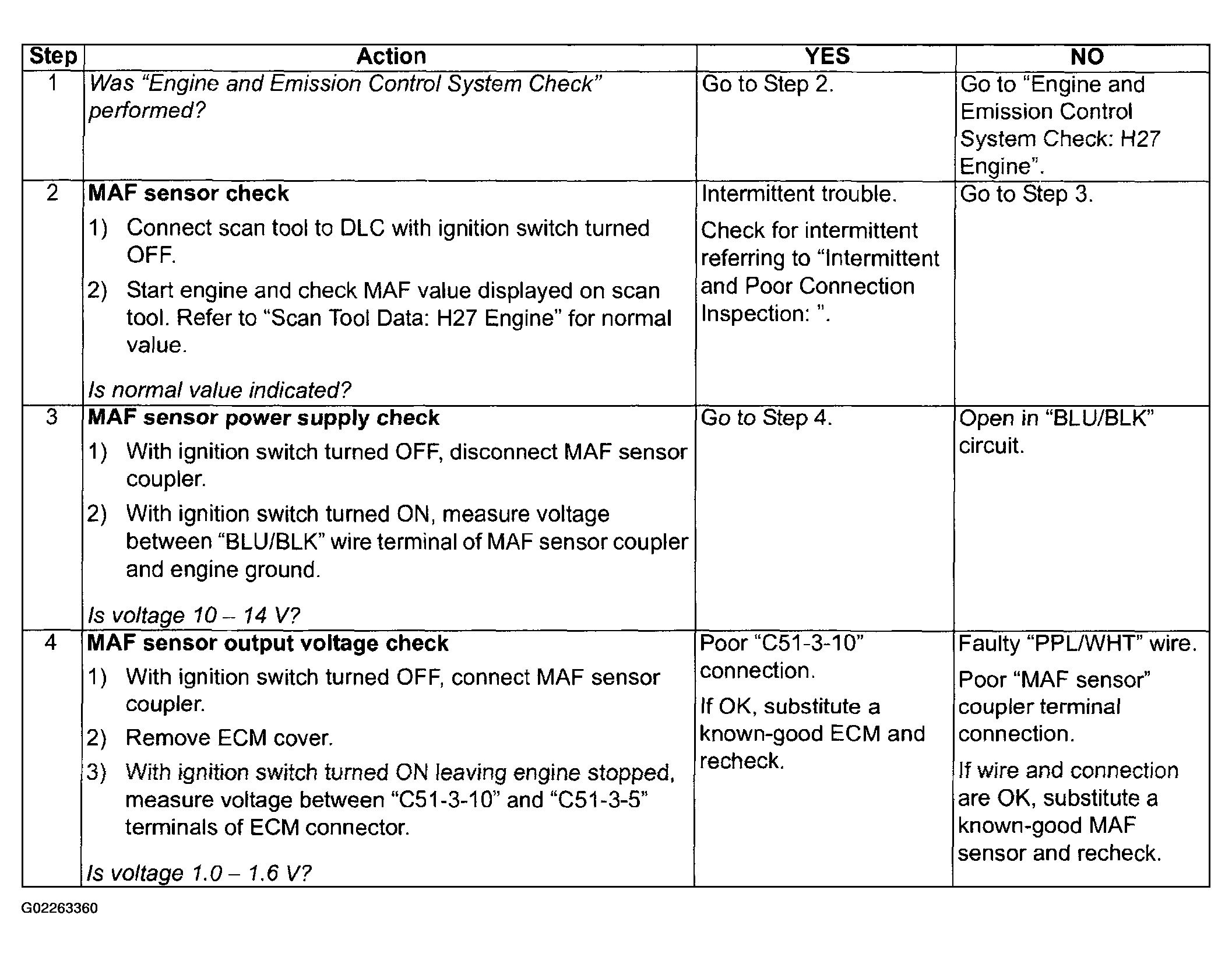

Fig 1: DTC P0102 Troubleshooting
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
