Engine Symptom Diagnosis

Perform troubleshooting referring to the following table when ECM (PCM) has detected no DTC and no abnormality has been found VISUAL INSPECTION  in and ENGINE BASIC CHECK  .

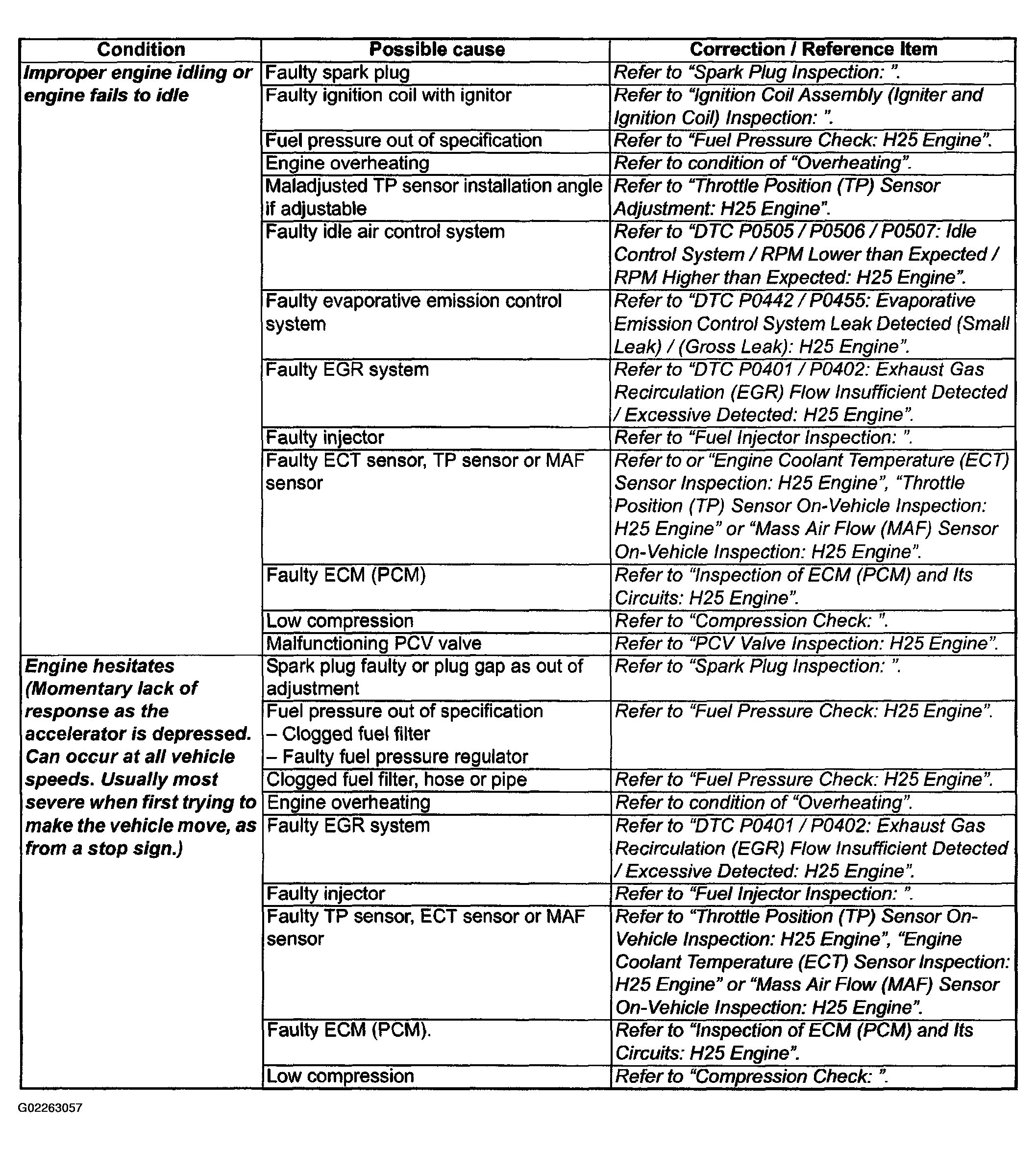

Fig 1: Engine Symptom Diagnosis Chart (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

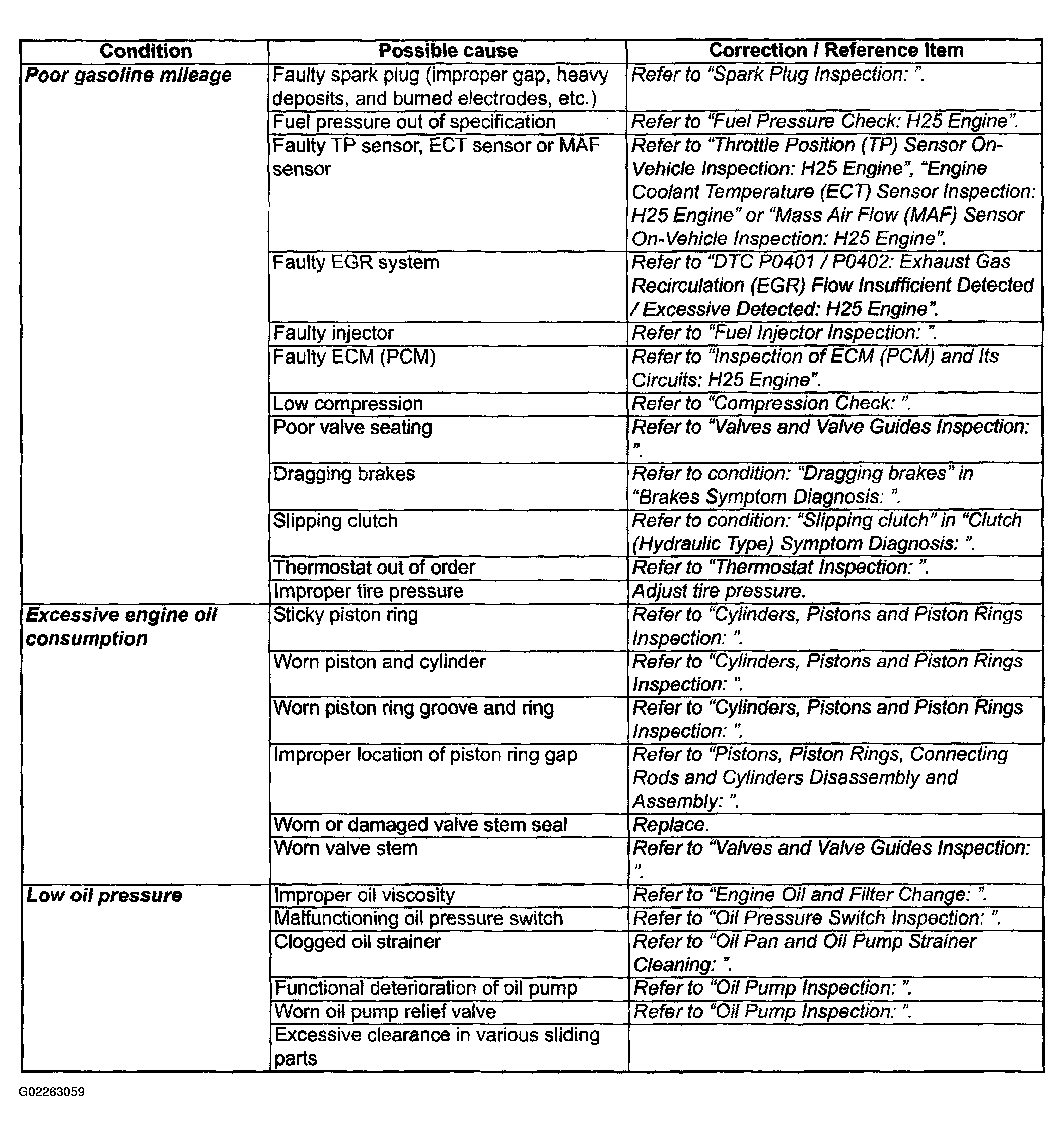

Fig 2: Engine Symptom Diagnosis Chart (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

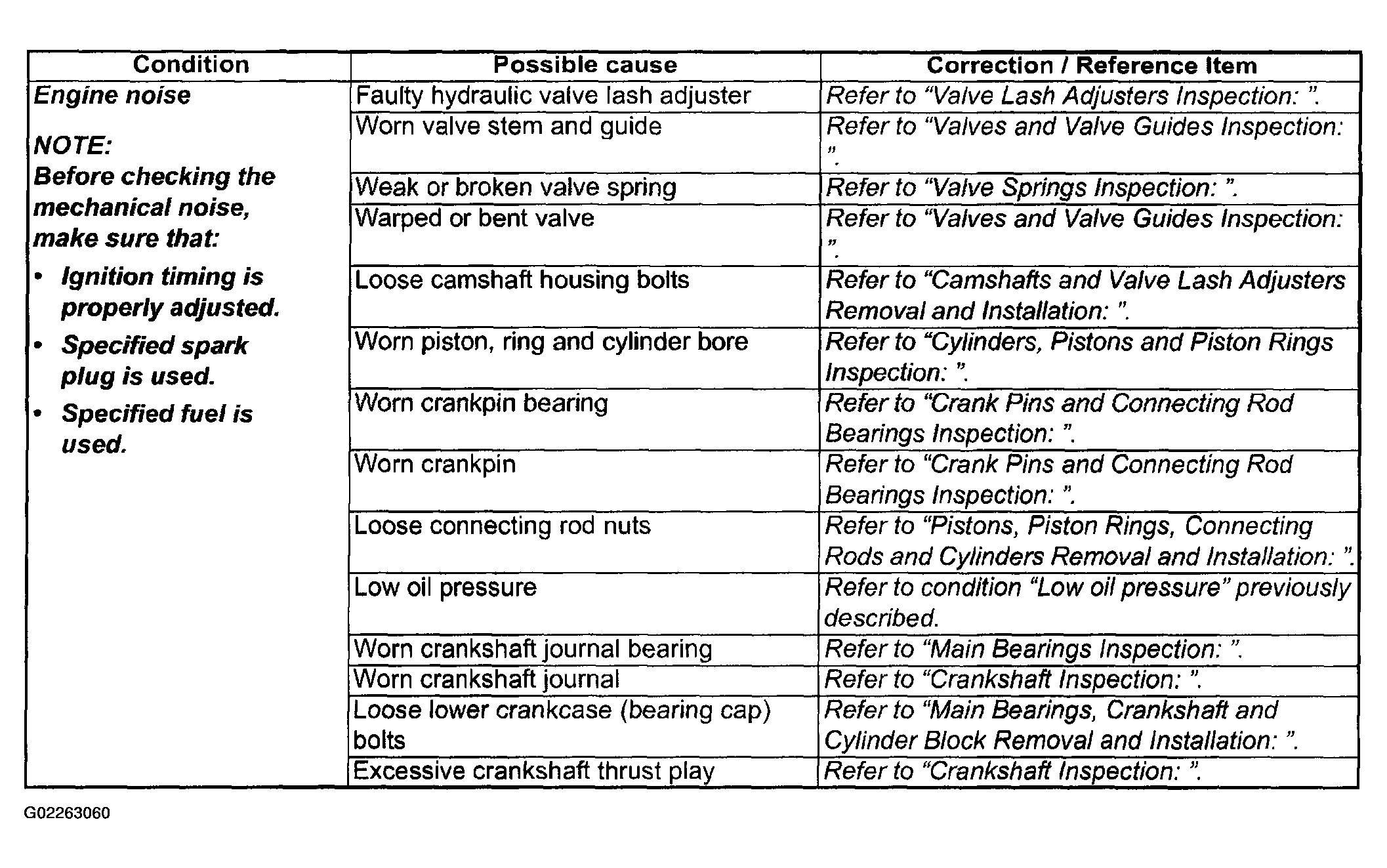

Fig 3: Engine Symptom Diagnosis Chart (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

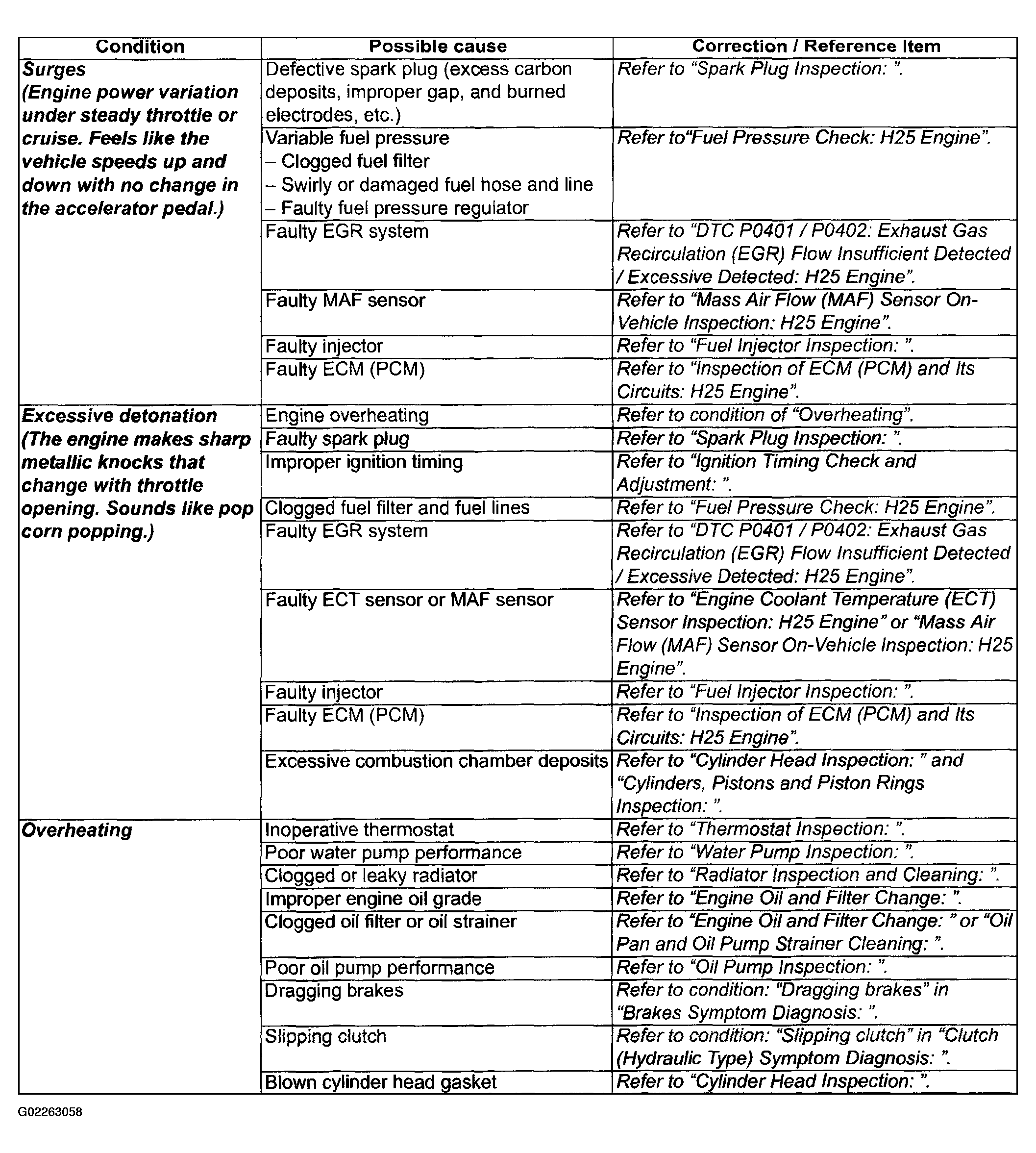

Fig 4: Engine Symptom Diagnosis Chart (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

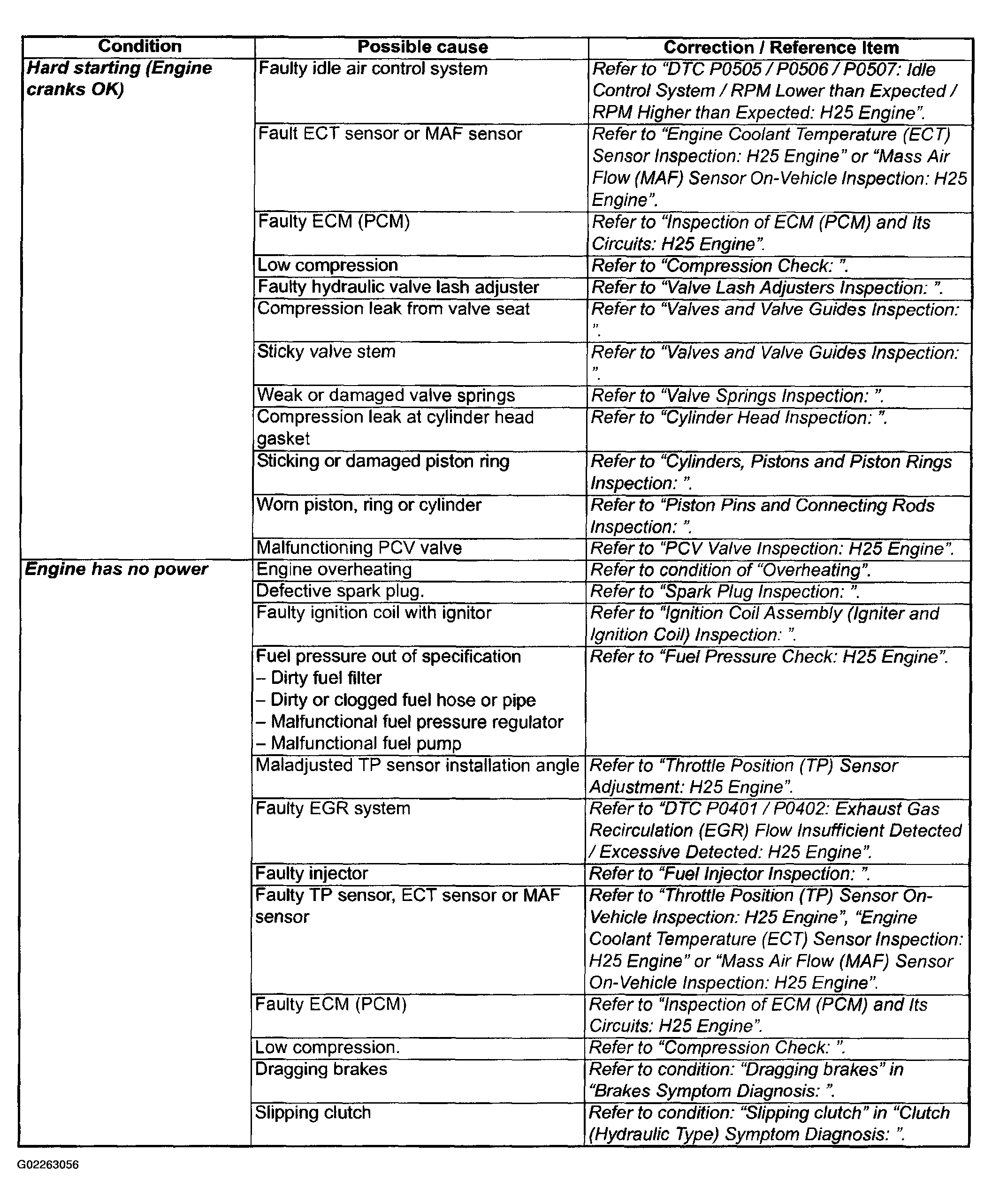

Fig 5: Engine Symptom Diagnosis Chart (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
