SUZUKI Scan Tool Output (MISC) Test Mode Table

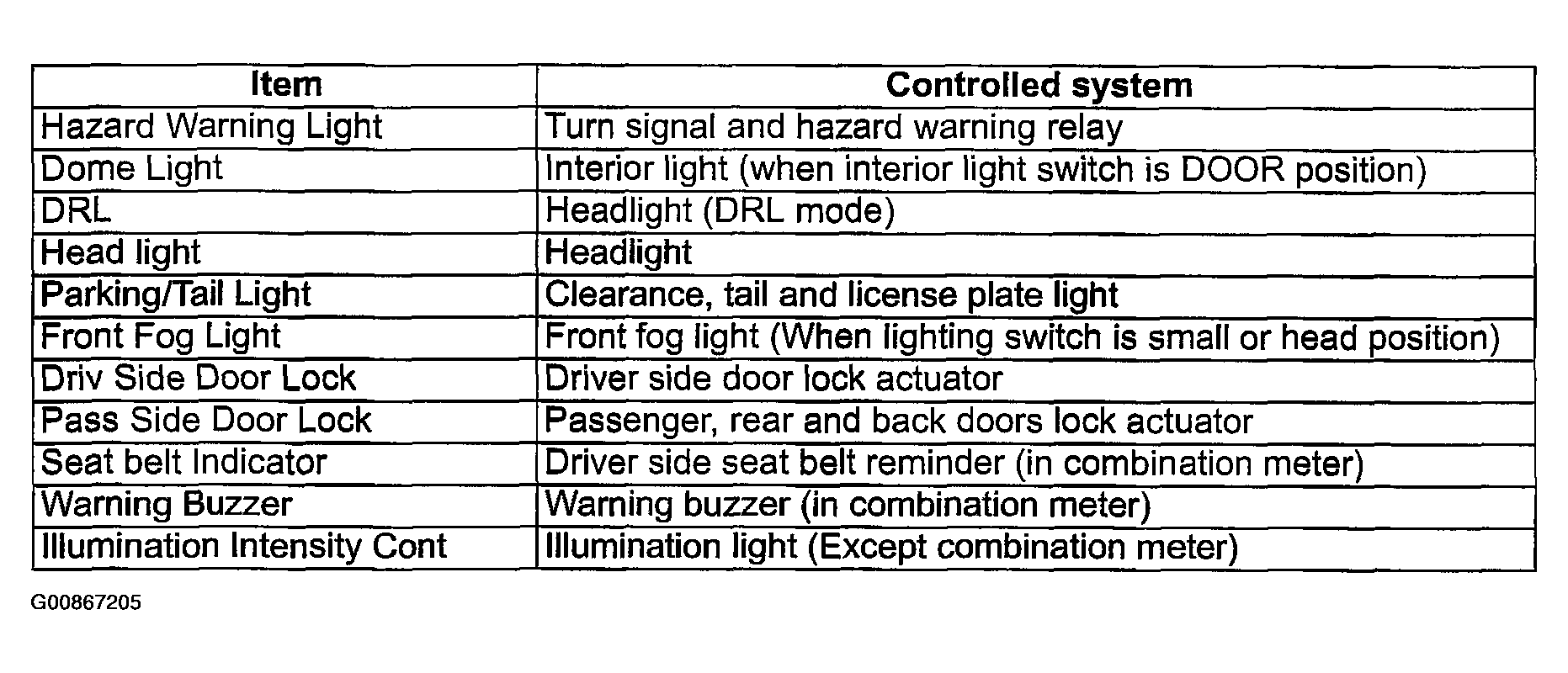

Fig 1: SUZUKI Scan Tool Output (MISC) Test Mode Table
G00867205Courtesy of SUZUKI OF AMERICA CORP.
