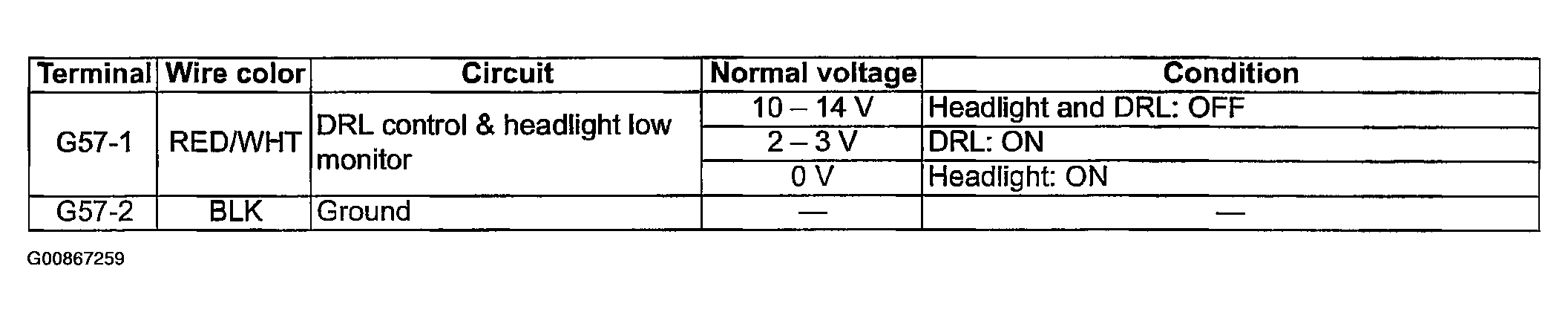

Terminal "G57"

Passenger side or driver side door lock actuator UNLOCK signal (2) with manual unlock switch or door key cylinder unlock switch signal (1)

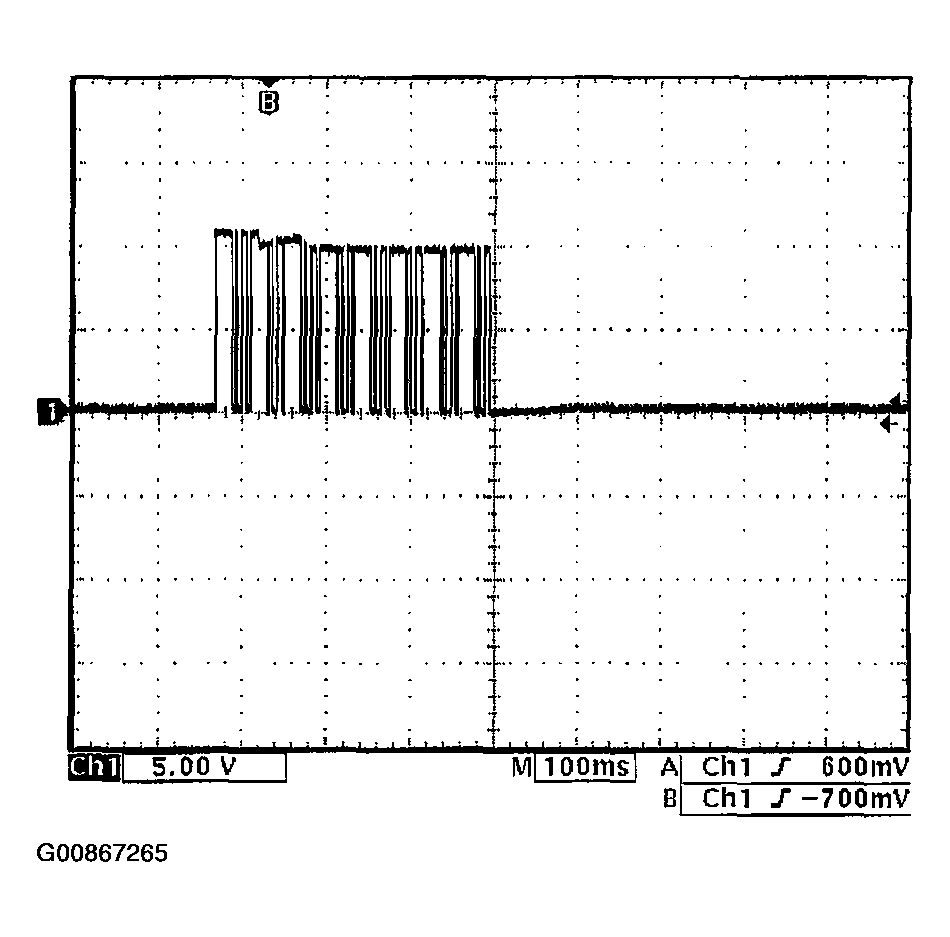

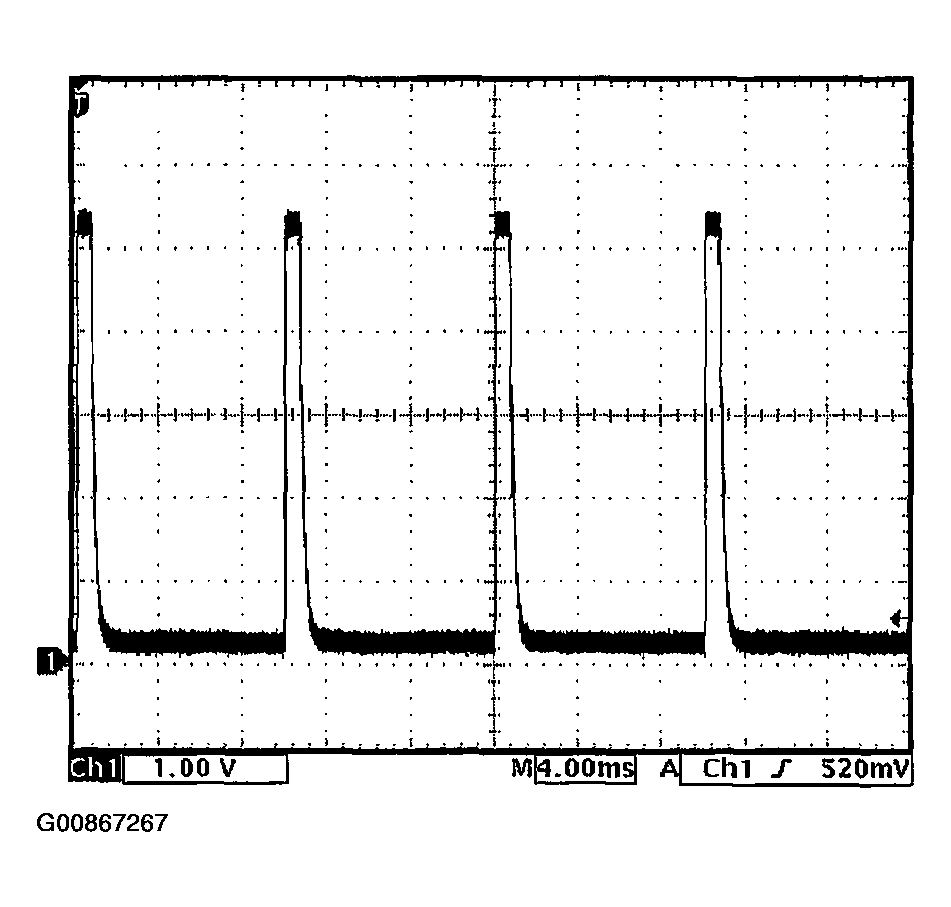

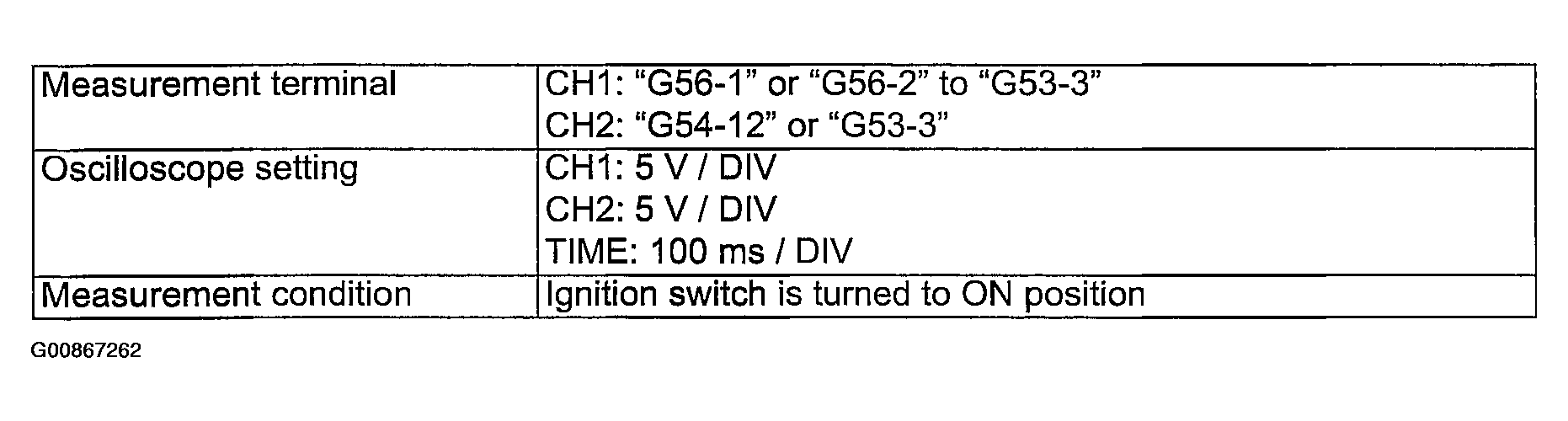

Fig 2: Measuring Reference Waveform No.1 (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

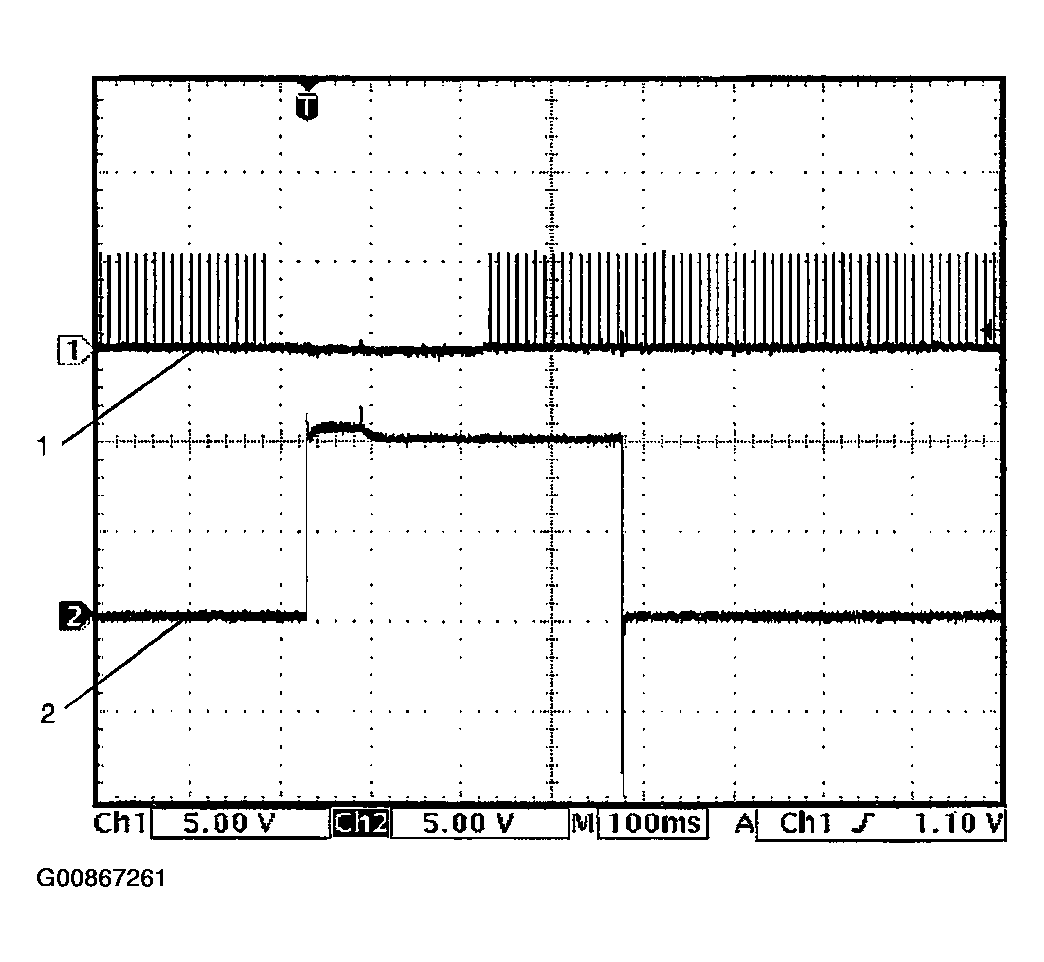

Fig 3: Measuring Reference Waveform No.1 (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Door lock actuator LOCK signal (2) with manual lock switch or door key cylinder lock switch signal (1)

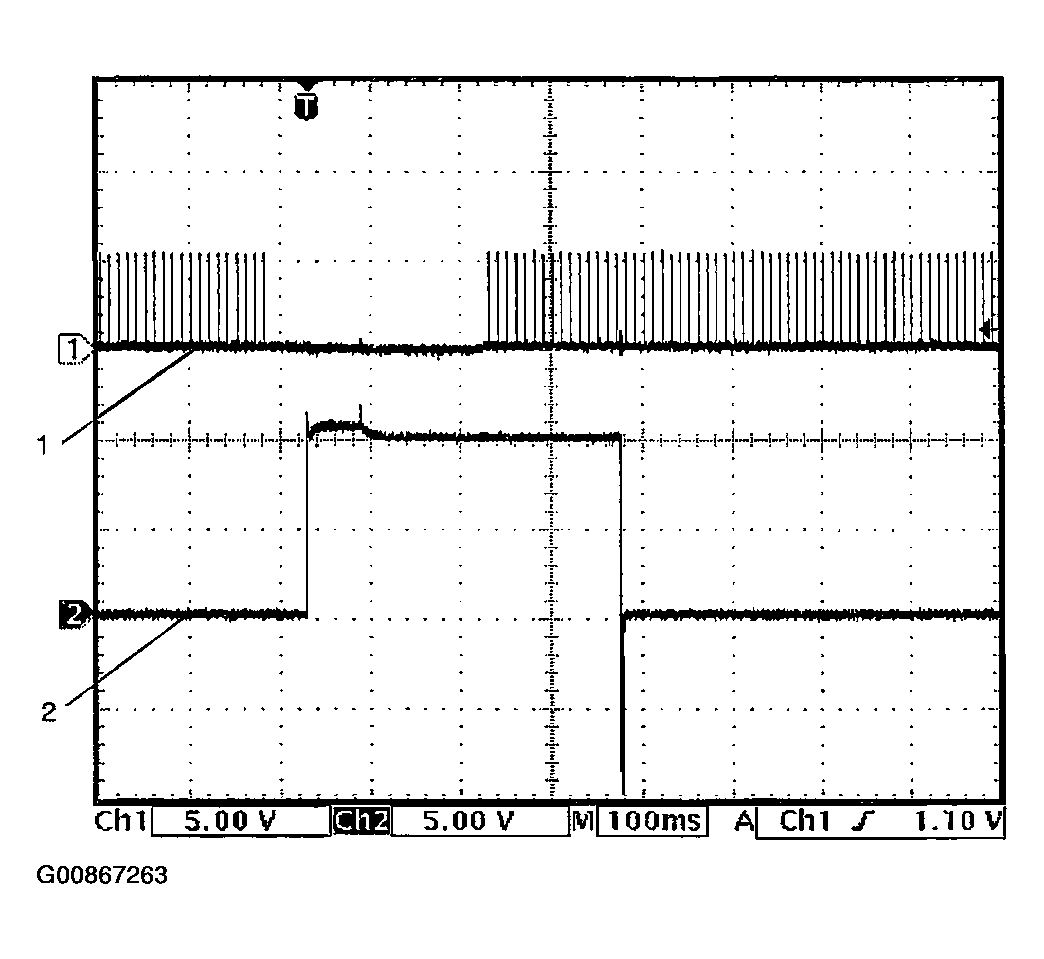

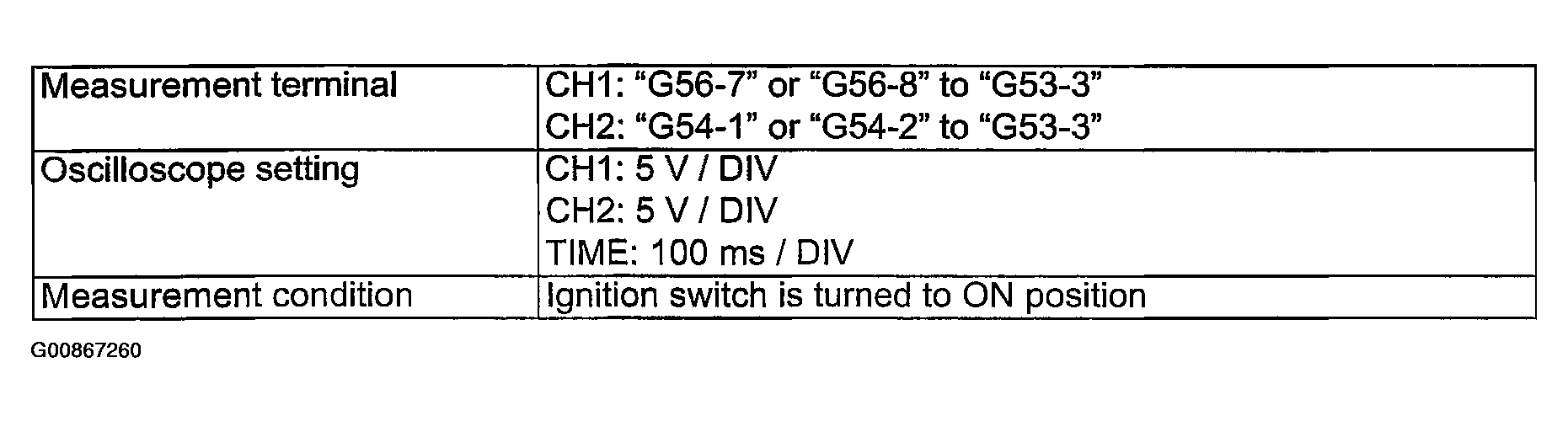

Fig 4: Measuring Reference Waveform No.2 (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Measuring Reference Waveform No.2 (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Keyless entry receiver LOCK/UNLOCK signal

Fig 6: Measuring Reference Waveform No.3 (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

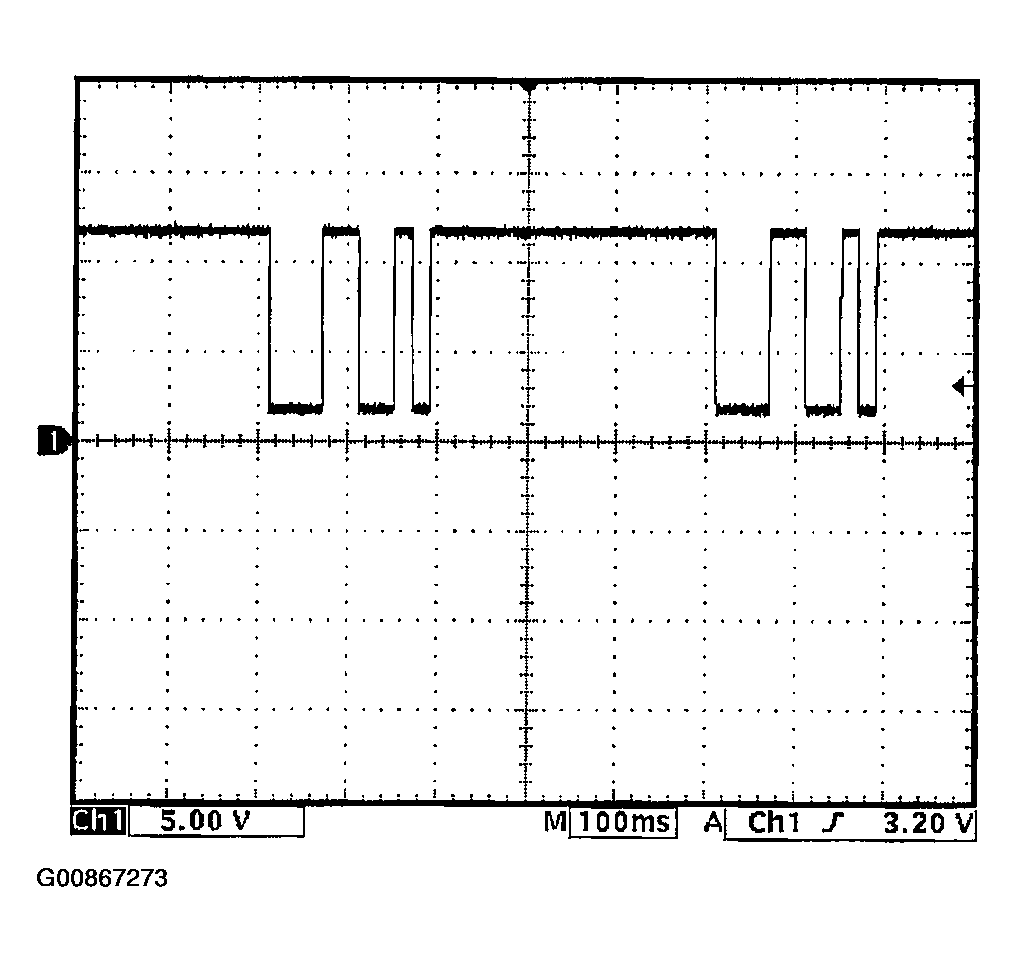

Fig 7: Measuring Reference Waveform No.3 (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Auto-on headlight switch position signal

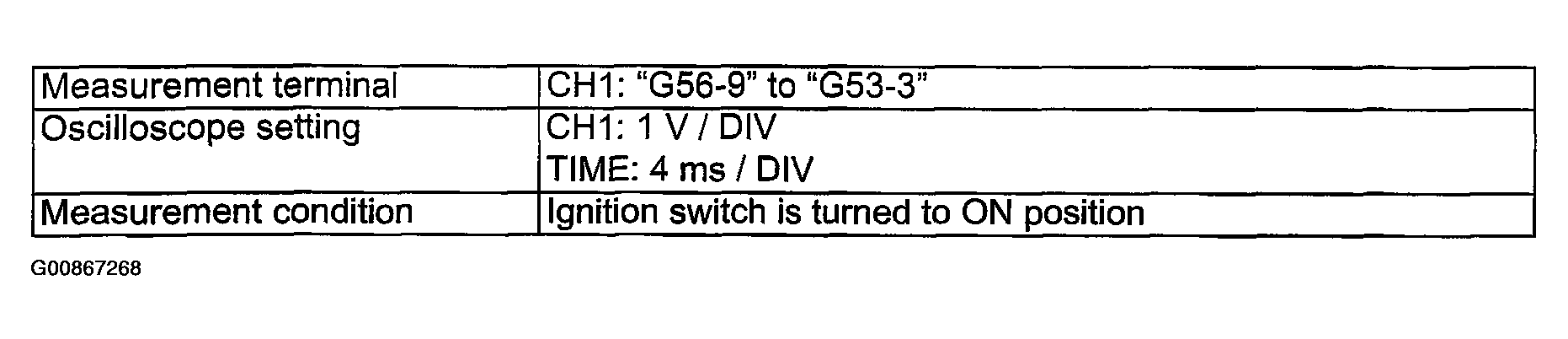

Fig 8: Measuring Reference Waveform No.4 (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

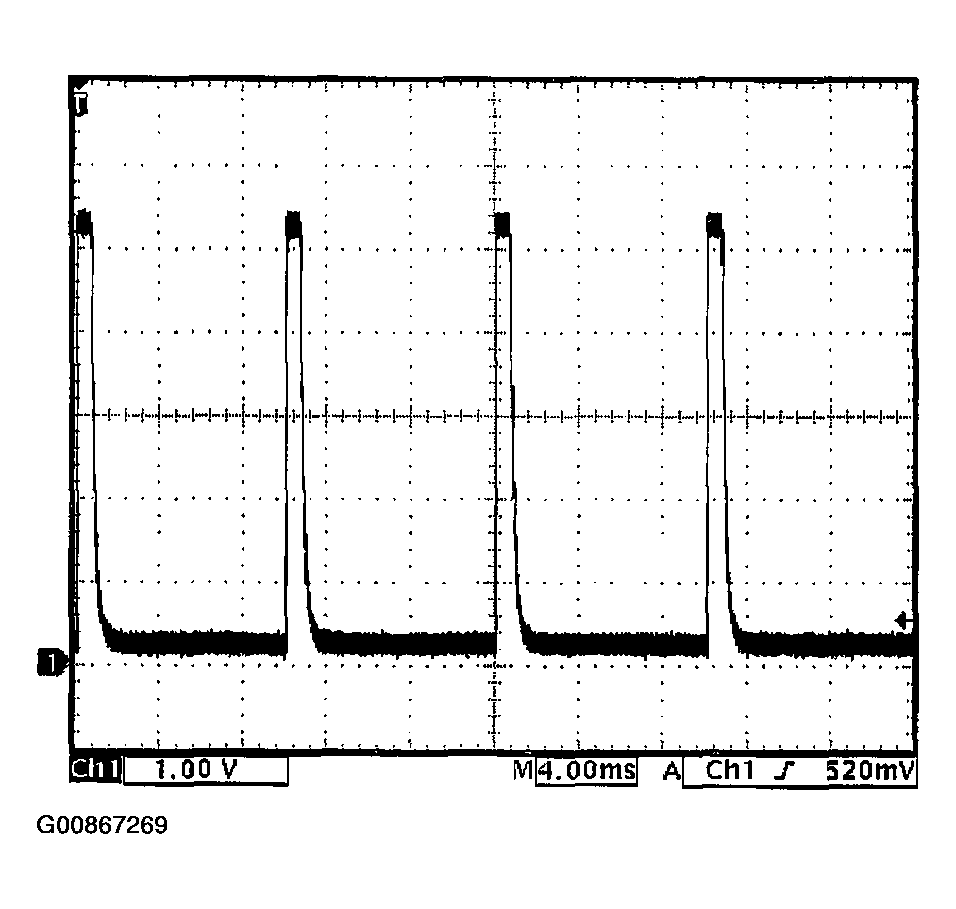

Fig 9: Measuring Reference Waveform No.4 (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Diagnosis switch position signal

Fig 10: Measuring Reference Waveform No.5 (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 11: Measuring Reference Waveform No.5 (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

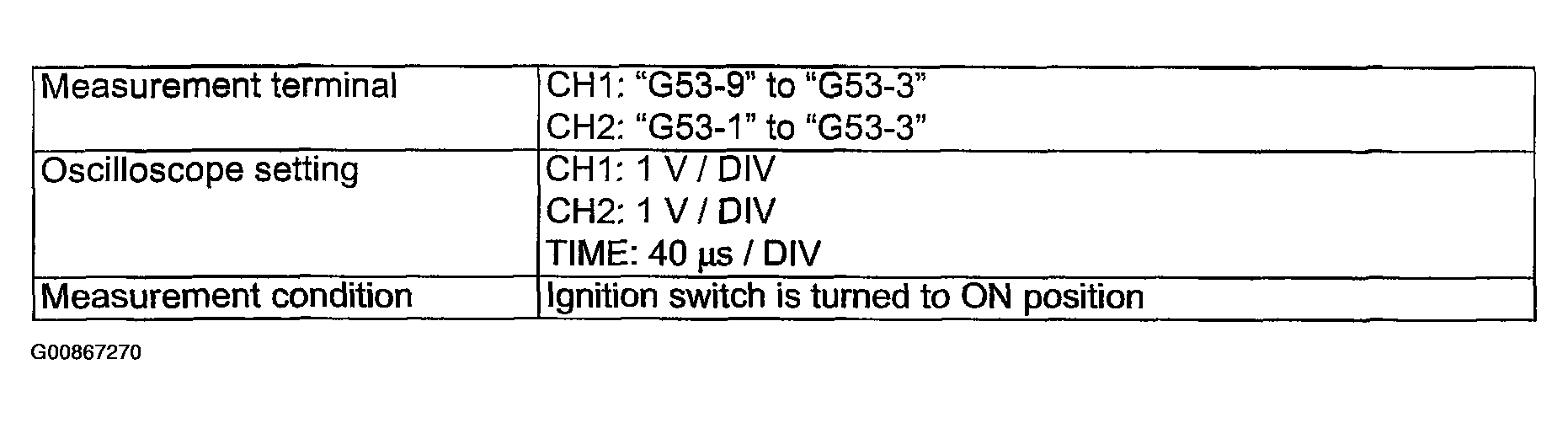

BCM CAN communication line signal

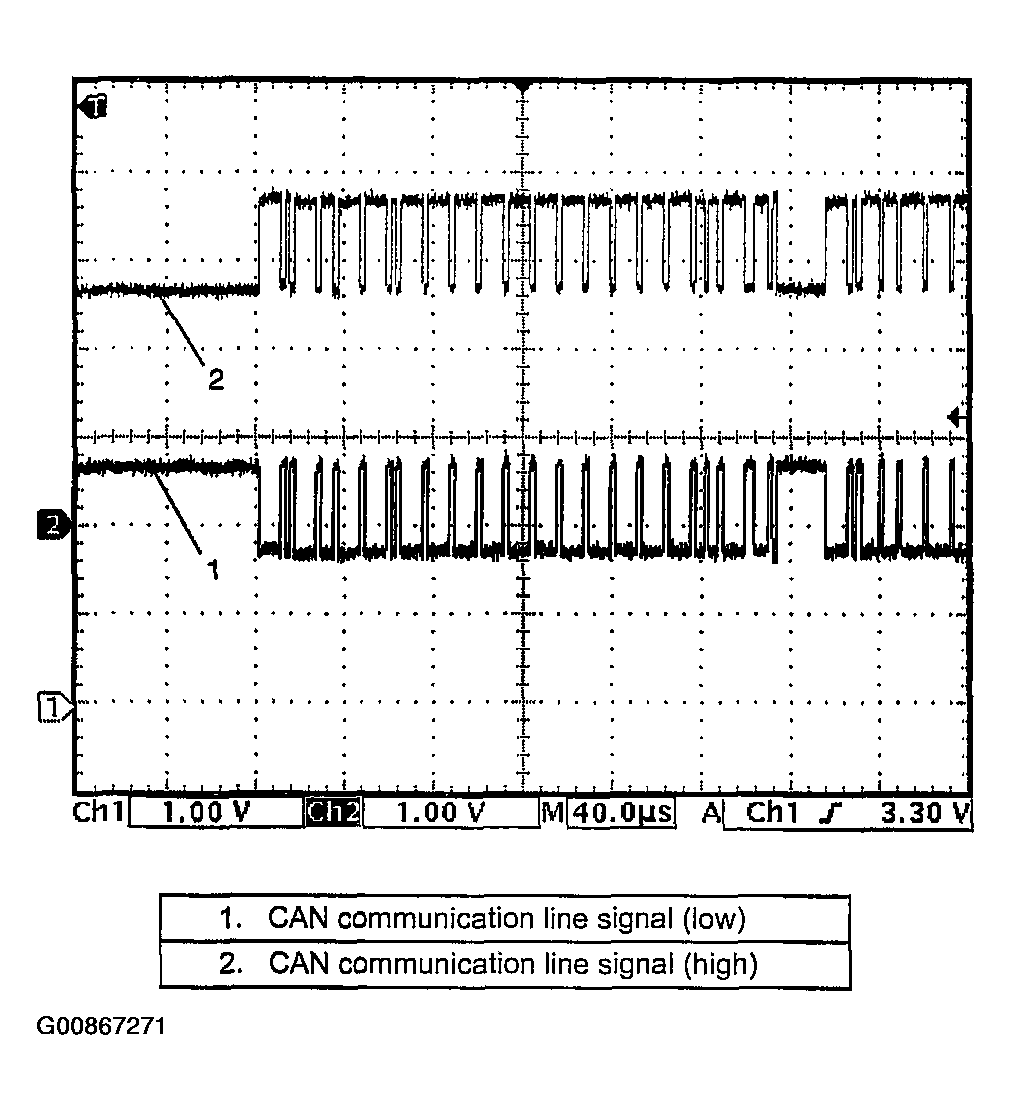

Fig 12: Measuring Reference Waveform No.6 (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 13: Measuring Reference Waveform No.6 (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Air bag communication line signal

Fig 14: Measuring Reference Waveform No.7 (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
