BCM Power Circuit and Ground Circuit Check: Troubleshooting

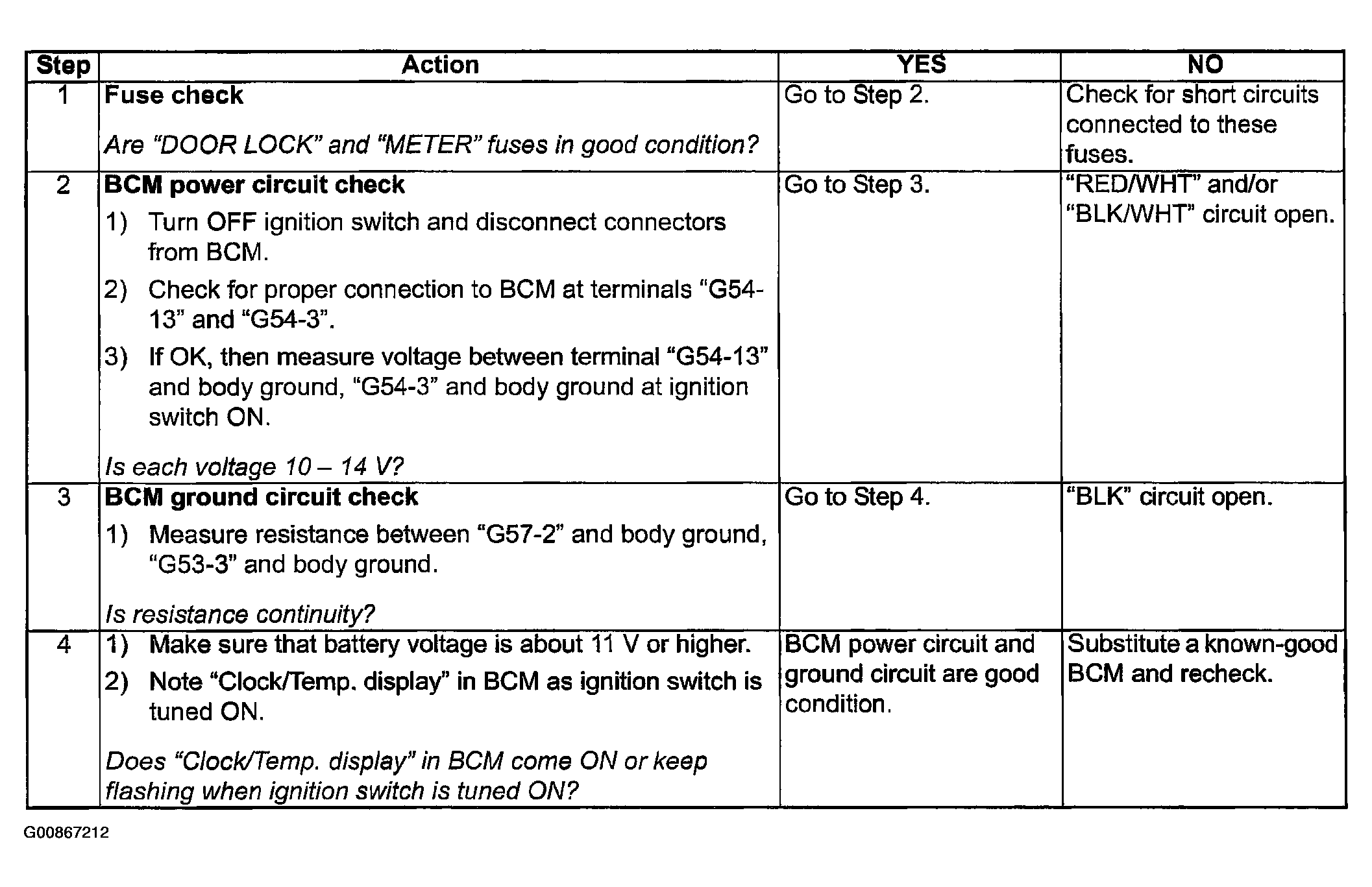

Fig 1: BCM Power Circuit & Ground Circuit Check - Troubleshooting Chart
G00867212Courtesy of SUZUKI OF AMERICA CORP.
