Cruise Control System Wiring Diagram

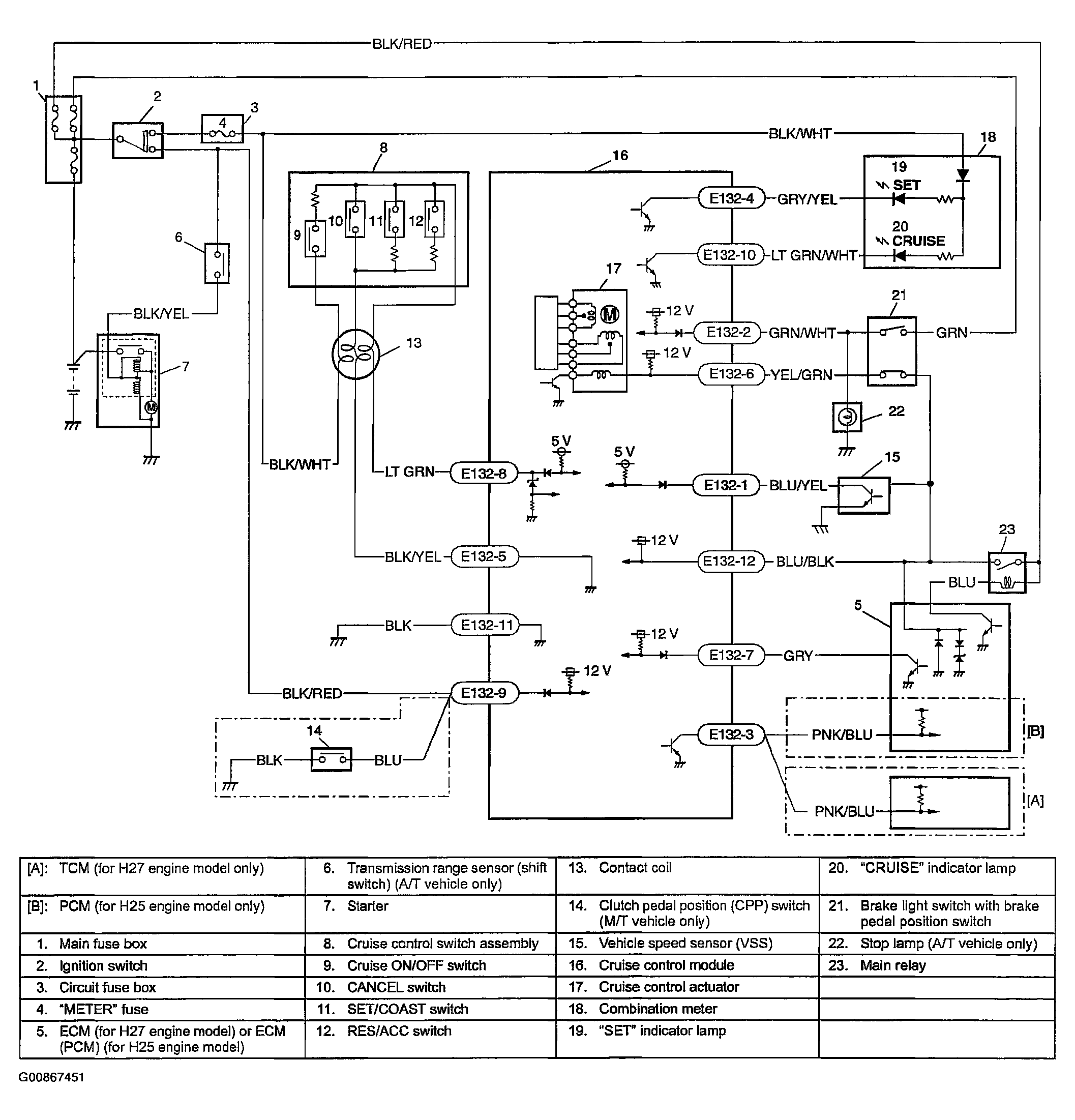

Fig 1: Cruise Control System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.

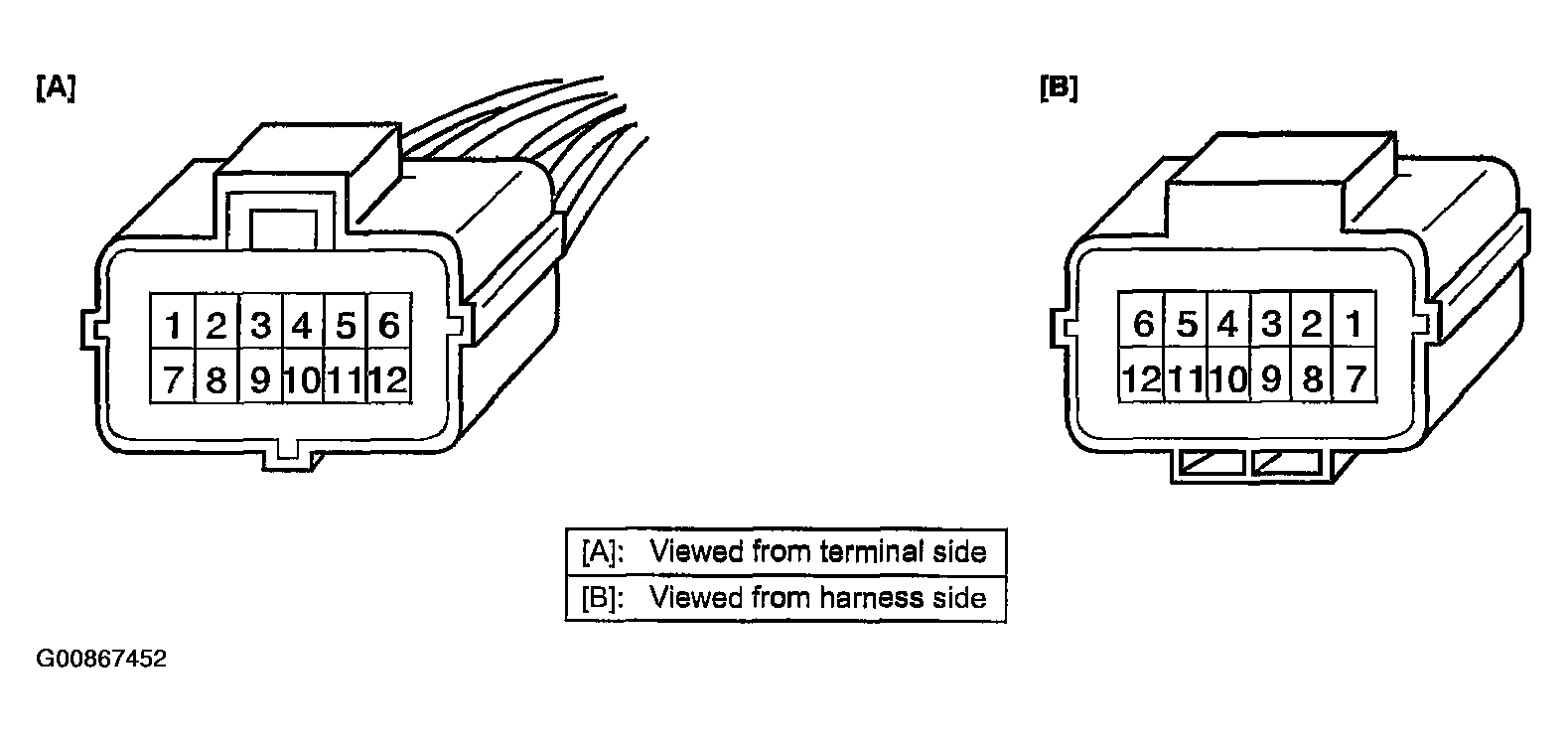

Fig 2: Terminal Arrangement Of Cruise Control Module Connector "E132"
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
