Input Shaft Speed Sensor Removal and Installation: Installation

Check that sensor is free from any metal particles and damage.
Apply A/T fluid to new O-ring and then install input shaft speed sensor (1) to transmission. Tighten sensor bolt to specified torque.
Tightening torque
1. Input shaft speed sensor bolt (a): 5.5 N.m (0.55 kg-m, 4.0 lb-ft)

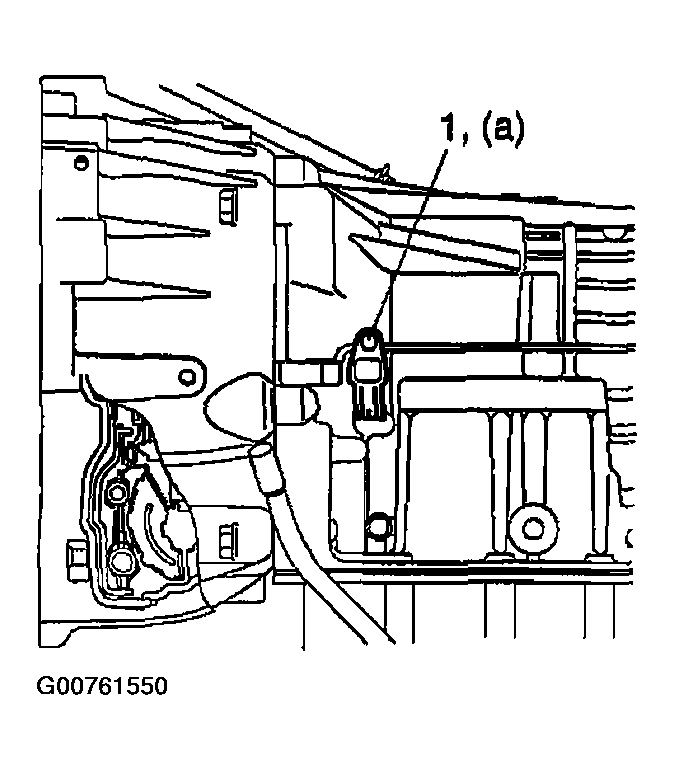

Fig 1: Tightening Sensor Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Connect input shaft speed sensor connector.
Lower hoist.
Connect negative cable at battery.
