Electronic Shift Control System Description

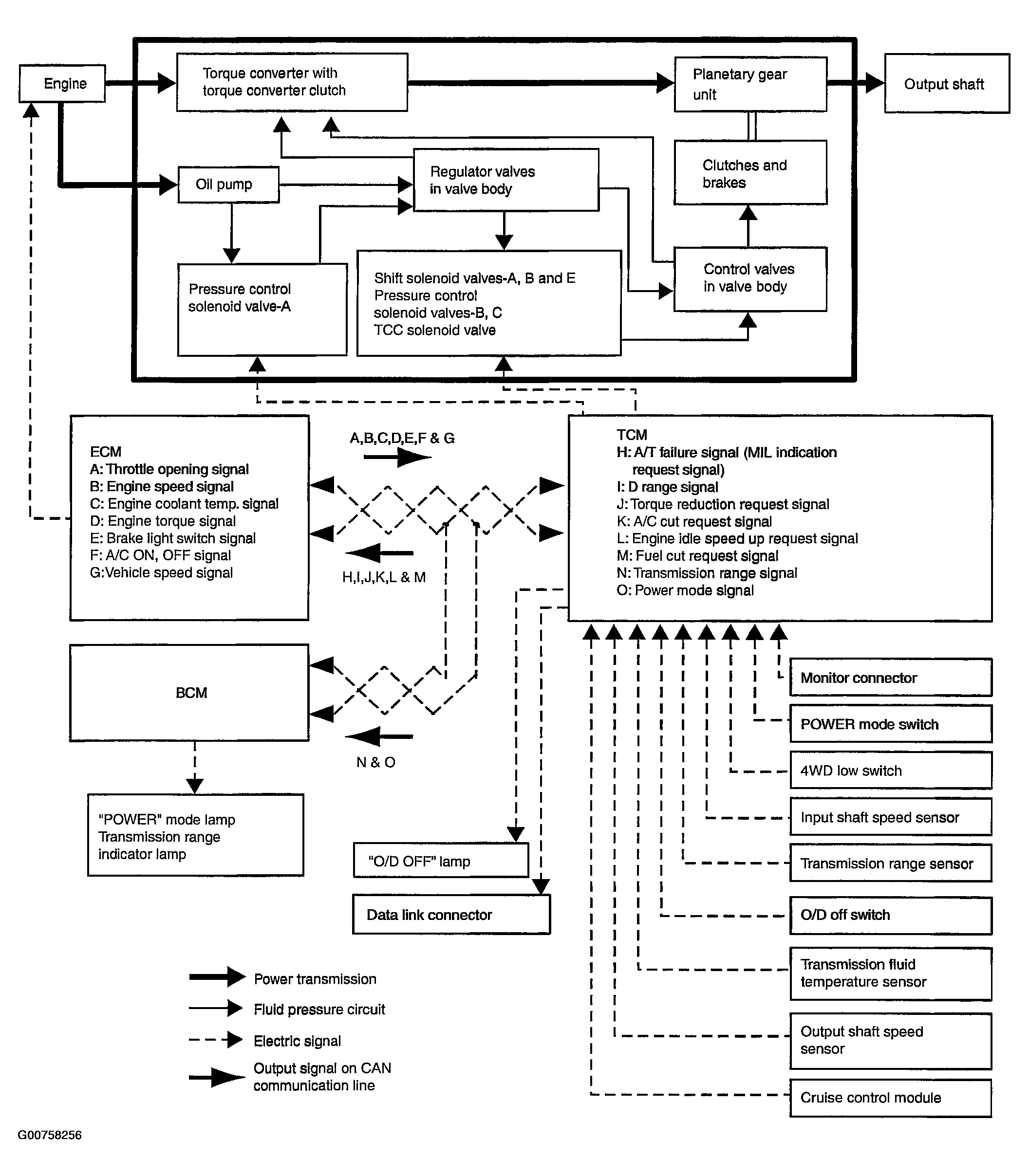

Fig 1: Electronic Shift Control System Description Diagram
G00758256Courtesy of SUZUKI OF AMERICA CORP.

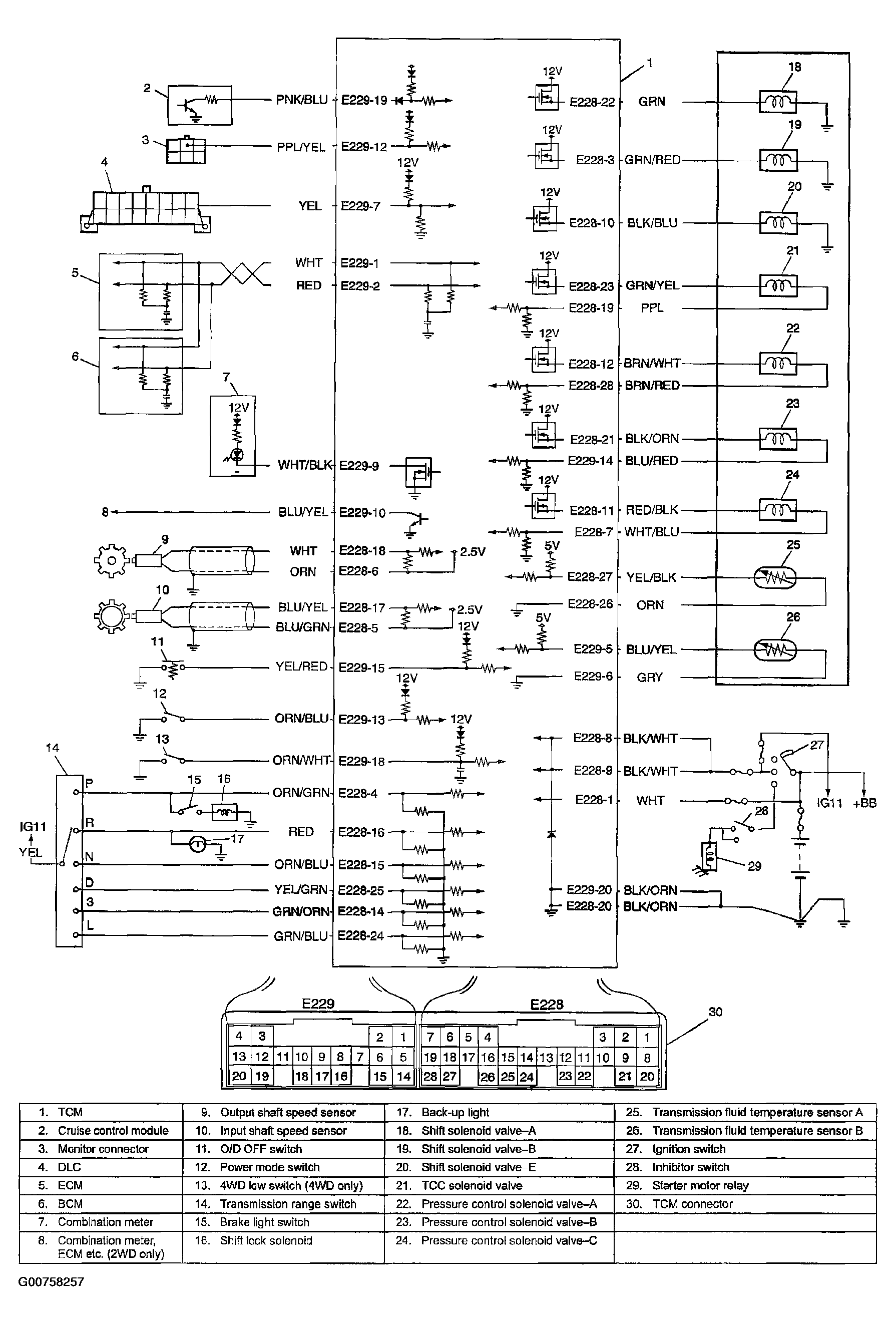

Fig 2: Electronic Shift Control System Wiring Diagram
G00758257Courtesy of SUZUKI OF AMERICA CORP.
